6DR5..0 6DR5..1 6DR5..2 6DR5..3
G¼ 1/4-18 NPT G¼ 1/4-18 NPT
M - 26.5 [1.04] 41.5 [1.53] 40 [1.57]
N - 7.5 7.5 7.5
O 14.5 [0.57] 14.5 [0.57] 14.5 [0.57] 15.5 [0.61]
P > 150 (5.91)
Adhere to this minimum clearance P for service and maintenance above the cover.
Dimensions in mm [inch]
*) Dimensions only apply to double-acting actuators.
6DR5..0 Polycarbonate enclosure; dimensions with pneumatic connection G¼ or 1/4-18 NPT
6DR5..1 Aluminum enclosure, single-acting
6DR5..2 Stainless steel enclosure, without inspection window
6DR5..3 Aluminum enclosure, single/double-acting; dimensions with pneumatic connection
G¼ or 1/4-18 NPT
14.2 Terminal strip for positioner with polycarbonate enclosure

[
*RU
ಯ137
[0
0































* 137




① Thread depth

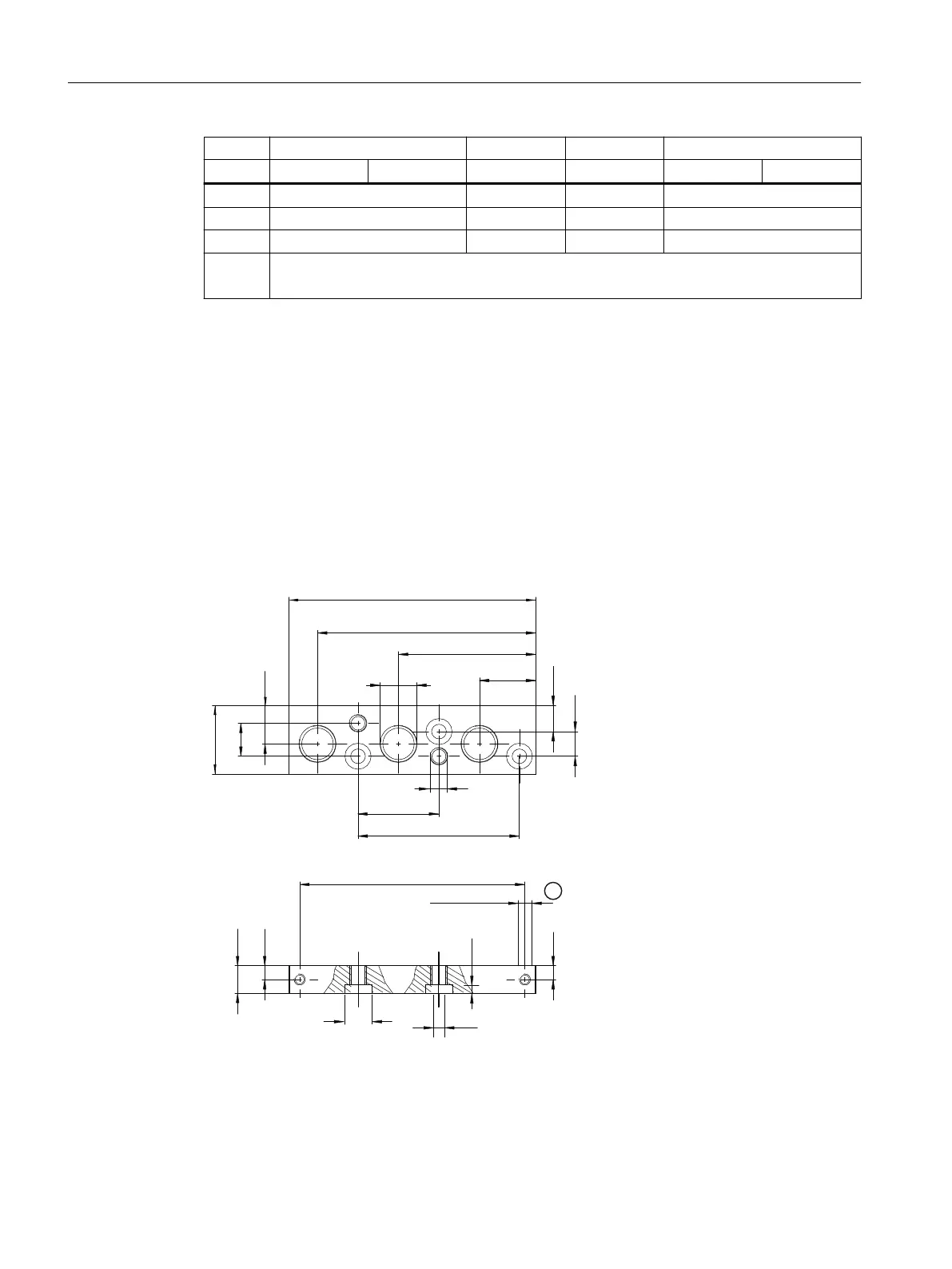

Figure 14-2 Terminal strip, dimensions in mm (inch)
Dimension drawing
14.2 Terminal strip for positioner with polycarbonate enclosure
SIPART PS2 with PROFIBUS PA
296 Operating Instructions, 05/2019, A5E00127926-AC

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
