Result

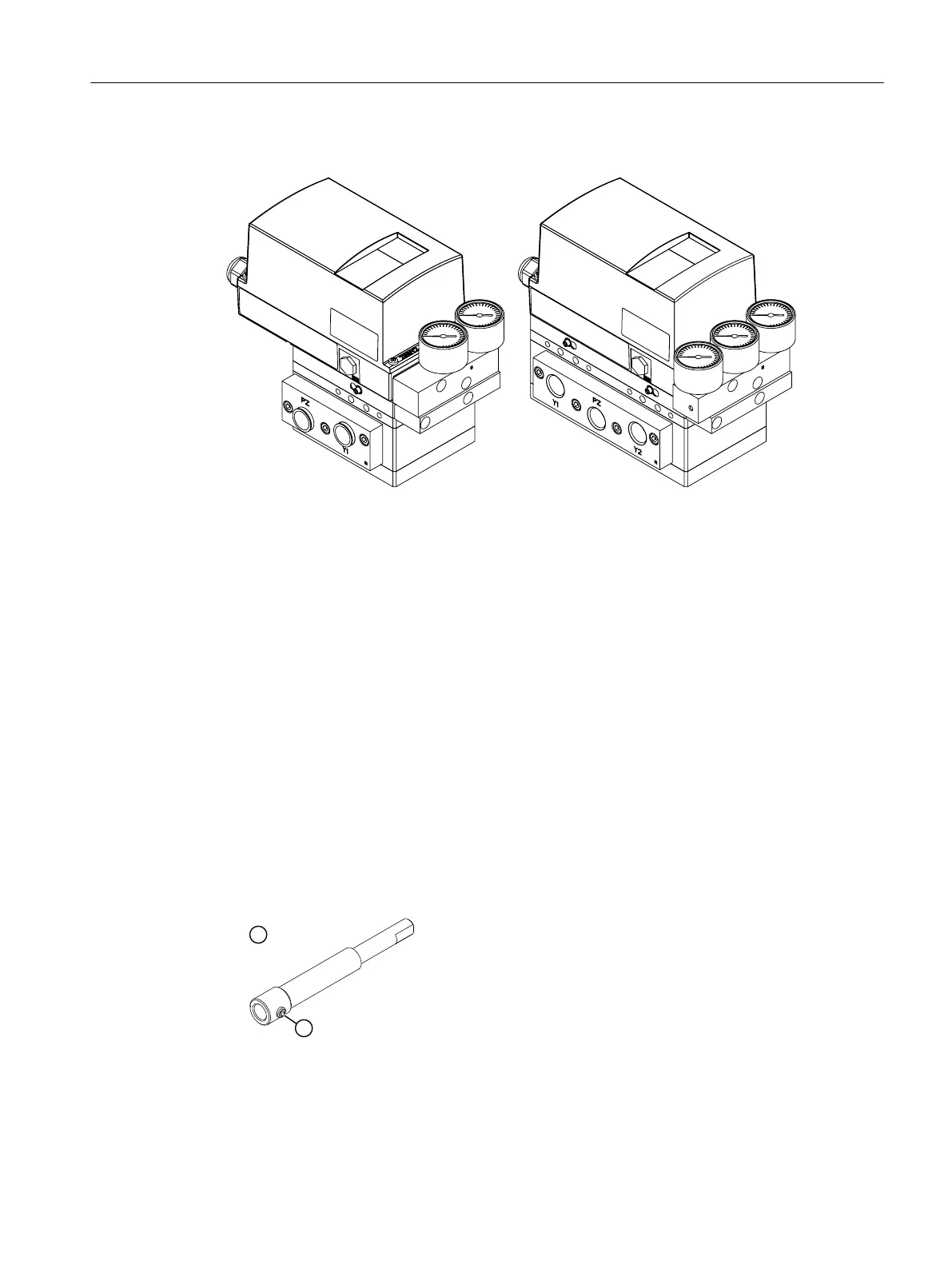

Left: Single-acting positioner with moun‐
ted booster
Right: Double-acting positioner with moun‐
ted booster
E.5 Booster mounting, flameproof enclosure
Requirements
1. You are familiar with the safety instructions in section "Installing and mounting (Page 39)".
2. You have one of the following boosters:
– With single-acting positioners, booster with the article number 6DR4004-1RJ or -1RK
– With double-acting positioners booster with the article number 6DR4004-2RJ or -2RK
A. Mount extension shaft and booster
Using the example of a single-acting positioner in a flameproof enclosure (Ex d)
1. Remove the extension shaft ① from the booster mounting kit.


2. Lower the extension shaft ① completely into the positioner.
Booster
E.5 Booster mounting, flameproof enclosure
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 341

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
