E.4 Mounting booster, without flameproof enclosure
Requirements
1. You are familiar with the safety instructions in section "Installing and mounting".
2. You have one of the following boosters:
– With single-acting positioners, booster with the article number 6DR4004-1RJ or -1RK
– With double-acting positioners booster with the article number 6DR4004-2RJ or -2RK

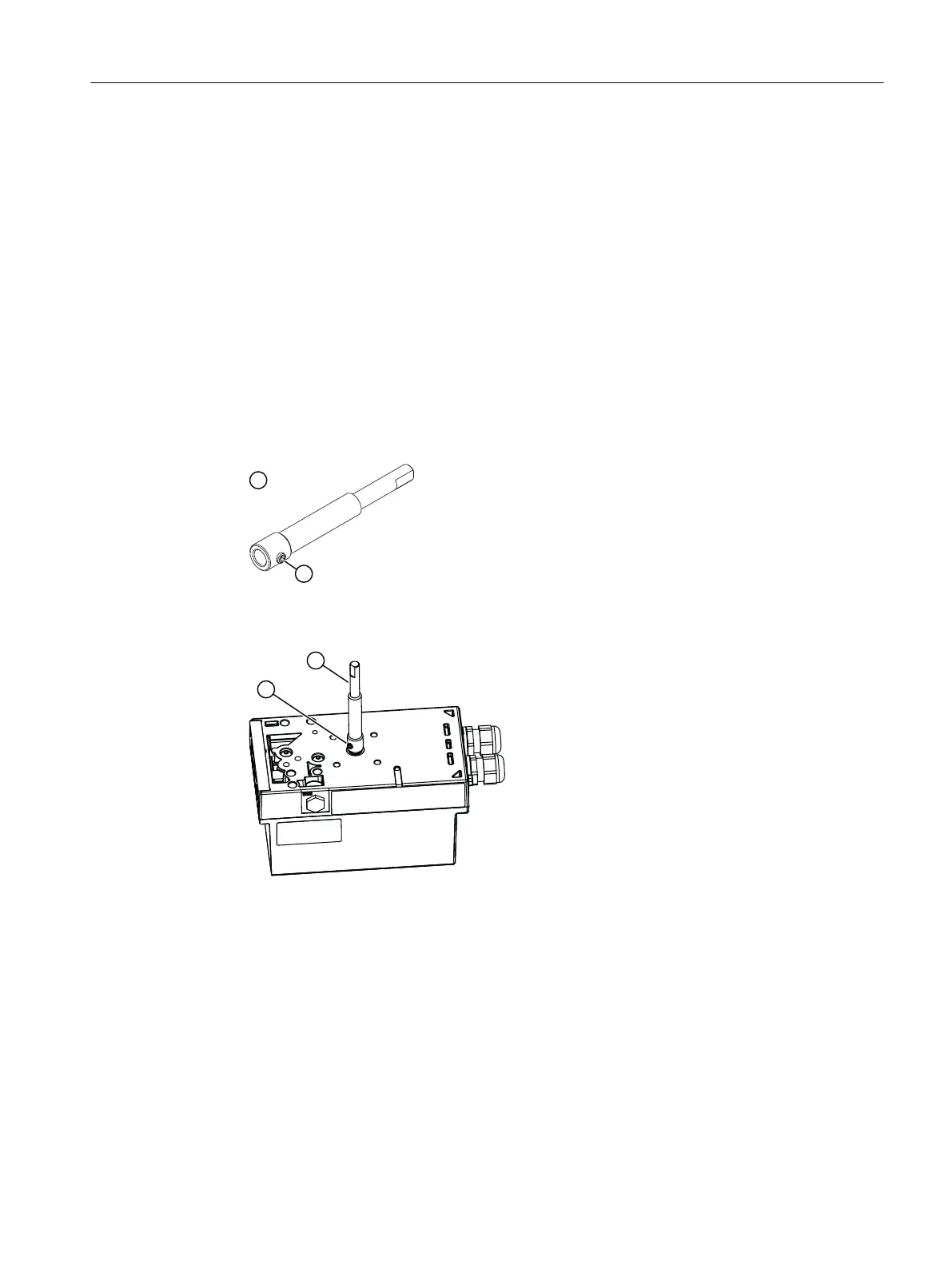

A. Mount extension shaft and booster
Using the example of a single-acting positioner
1. Remove the extension shaft ① from the booster mounting kit.


2. Lower the extension shaft ① completely into the positioner.
3. Tighten the locking screw ② at the flat end of the positioner shaft.


4. Check that the extension shaft ① sits properly.
5. Screw the 4 threaded bolts ③ with the short end of the thread into the positioner.
Booster
E.4 Mounting booster, without flameproof enclosure
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 337

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
