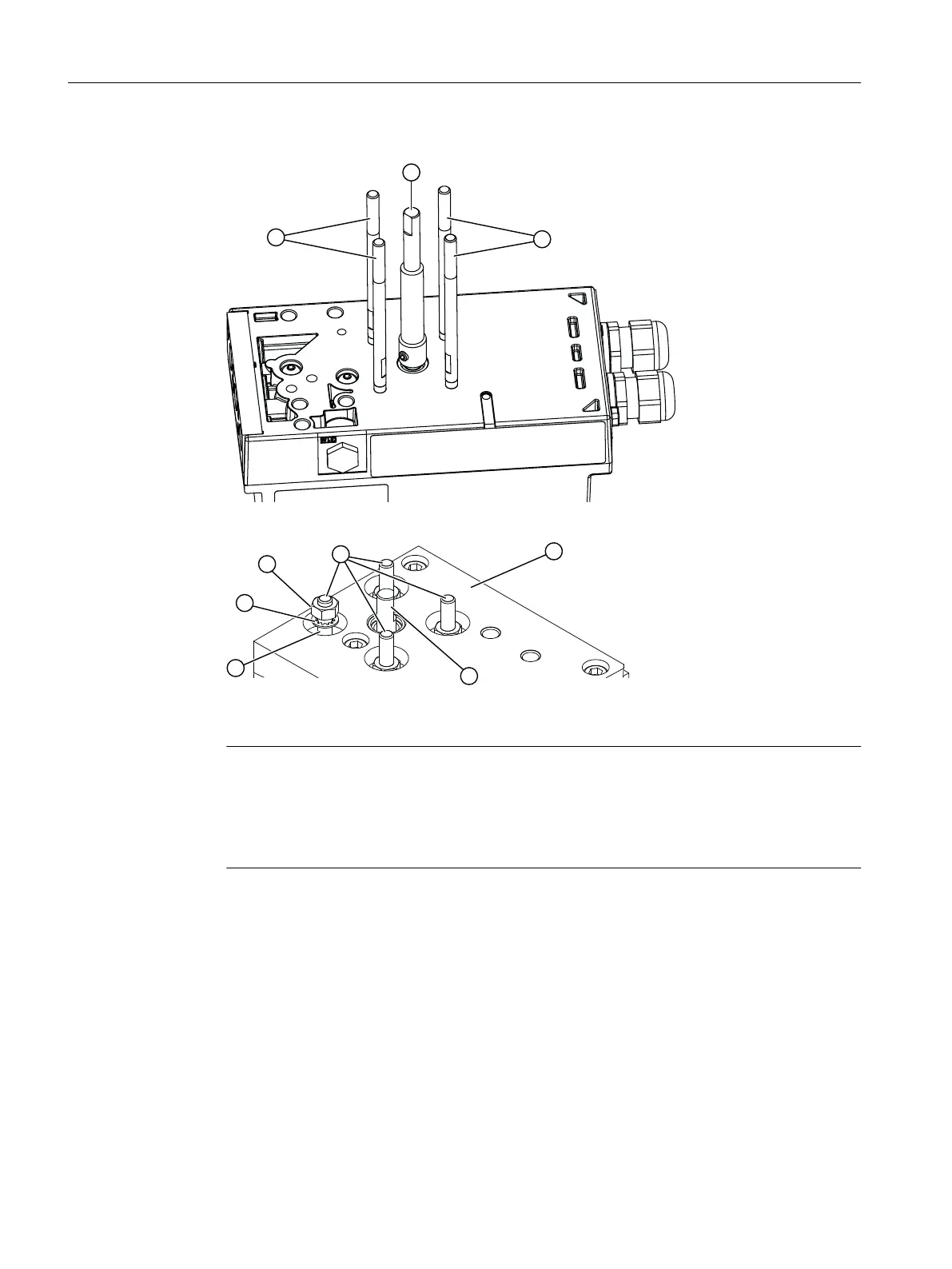

6. Tighten the threaded bolts ③ around the extension shaft ①.



7. Insert the booster ⑭ via the threaded bolts ③.






8. Fasten the booster ⑭ to the 4 threaded bolts ③ with the lock washers ④ and nuts ⑤.
The extension shaft ① can still be rotated manually.
Note
If the extension shaft ① is no longer rotatable
1. Loosen the nuts ⑤.
2. Bring the booster ⑭ in position by turning the extension shaft ①.
3. Tighten the nuts ⑤ again.
Booster
E.4 Mounting booster, without flameproof enclosure
SIPART PS2 with PROFIBUS PA
338 Operating Instructions, 05/2019, A5E00127926-AC

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
