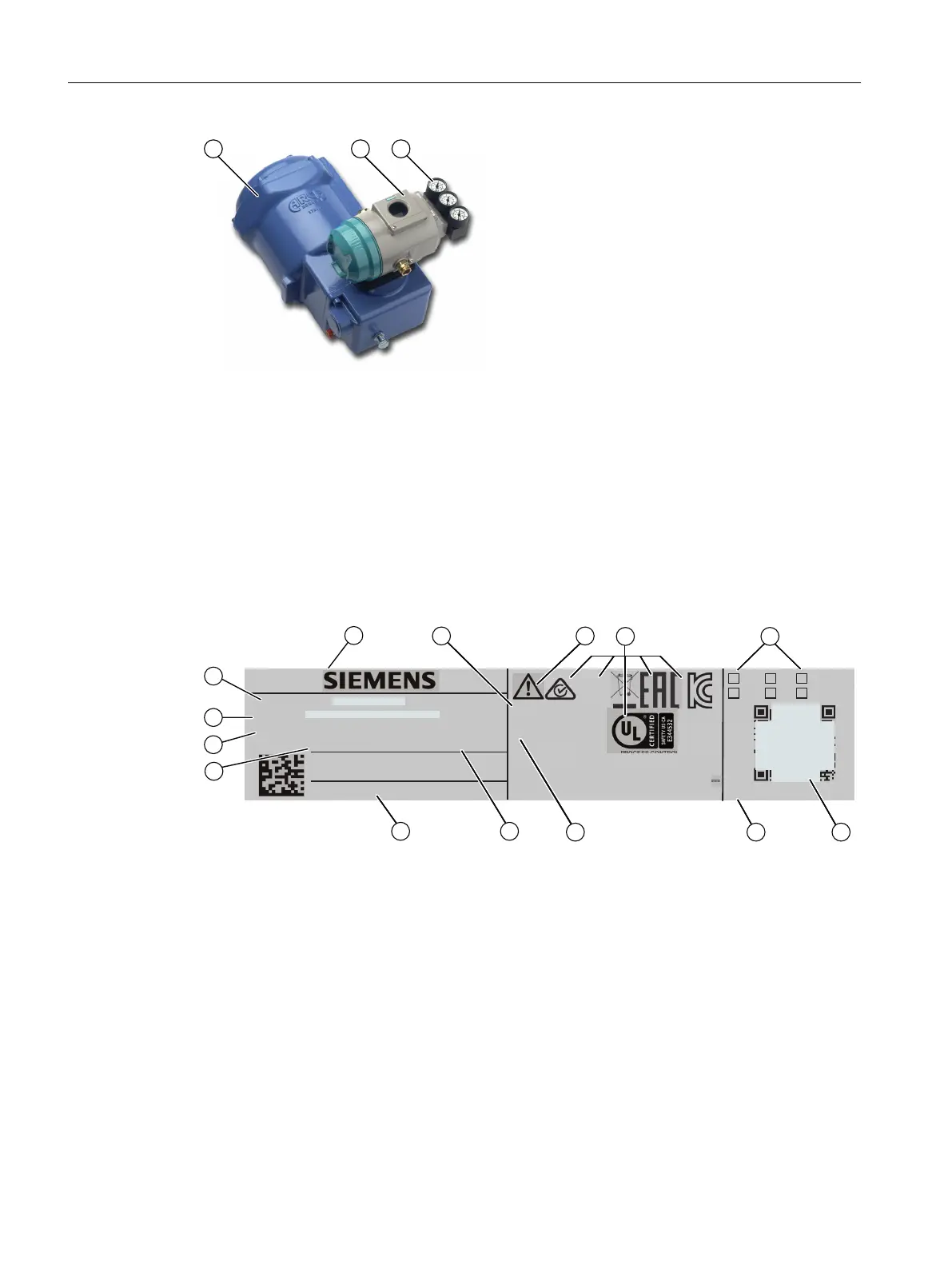

① Part-turn actuator
② Double-acting positioner in flameproof aluminum enclosure
③ Pressure gauge block, double-acting
Figure 3-4 Positioner in flameproof aluminum enclosure attached to part-turn actuator
3.2.2 Nameplate layout
Example of manufacturer nameplate
-
Siemens AG, DE-76181 Karlsruhe
www.siemens.com/sipartps2
KCC-REM-S49
SIPART PS2
MADE IN FRANCE
-
-
IP66 / Type 4X
6 D R 5 0 2 1 - 0 K * 0 2 - 0 A A 0
-
<SW: x.xx.xx(2)>
-
NCS
-
Iw=4…20mA
-Z S10;S11;S12;S13;S14;S15;S16
-
p = 1.4 … 7 bar
SIPART PS2 i/p Positioner
-
Imax=100mA
-
-
-
PROCESS CONTROL
EQUIPMENT
Umax=35VDC
<HW: x.xx.xx(2)>
-
-
S/N:
N1A6101234567
ILS MLS
AOM
-
AIM
-
X
DIO
-
8DX[ 9












① Manufacturer ⑧ Auxiliary power (supply air PZ)
② Degree of protection ⑨ Software version and hardware version
③ Observe the operating instructions ⑩ Country of origin
④ Conformity with country-specific directives ⑪ Supply voltage
⑤ Built-in option modules ⑫ Ordering supplement (Order code)
⑥ QR code to the mobile website with device-spe‐
cific product information
⑬ Article number
⑦ Serial number ⑭ Product name
Description
3.2 Structure
SIPART PS2 with PROFIBUS PA
