Siemens SIPART PS2 User Manual

B.2.3 Connecting NCS to EMC filter module
Requirement
You need the EMC filter module, article number 6DR4004-6F or -8F for the electrical
connection of the accessory part "NCS sensor for contactless position measurement" to the
positioner. The positioner supplies auxiliary power to the NCS sensor via the EMC filter module.

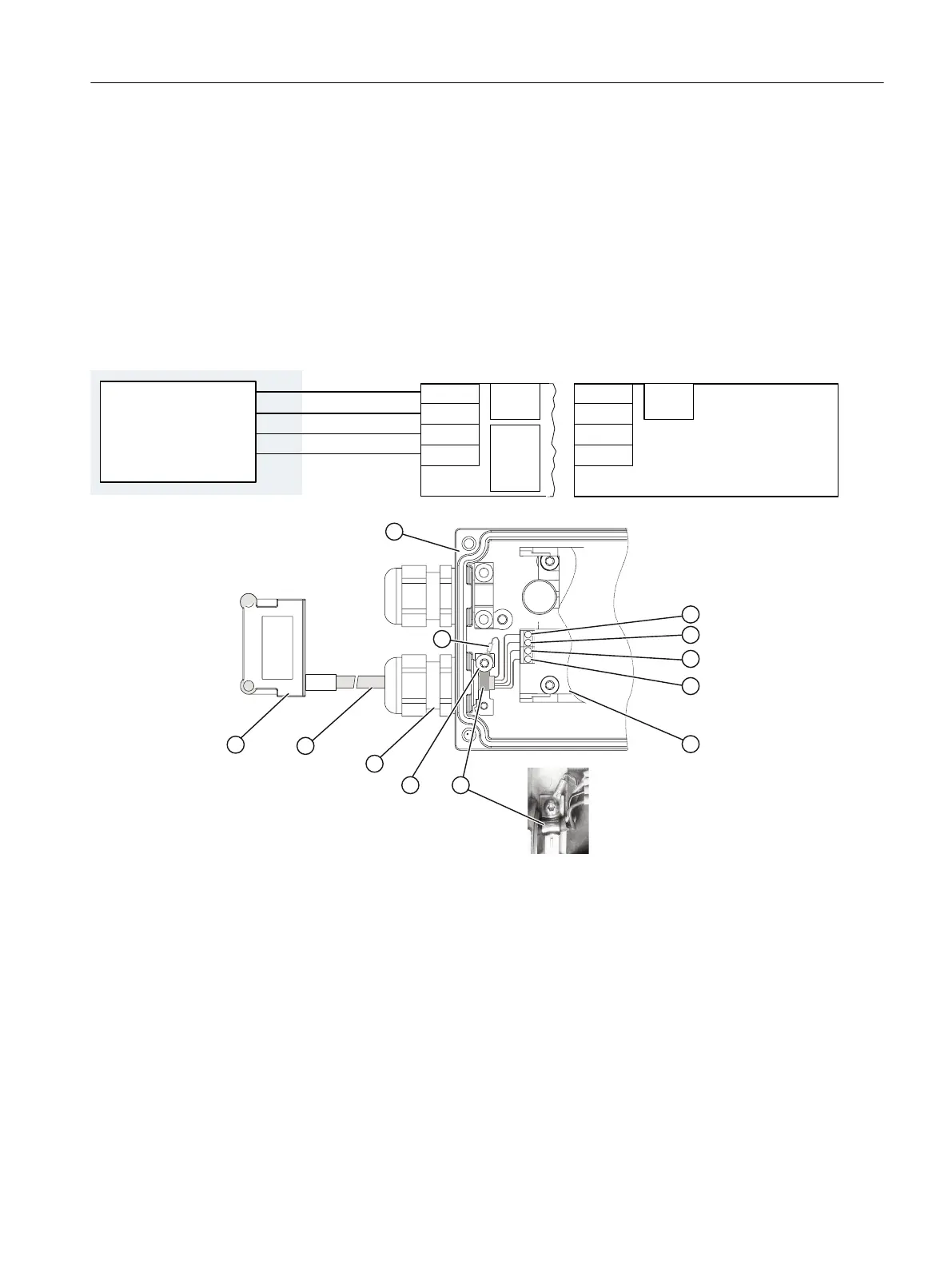

Wiring diagram
;

;

*UHHQ
%ODFN
%URZQ
<HOORZ
([WHUQDOSRVLWLRQ
GHWHFWLRQV\VWHPV
'5)Q(['5)([
(0&ILOWHU
$QDORJ,QSXW0RGXOH
$,0
6
6
21
5HI
3RV
*1'
9FF
21
21
6
6
6
6
6
6
5HI
3RV
*1'
9FF
1&6'51
















Positioner (open state) ⑦ Cable clamp
② Terminal Ref: Green ⑧ Screw F3x8
③ Terminal Pos: Black ⑨ Cable gland
④ Terminal GND: Brown ⑩ Four-pole NCS cable
⑤ Terminal Vcc: Yellow ⑪ Non Contacting Sensor (NCS)
⑥ EMC filter module ⑫ Cable shielding lug
Figure B-7 Example of connecting the NCS to the EMC filter module
External position detection
B.2 Non-Contacting Sensor
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 319
