Dimension drawing
14
14.1 Positioner in non-flameproof enclosure
0
GHHS[
0
GHHS[
0
GHHS
[0
F
<
<
3=
G
B
D
H
C
J
K L
N
O
<
E
M
A
P
① M20 x 1.5 or NPT adapter

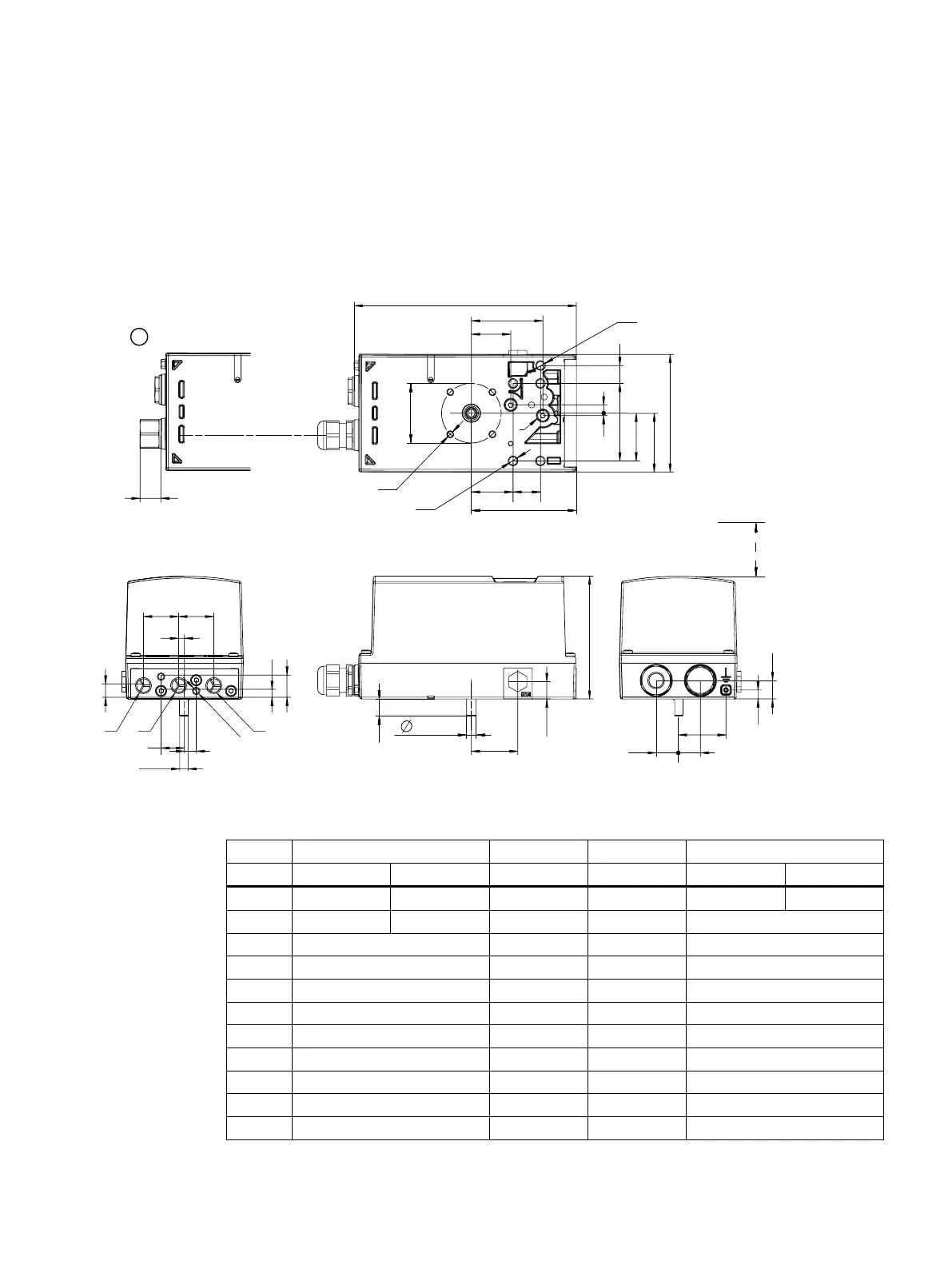

Figure 14-1 Dimension drawing, dimensions in mm (inch)
6DR5..0 6DR5..1 6DR5..2 6DR5..3
G¼ 1/4-18 NPT G¼ 1/4-18 NPT
A 184.5 [7.26] 186.5 [7.34] 185 [7.28] 186.5 [7.34] 186.5 [7.34] 188.5 [7.42]
B - - - - 15 [0.59]
C 95 [3.74] 84 [3.31] 99 [3.90] 98.6 [3.88]
D 47.5 [1.87] 49.5 [1.95] 49.5 [1.95] 49.3 [1.94]
E 88.5 [3.48] 88.8 [3.50] 88.5 [3.48] 88.8 [3.50]
F
*)
29.5 [1.16] - 29.5 [1.16] 29.5 [1.16]
G 39 [1.54] 44 [1.73] 39 [1.54] 39 [1.54]
H 14.5 [0.57] 16 [0.63] 16 [0.63] 14.5 [0.57]
J 96.6 [3.80] 96.6 [3.80] 98.5 [3.88] 103 [4.06]
K 18.5 [0.73] 22 [0.87] 18.5 [0.73] 18.5 [0.73]
L 18.5 [0.73] 7 [0.23] 18.5 [0.73] 18.5 [0.73]
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 295
