Siemens SIPART PS2 User Manual

Positioner with remote control electronics
F
F.1 Introduction
The control electronics is installed remotely with this version of the positioner. This remote
control electronics allows the valves to be controlled in radiation contaminated environment, as
all highly integrated electronic components are located in the area that is protected from
radiation. Highly integrated electronic components are, for example, memory blocks and
microprocessor blocks.

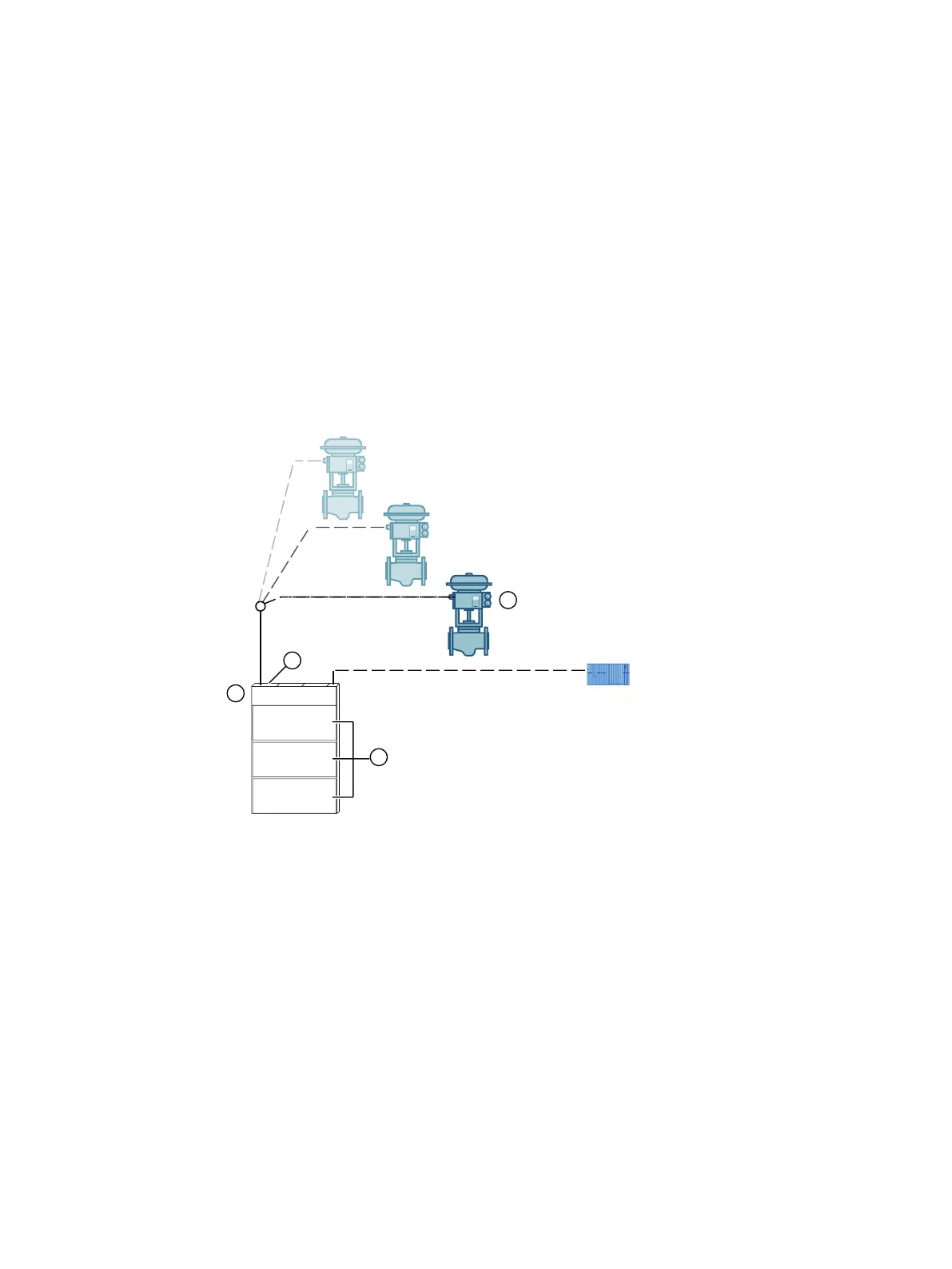

For the above described deployment you require:




① 19" slide-in module (Page 352)
Order the 19" slide-in module according to the number of required PA modules ③:
● Article No. A5E00250501 for a 19" slide-in module with 1 PA module
● Article No. A5E00250502 for a 19" slide-in module with 2 PA modules
● Article No. A5E00250503 for a 19" slide-in module with 3 PA modules
Each PA module comes with a QRL module ④ whose connectors are used for connecting one
or more positioners ② with the 19" slide-in module ①.
② Positioner without basic electronics 6DR5910-... (Page 359)
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 351

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
