F.2 19" slide-in module
F.2.1 Commissioning positioner 6DR5910-... and 19" slide-in module
Procedure

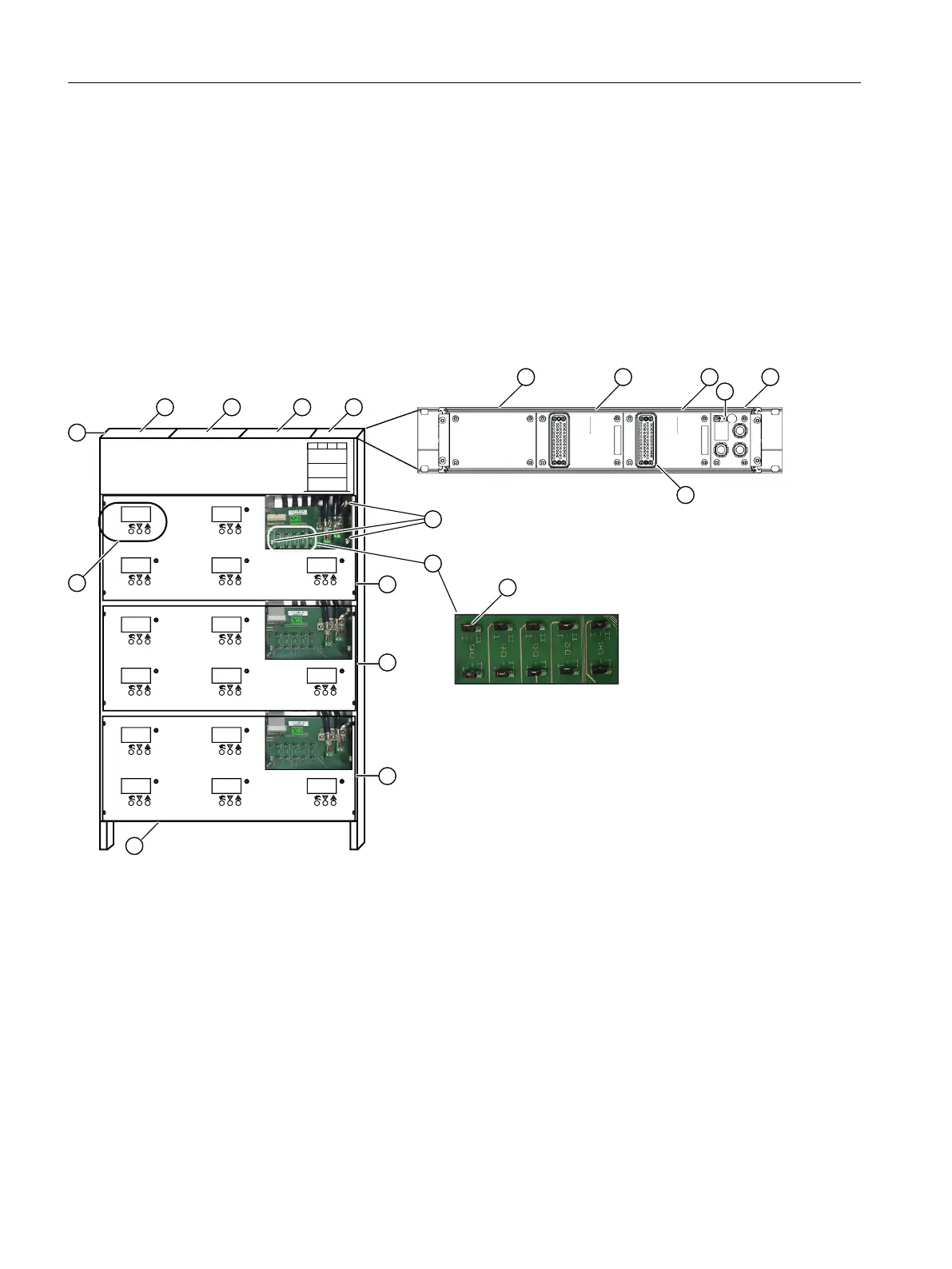

The figure shows a 19" slide-in module with three installed PA modules, article number
A5E00250503.
&+
&+
&+
&+
&+
&+
&+
&+
&+
&+
&+
&+
&+
&+
&+
0RGXO
0RGXO
0RGXO
&+&+&+&+&+

D












① Rear with all connectors ⑧ PA module 1
② QRL module 3 with connection socket, connected to PA
module 3 ⑩
⑨ PA module 2
③ QRL module 2 with connection sockets, connected to PA
module 2 ⑨
⑩ PA module 3
④ QRL module 1 with connection sockets, connected to PA
module 1 ⑧
⑪ Front with handles
⑤ PA bus with connectors PAI_IN, PAII_IN and PAI_OUT ⑫ Channel (CH) of PA module 1 ⑤ with display and
buttons
⑥ Mounting screws 3x ⑬ Ground terminal
⑦ Assignment of channels to PAI, PAII via coding bridges
(7a)
⑭ Connection socket on QRL module 1 ④
Figure F-1 Example: Device view 19" slide-in module with 3 PA modules
Positioner with remote control electronics
F.2 19" slide-in module
SIPART PS2 with PROFIBUS PA
352 Operating Instructions, 05/2019, A5E00127926-AC

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
