Siemens SIPART PS2 User Manual

B.2.6 Dimensional drawing of non-contacting sensor





r













5

%$
A NCS B Magnet

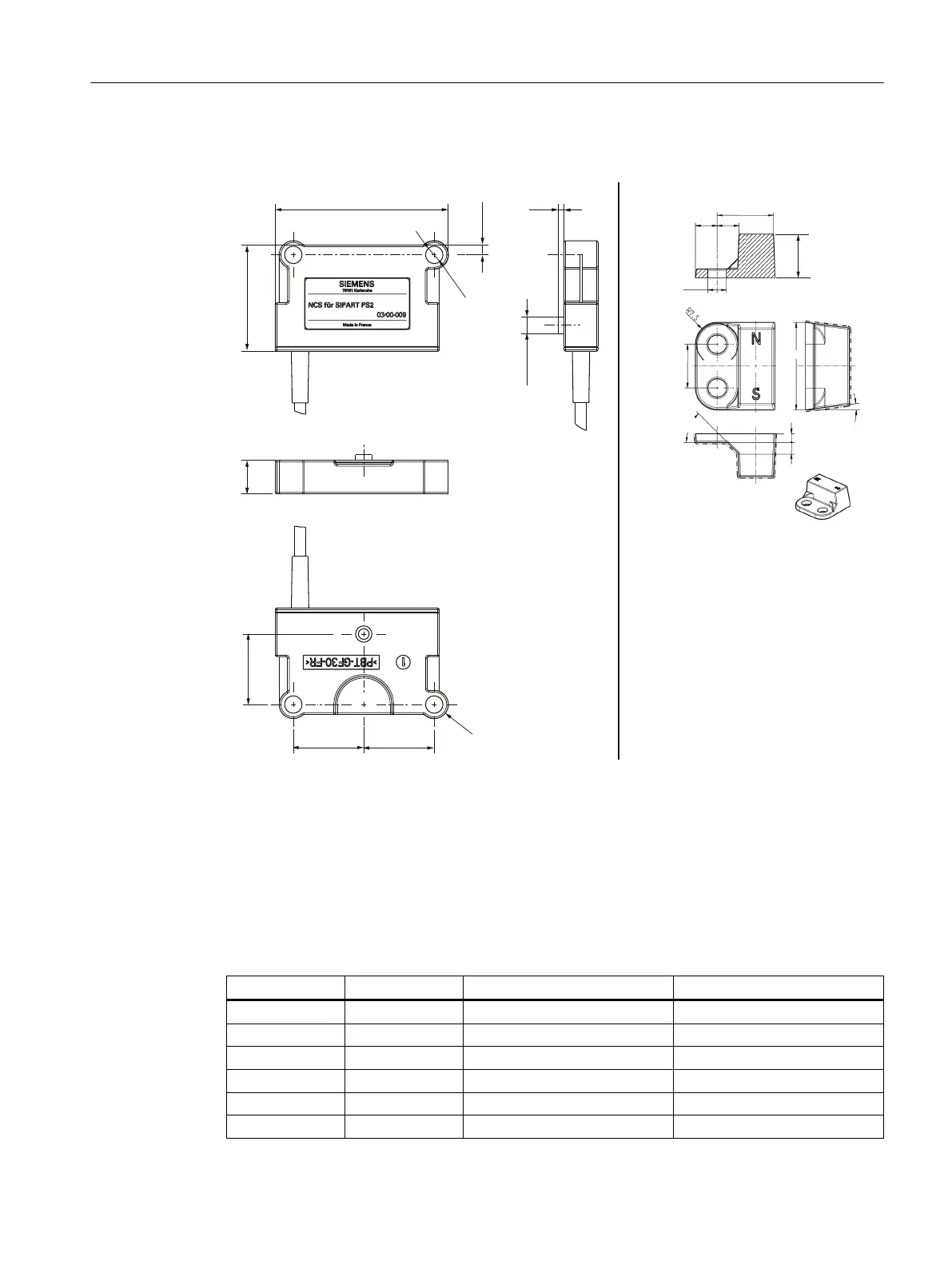

Figure B-8 Dimensional drawing of the NCS and magnet
B.2.7 NCS sensor scope of delivery
B.2.7.1 Scope of delivery of NCS for part-turn actuators
6DR4004-.N.10 6DR4004-.N.40
Quantity Quantity Name Note
1 1 Magnet clamp
5 5 Washer 6
2 2 Hex socket head screw M6x12
1 - Plastic washer
1 1 Magnet
External position detection
B.2 Non-Contacting Sensor
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 323

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
