7UDYHOOLPLWORZ7UDYHOOLPLWKLJK
0HFKDQVWURNH
DFWXDOYDOXH

PP

PPPPPPPPPP




6HWSRLQW
0HDVXULQJYDOXHGLVSOD\
6HWSRLQWGLVSOD\

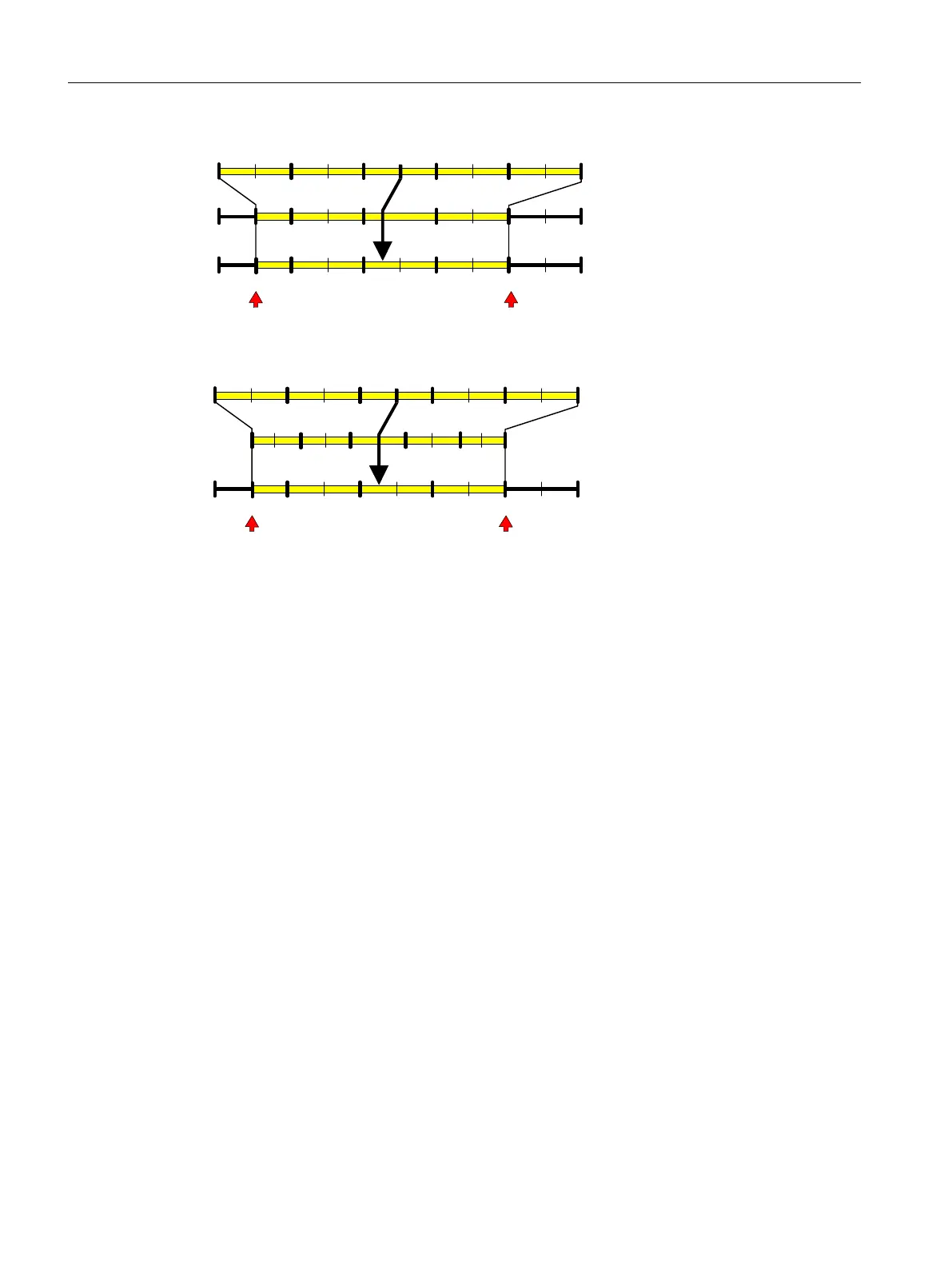

Figure 8-2 Example: YNRM = MPOS with YA = 10 % and YE = 80 %

7UDYHOOLPLWORZ7UDYHOOLPLWKLJK
0HFKDQ6WURNH
DFWXDOYDOXH

PP

PPPPPPPPPP


6HWSRLQW
0HDVXULQJYDOXHGLVSOD\
6HWSRLQWGLVSOD\
Figure 8-3 Example: YNRM = FLoW with YA = 10 % and YE = 80 %
8.3.2.8 '35.YDIR' Direction of action of manipulated variable for display and position feedback
Possible settings: ● riSE
● FALL
Purpose: This parameter is used to set the direction of action of the display
and the position feedback. The direction can be rising or falling.
Factory setting: riSE
8.3.2.9 ' 36.YCLS' Tight closing/fast closing with manipulated variable
Possible settings: no None
uP Tight closing Up
do Tight closing Down
uP do Tight closing Up and Down
Fu Fast closing Up
Fd Fast closing Down
Fu Fd Fast closing Up and Down
uP Fd Tight closing Up and fast closing Down
Fu do Fast closing Up and tight closing Down
Parameter assignment
8.3 Description of parameters
SIPART PS2 with PROFIBUS PA
150 Operating Instructions, 05/2019, A5E00127926-AC

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
