Siemens SIPART PS2 User Manual



① Part-turn actuator
② Pressure gauge block, double-acting
③ Double-acting positioner in polycarbonate enclosure

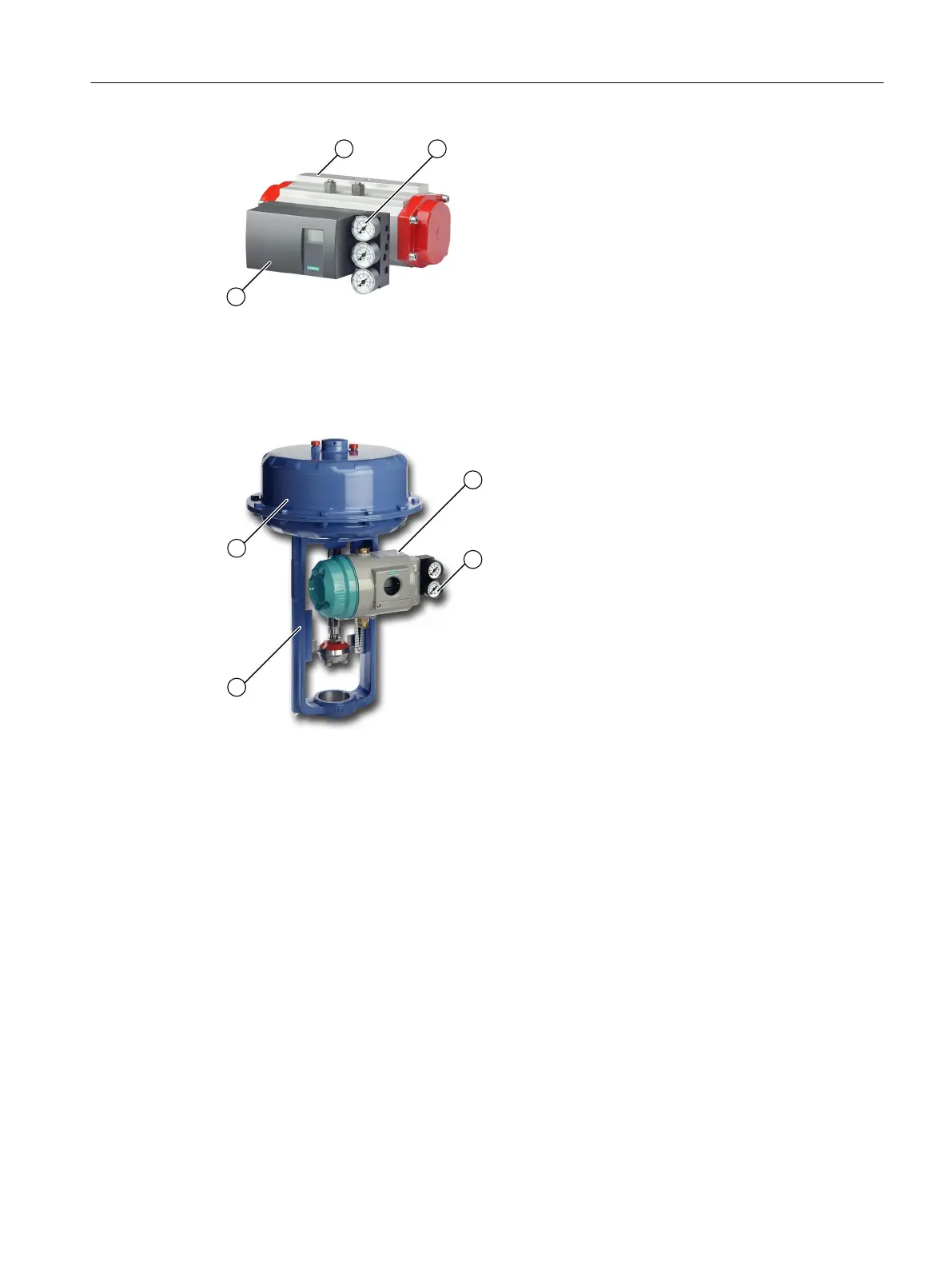

Figure 3-2 Positioner attached to double-acting part-turn actuator




① Single-acting positioner in flameproof aluminum enclosure
② Pressure gauge block, single-acting
③ Yoke / actuator yoke
④ Actuator
Figure 3-3 Positioner in flameproof aluminum enclosure attached to linear actuator
Description
3.2 Structure
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 25

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
