Siemens SIPART PS2 User Manual

Initializing the positioner manually

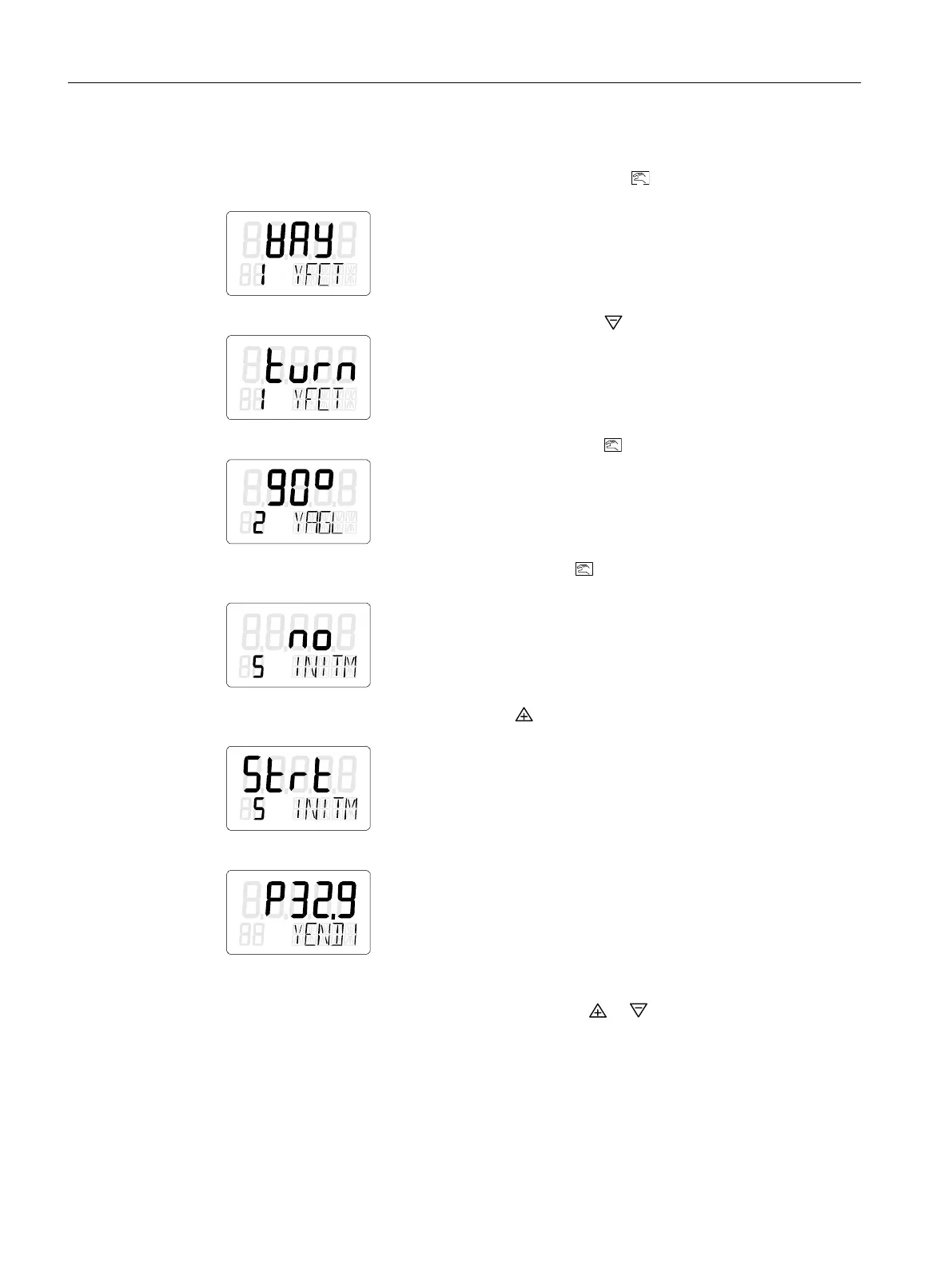

1. Switch to the "Configuration" mode. To do this, press the
button for at least 5 seconds
until the display shows the following:
2. Set the "YFCT" parameter to "turn". To do this, press . The display shows the following:
3. Call the second parameter "YAGL". To do this, press . The display shows the following:
4. Call the "INITM" parameter. To do this, press the button twice. The display shows the
following:
5. Start the initialization process. Press the button for at least 5 seconds until the display
shows the following:
6. The current potentiometer position is output on the display after 5 seconds:
7. Determine the lower endstop of the actuator.
8. Move the actuator to the desired position using the or button.
Commissioning
7.7 Commissioning part-turn actuators
SIPART PS2 with PROFIBUS PA
128 Operating Instructions, 05/2019, A5E00127926-AC

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
