Siemens SIPART PS2 User Manual

Description




s
s
$
%&








Dimensions in mm
A Mounting on a yoke with fin ③ Non Contacting Sensor (NCS)
B Mounting on a yoke with plane surface ④ Hex socket head screw M6x25
C Mounting on a yoke with columns ⑤ Magnet
① NAMUR mounting bracket IEC 60534 -
not included in the scope of delivery
⑥ Hex socket head screw M6x12
② Assembly panel for Non Contacting
Sensor (NCS) - individual solution; not
included in the scope of delivery
⑦ Mounting bracket for the magnet - individual
solution; not included in the scope of delivery

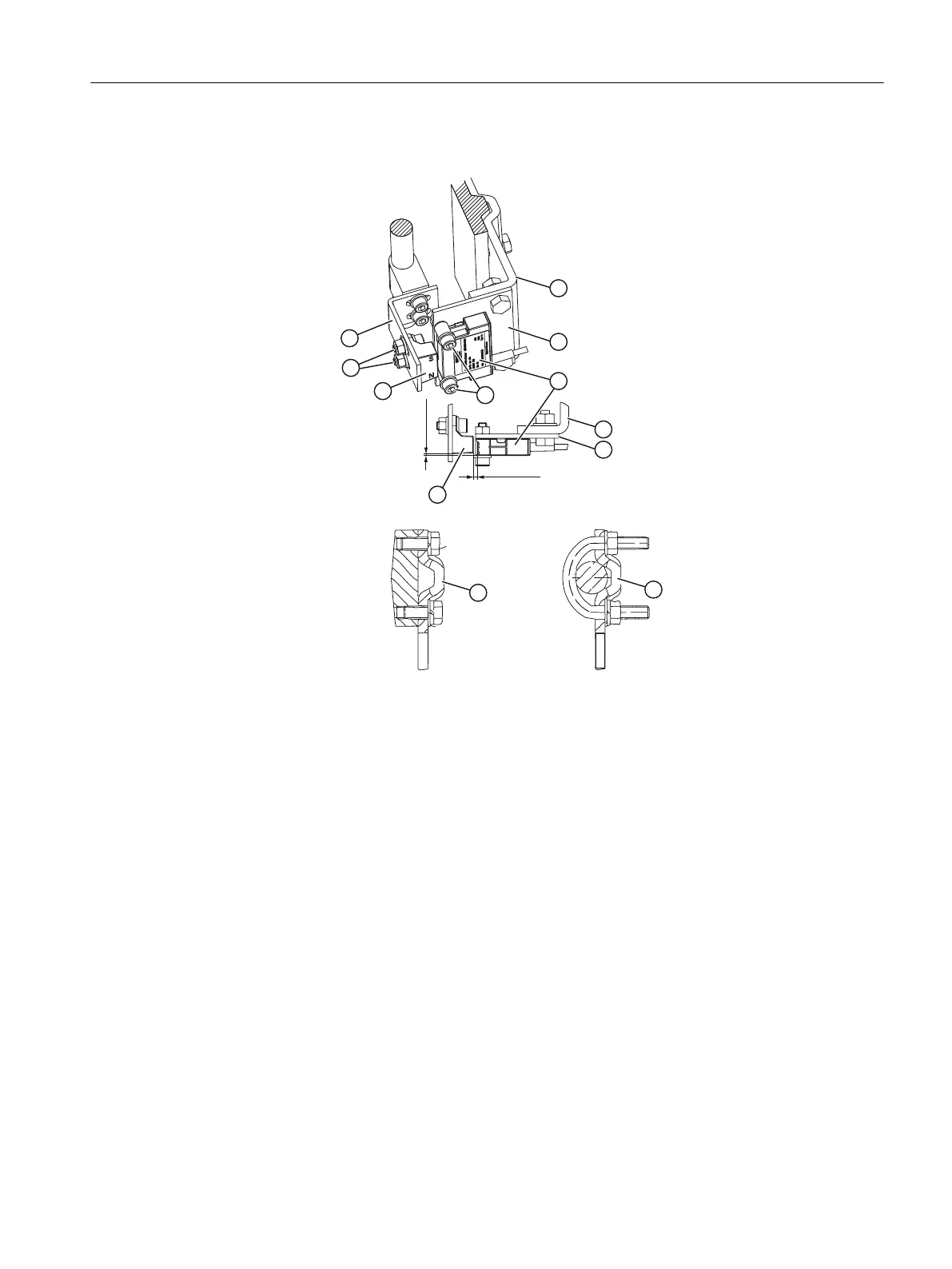

Figure B-5 Example of the assembly on a linear actuator with a stroke up to 14 mm (0.55 inch)
Procedure
1. Produce the mounting panel ② and mounting bracket ⑦ individually.
2. Align the sensor to the center of the stroke. Observe the dimensions specified in the figure.
Reference
For information on the scope of delivery, refer to section "NCS sensor scope of delivery
(Page 323)".
External position detection
B.2 Non-Contacting Sensor
SIPART PS2 with PROFIBUS PA
Operating Instructions, 05/2019, A5E00127926-AC 315

Siemens SIPART PS2 Specifications

General

Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Enclosure Rating	IP66/NEMA 4X
Communication Protocols	HART, PROFIBUS PA, FOUNDATION Fieldbus
Output Pressure	0 to 100% of supply pressure
Hazardous Area Certification	ATEX, IECEx, FM, CSA
Type	Electropneumatic
Input Signal	4-20 mA
Rotation Angle	30° to 90°
Operating Temperature	-40°C to +80°C
Mounting	Linear and rotary actuators
Air Consumption	Typically less than 0.1 kg/h
