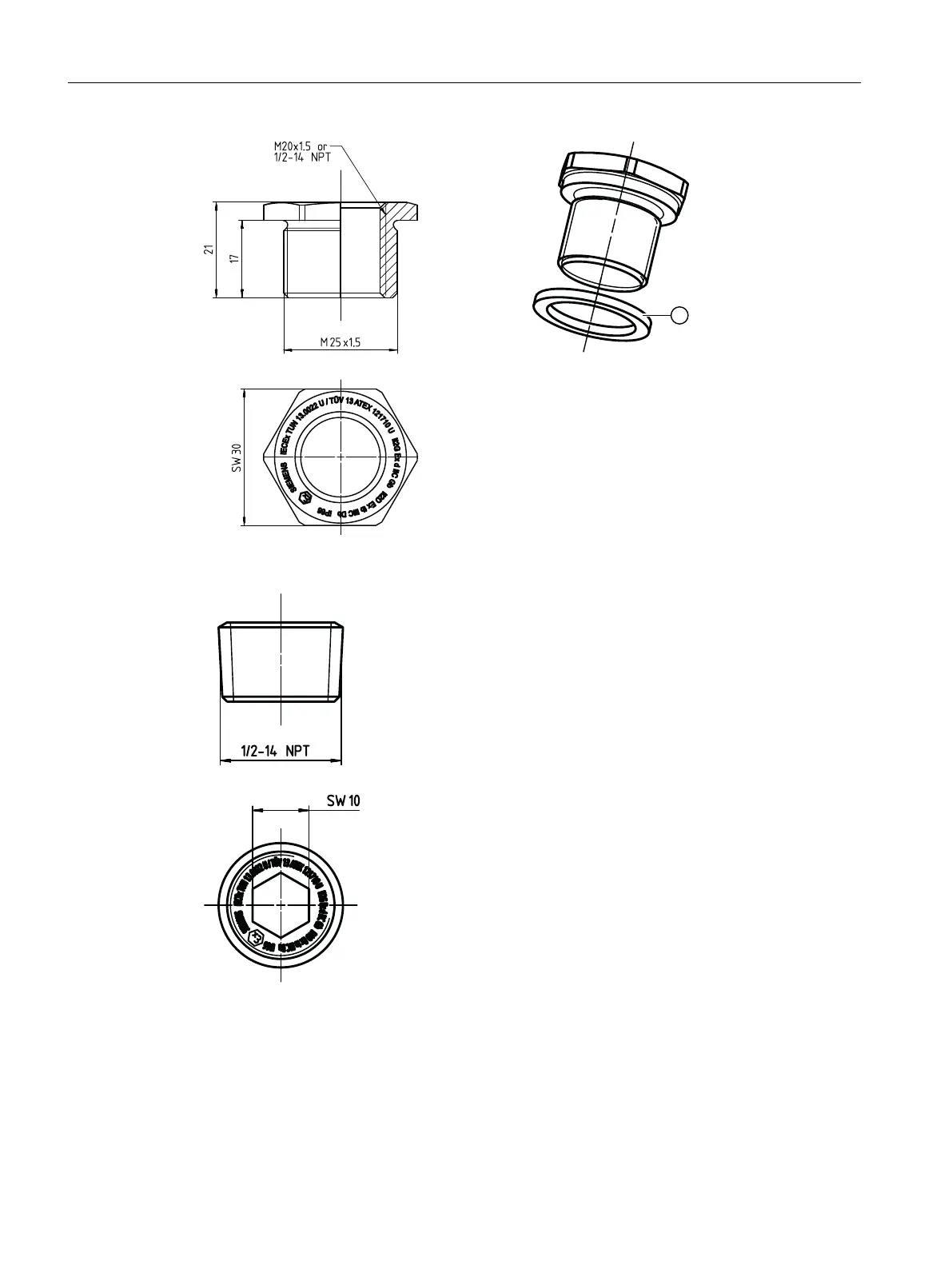

Thread adapter Ex d, M25 x 1.5 on M20 x 1.5 and
M25 x 1.5 on ½-14 NPT, dimensions in mm
① Sealing ring: Use for dust protection "Ex t" type
of protection.
Sealing plug Ex d ½ -14 NPT
Sealing plug / thread adapter
D.4 Dimension drawing for accessory part
SIPART PS2 with PROFIBUS PA
334 Operating Instructions, 05/2019, A5E00127926-AC
