SIREMOBIL Iso-C 3D SPR2-230.814.01 Page 18 of 42 Siemens AG
Rev. 05 08.04 CS PS 24 Medical Solutions
6 - 18 3. Part of activities independent of serial number

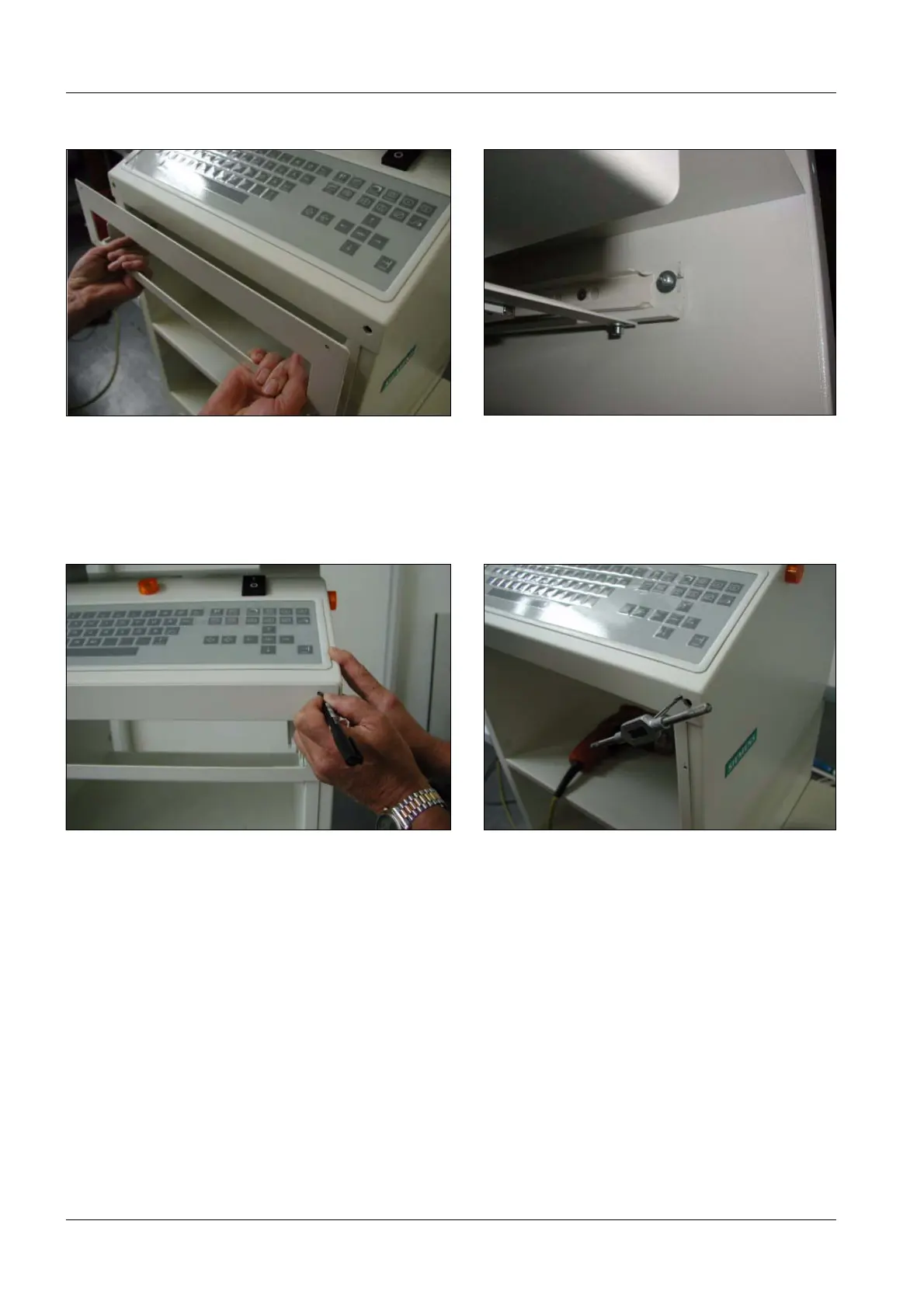

• Push in the keyboard tray until flush (Fig. 41).
• Slide in the back section of the keyboard tray at the tapping screws (Fig. 42).
• Mark the 4 holes (Fig. 43).
• Remove the tray again.
• Punch-mark the hole.
• Drill a 3.2 mm hole.
• Deburr the holes.
• Cut thread M4 (Fig. 44).
Fig. 42 Keyboard tray Fig. 43 Attachment at the back
Fig. 44 Marking the holes Fig. 45 Thread cutting
