3. Part of activities independent of serial number 6 - 19
Siemens AG SPR2-230.814.01 Page 19 of 42 SIREMOBIL Iso-C 3D
Medical Solutions Rev. 05 08.04 CS PS 24
• Reinstall the attachments for the keyboard tray and secure with coated screws M4
(Fig. 45).
• Ensure that the back section of the attachments for the keyboard tray lies flush on one
side. Please do not use force (Fig. 46).
• Fill the space on the other side with washers.
• Tighten the tapping screws.
• Reattach the rear transverse bar of the keyboard tray.

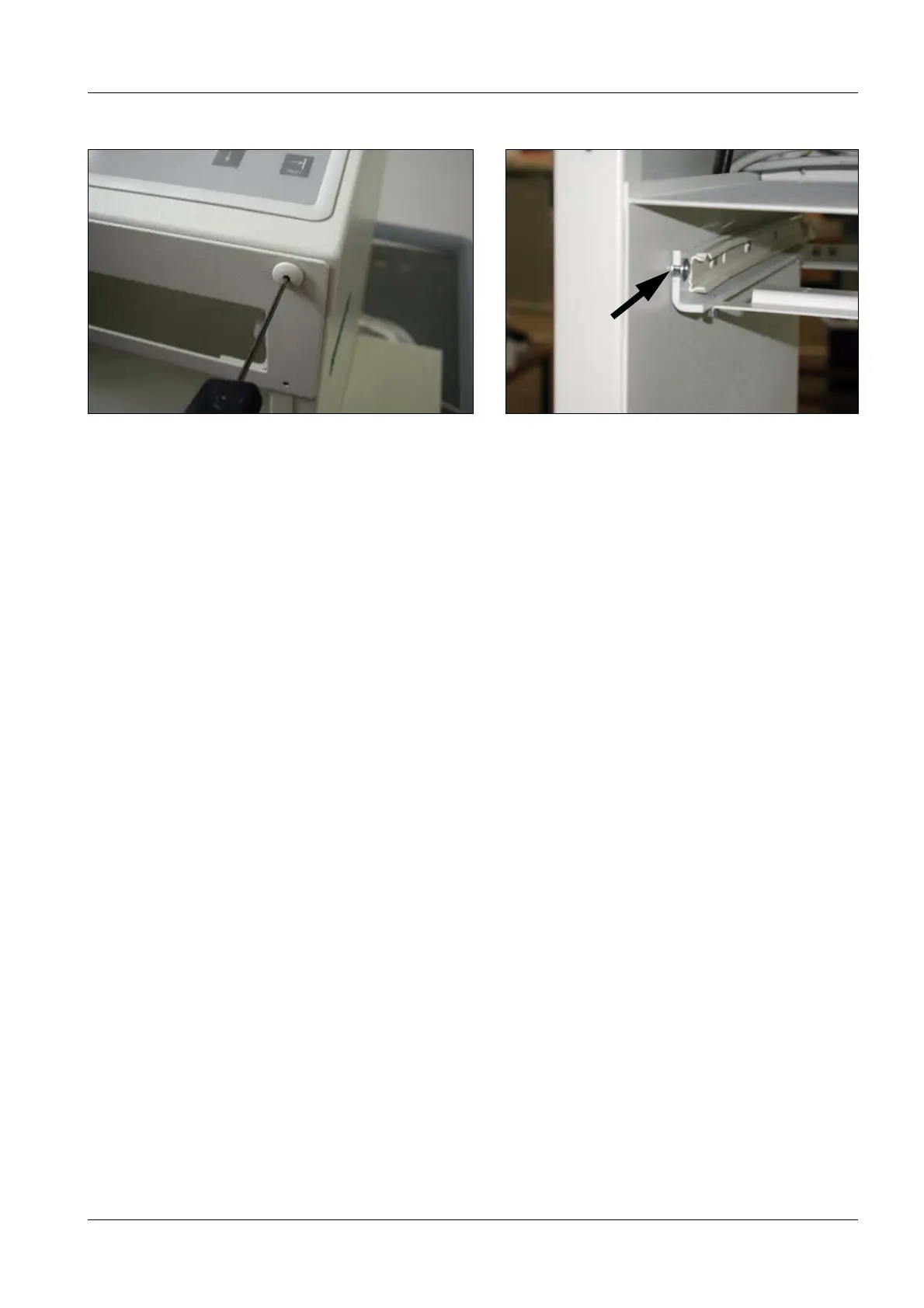

Fig. 46 Installing the attachments for the keyboard tray Fig. 47 Back section
