Functions
7.3 Logger Control
FUE1010 IP65 NEMA 4X
106 Operating Instructions, 12/2014, A5E03086491-AC

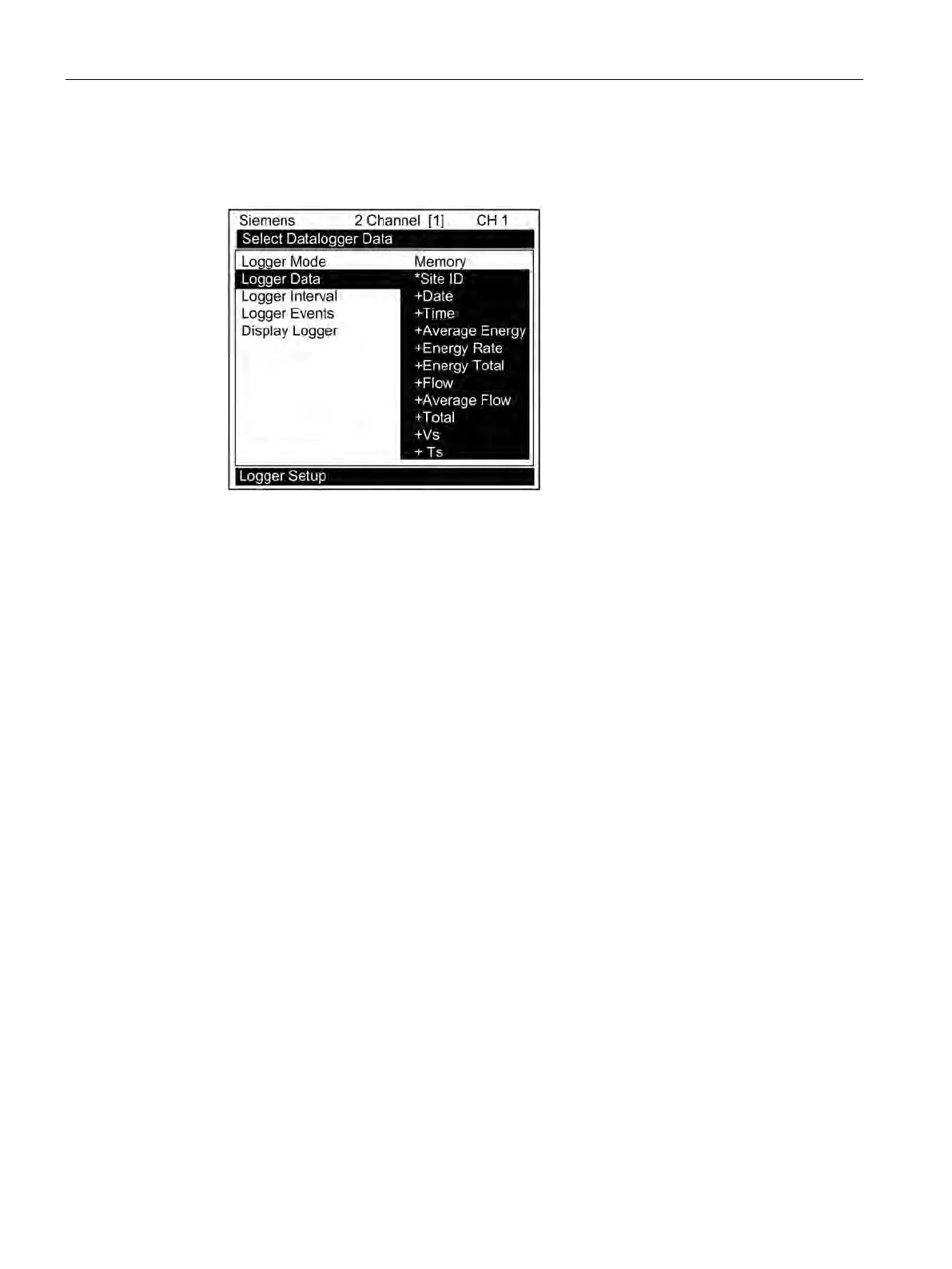

3. Select the data required in each report. From the [Logger Data] menu cell press the
<Right Arrow>. Press <ENTER> for each parameter that is needed in the logger report or
press the <Down Arrow> to skip an unwanted parameter.
4. Continue selecting parameters until the [Site ID] parameter appears again thus
completing the selection list. Press the <Left Arrow> to return to the [Logger Setup]
menu. If you want to deselect a parameter previously selected, highlight the unwanted
parameter and press the <CLR> key.
5. Select the [Logger Interval] by choosing the time interval desired between reports.
(Default is 1 minute.)
6. [Logger Events] menu cell can be enabled by selecting one or more alarm functions from
the [Events] list (in the same manner as selecting [Logger Data] parameters above). This
function will generate datalogger reports should any of the selected alarm “events” occur.
7. The [Display Logger] menu cell can be selected if you wish to observe the datalogger
data on the flow meter graphics display. Selecting Line Wrap, forces a line feed after
approximately 40 characters to enable viewing entire reports on the screen.
