Description
3.4 Theory of Operation
FUE1010 IP65 NEMA 4X
28 Operating Instructions, 12/2014, A5E03086491-AC

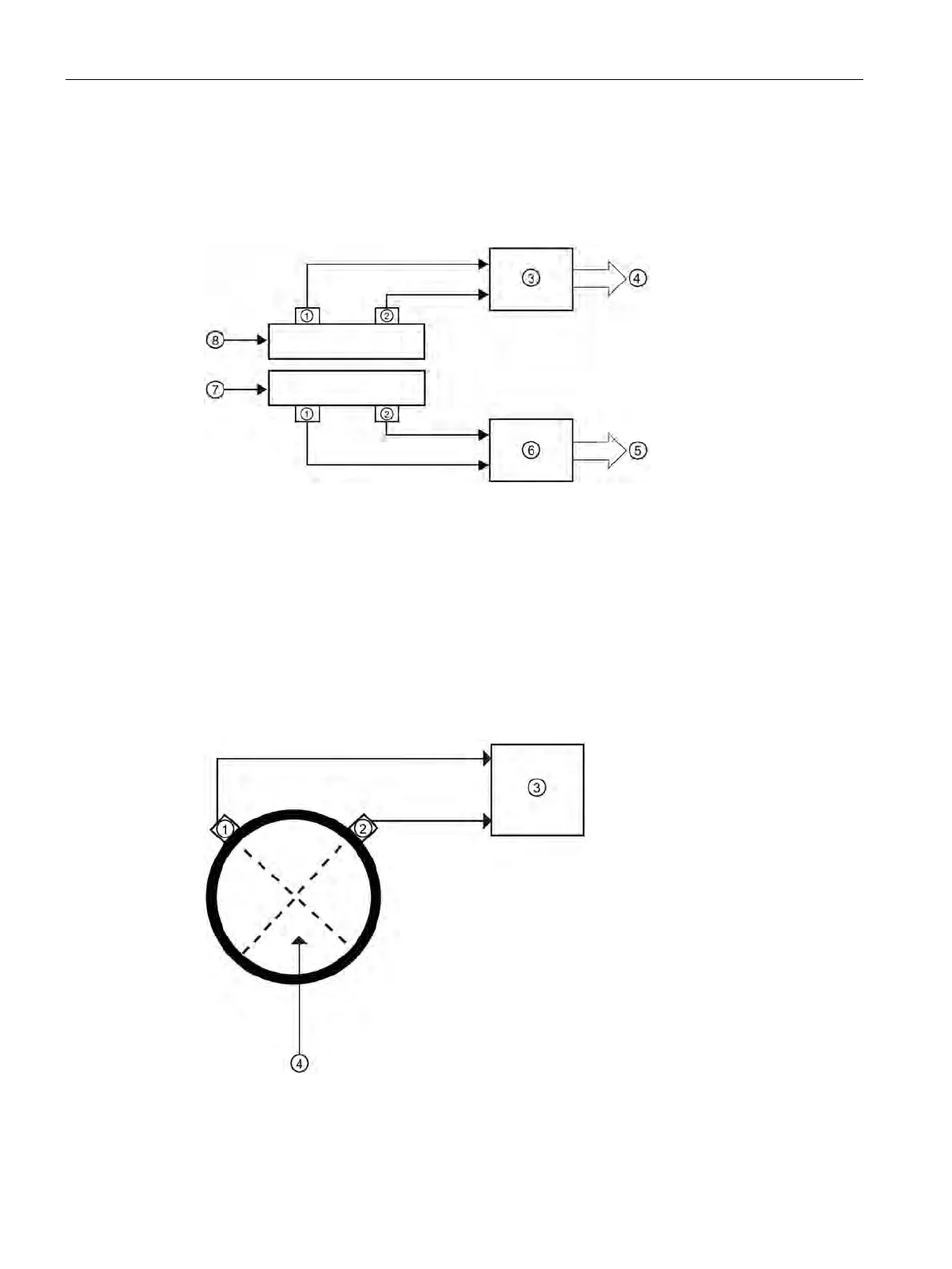

2-Channel
Dual Channel provides two independent measurement channels that operate
simultaneously. Depending on the specific model, Dual Channel supports: Clamp-on Transit-
time, In-line Transit-time and Reflexor.
①
Upstream Sensors
⑤
Pipe B Output Flow
②
Downstream Sensors
⑥
Channel 2 for Pipe B
③
Channel 1 for Pipe A
⑦
Pipe B
④
Pipe A Output Flow
⑧
Pipe A
2-Path
2-Path flow meters use two measurement channels to achieve a single output via a "virtual"
third channel. The resultant data is the average of the two channels. Only clamp-on or in-line
transit-time operation is allowed. Benefits include highest available precision and enhanced
immunity to distorted flow profile conditions.
①
Sensor Path 1
③
Average= (Path 1 + Path 2) / 2
②
Sensor Path 2
④
Pipe (front view)
