Connecting
5.2 Transmitter Wiring
FUE1010 IP65 NEMA 4X
42 Operating Instructions, 12/2014, A5E03086491-AC
①
Access Cover Screw
④
Latch
②
Transmitter
⑤
Access to Analog Input Module
③
Power Switch

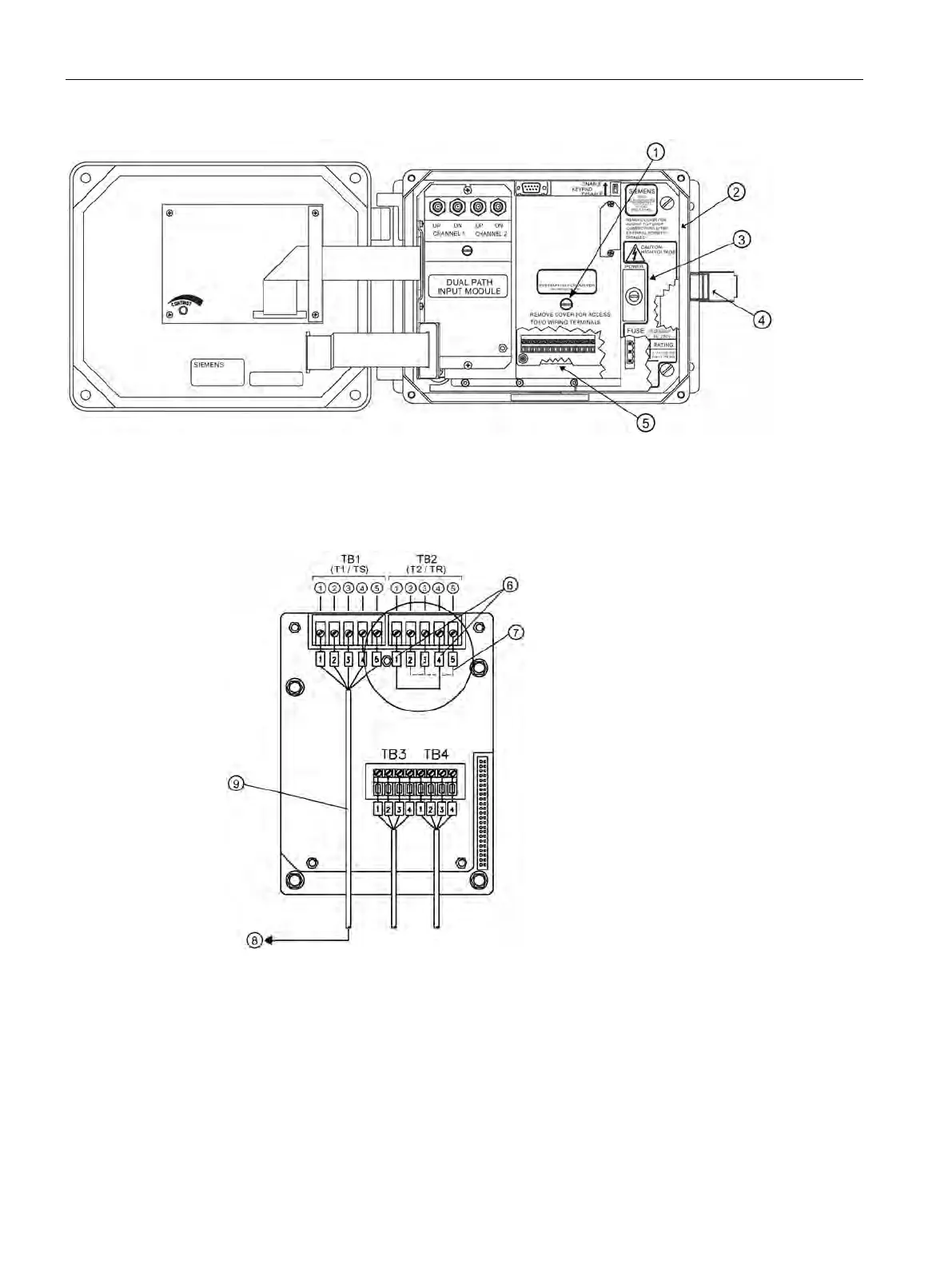

Figure 5-2 Analog Input Module Access
①
Black
⑥
Short Terminals 1 and 4 (For FUE1010-
TB2 is used for another Temperature
sensor.)
②
Orange
⑦
Ground Terminals 2 and 3 to Terminal 5
③
Brown
⑧
To Sensor
④
Red
⑨
7ME39600CR (992EC) Series Cable
⑤
Blue
Figure 5-3 Single Channel Temperature Sensor Inputs
