Connecting
5.5 Sensor Installation
FUE1010 IP65 NEMA 4X
Operating Instructions, 12/2014, A5E03086491-AC
61
4. Press the <Right Arrow> to [Sensor Model]. Press <Right Arrow> and scroll to select the
sensor model number on the sensor label.
5. The drop down menu lists the following sensor selections:
– 1011 Universal
– 1011HP-T1 - Usable -40 to 120°C, recommended for Ø Temperature <40°C;
Standard.
– 1011HP-T2 - Usable -40 to 120°C, recommended for Ø Temperature >40°C - <80°C;
Named as high temperature.
– 1011HP-T3 - Usable -40 to 120°C, recommended for Ø Temperature >80°C <120°C;
special request.
– 991 Universal
Note
The meter will automatically recommend a sensor depending on the application data
that has been entered.

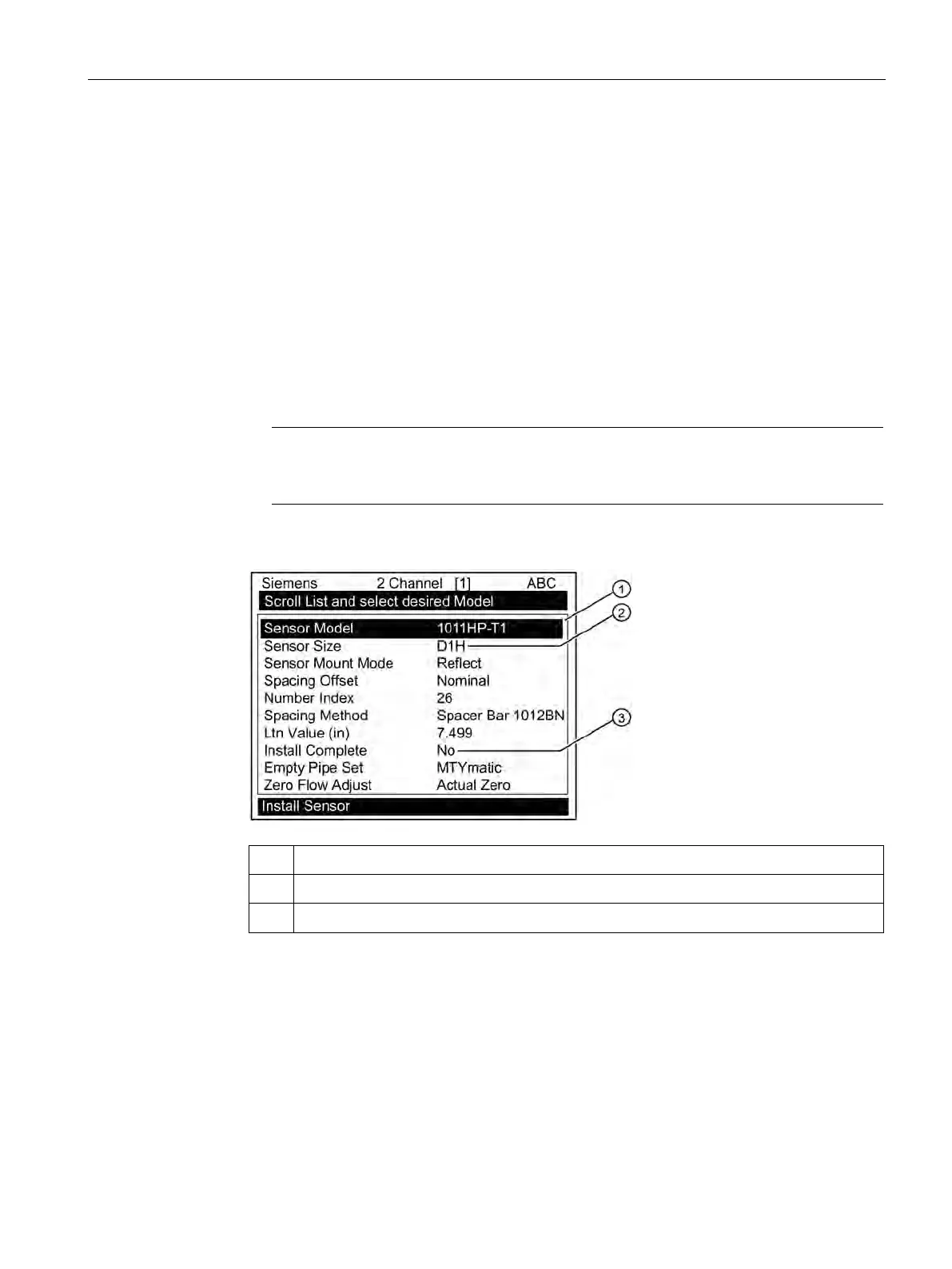

6. For this example, select the sensor model that appears on the sensor label then press
<ENTER>.
Select based on type
Select based on size
③
After sensor is mounted select "Install."
7. To select Sensor Size, press <Right Arrow>. Scroll to select the sensor size that matches
the size indicated on the sensor label. Press <ENTER>.
8. At [Sensor Mount Mode], press the <Right Arrow>. Scroll to select [Reflect] or [Direct]
mount and then press <ENTER>.
9.
IMPORTANT: Record Spacing Method and Number Index. This data will be used to
mount the sensors.
To Next Page
