Connecting
5.5 Sensor Installation
FUE1010 IP65 NEMA 4X
76 Operating Instructions, 12/2014, A5E03086491-AC
Positioning Track Assemblies

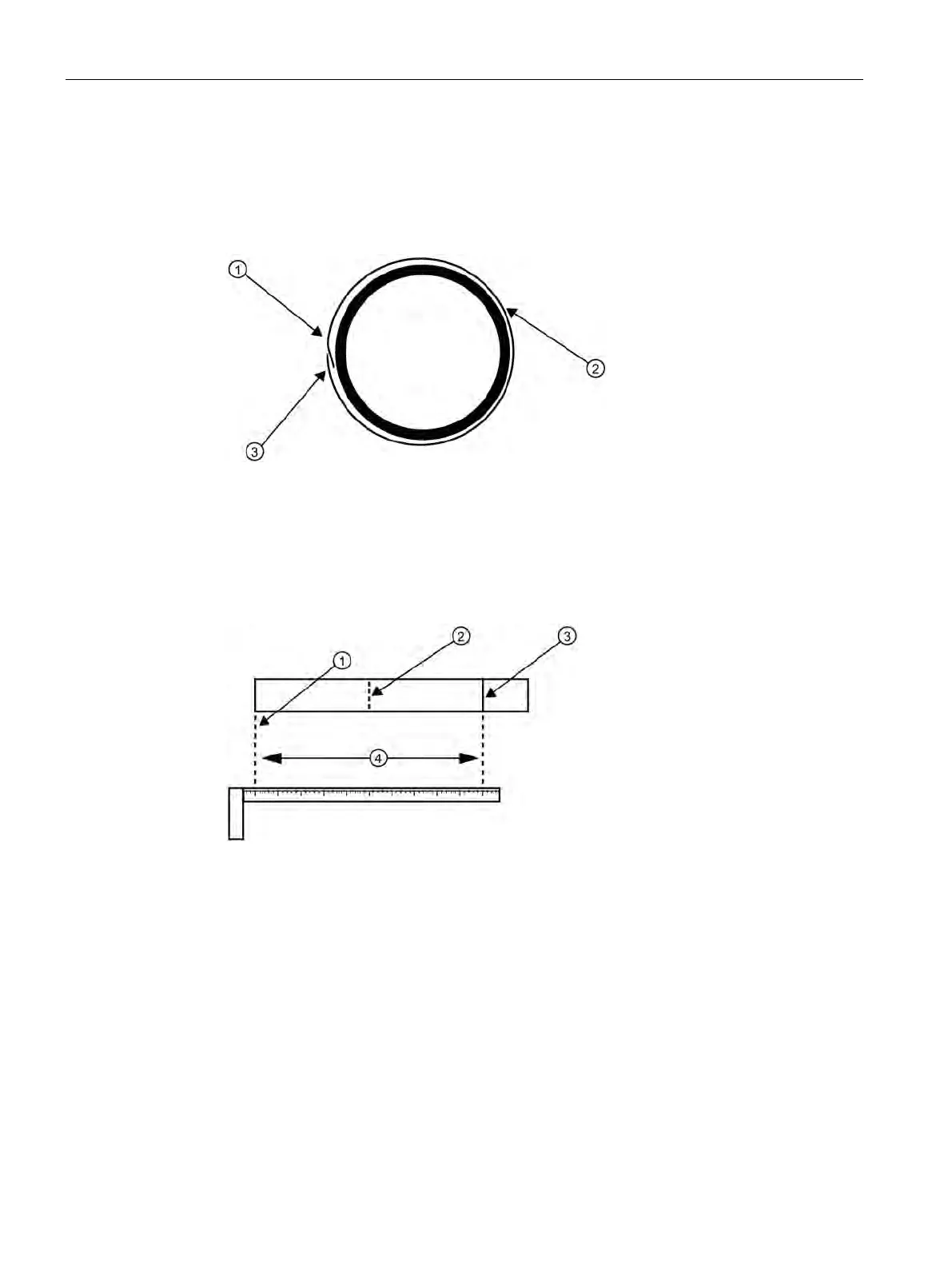

1. Wrap a length of the Mylar spacing guide around the pipe and against the end of the track
assemblies. Ensure that the spacer guide edges on both sides align. Arrange so that one
end overlaps the other by at least 8 cm (3 inches). Trim to fit if necessary, but in order to
keep the end square, be sure not to trim at the overlapping end.
Trim material from inner edge if necessary
8 cm (3-inches) Overlapping Edge
Figure 5-22 Wrapping the Mylar Spacing Guide around the pipe (End View)
2. Remove the spacer guide. Measure or fold spacer guide to find its halfway distance. Mark
a center line and then tape spacer guide to pipe.
Mark (or fold) exactly at half-way point
Figure 5-23 Finding the Halfway Distance
