SIWAREX WP231
Manual, 07/2014, A5E31238908A-02
29
All external connections (with the exception of the Ethernet interface) are made by means of
the screw connectors (terminal block 1 to 4).
24 V connection
Digital input connection
Analog output connection
Ethernet interface connection
Load cell connection
Calibration bridge connection
RS485 interface connection
Mounting terminals for the calibration protec-
tion plate
Digital output connection

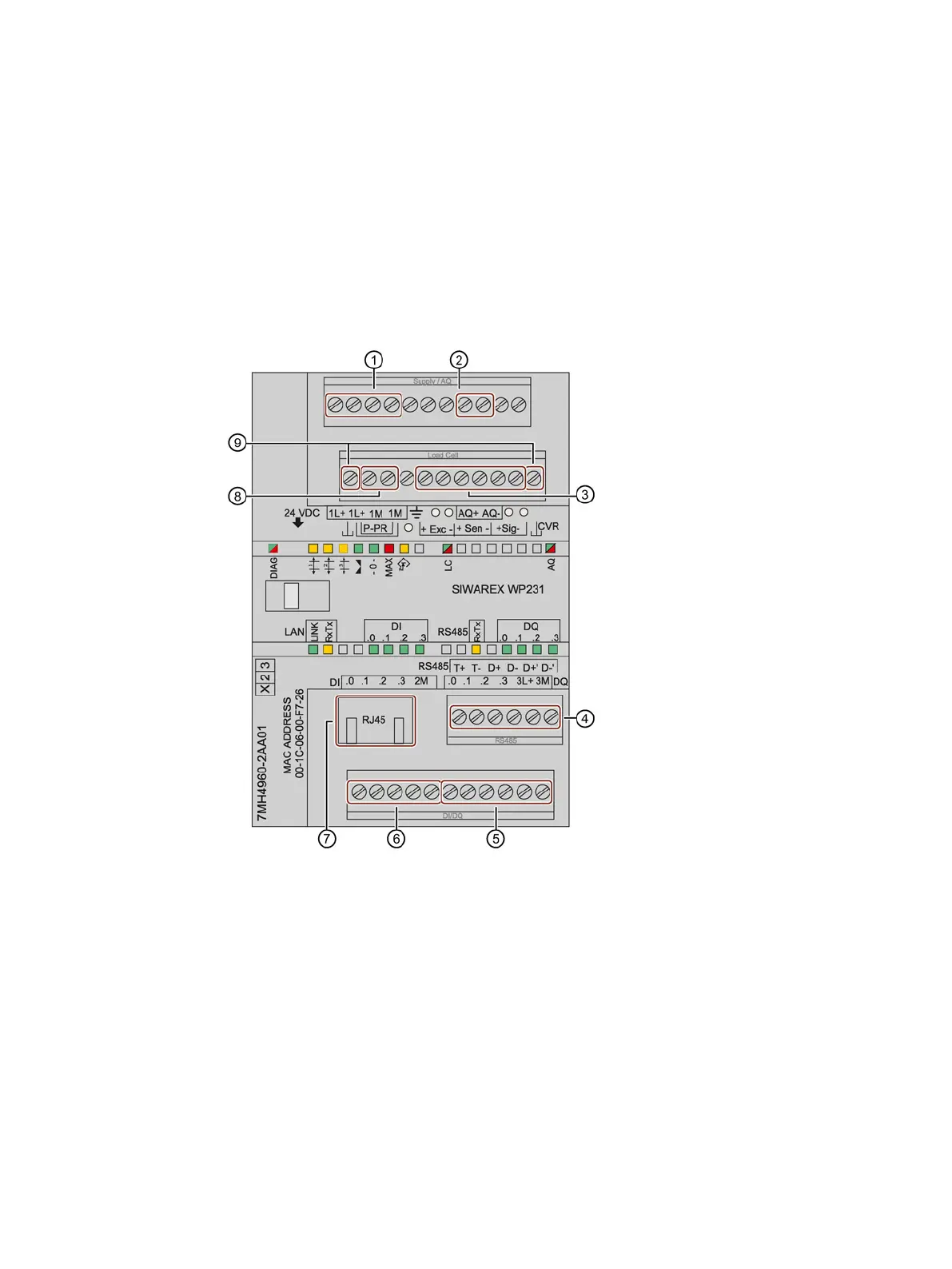

Figure 6-1 SIWAREX WP231 connection areas
