7.7 Service with the SIWATOOL program
SIWAREX WP231
Manual, 07/2014, A5E31238908A-02
55
7.7
Service with the SIWATOOL program
You can use the SIWATOOL program to commission the scale independently of the
SIMATIC automation system.
The program is included in the configuration package.
Install the SIWATOOL program (SIWATOOL catalog) on your PC for commissioning.
7.7.1
Windows and functions of SIWATOOL
①
Control elements for SIWATOOL and
operation of the scale
③
Offline values of the SIWAREX module
②
Parameter list of the SIWATOOL module
④
Online values of the connected SIWAREX
module

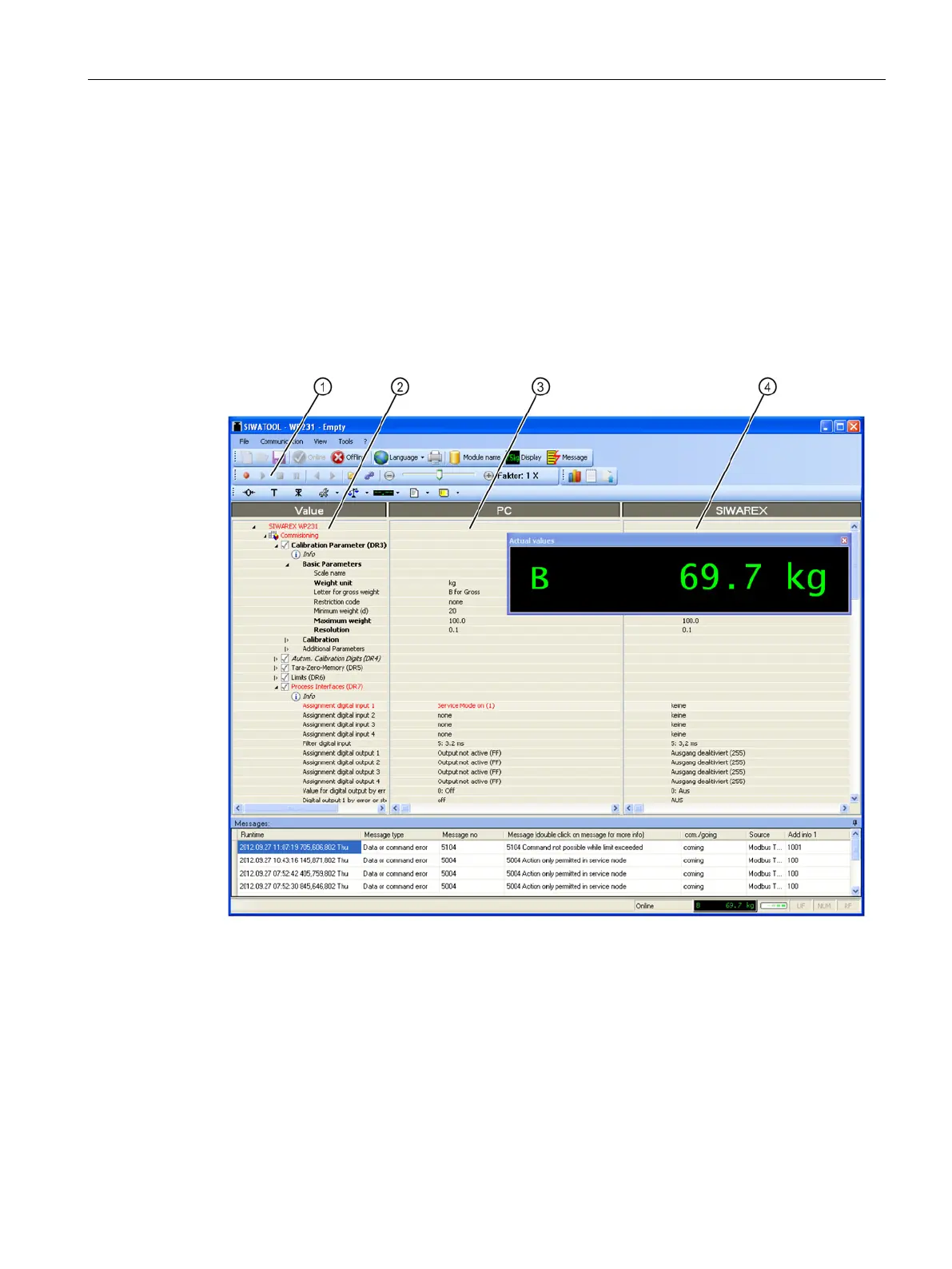

Figure 7-10 Layout of the SIWATOOL user interface
Sending/receiving a data record is always carried out by right-clicking on the data record
name in the "Value" column in the tree structure.
For example, if data record 3 is to be sent, right-click on "Calibration parameter (DR3)". A
submenu is then opened with the option for sending the respective data record to the
