Connection
6.4 Shield connection
SIWAREX WP231
34 Manual, 07/2014, A5E31238908A-02

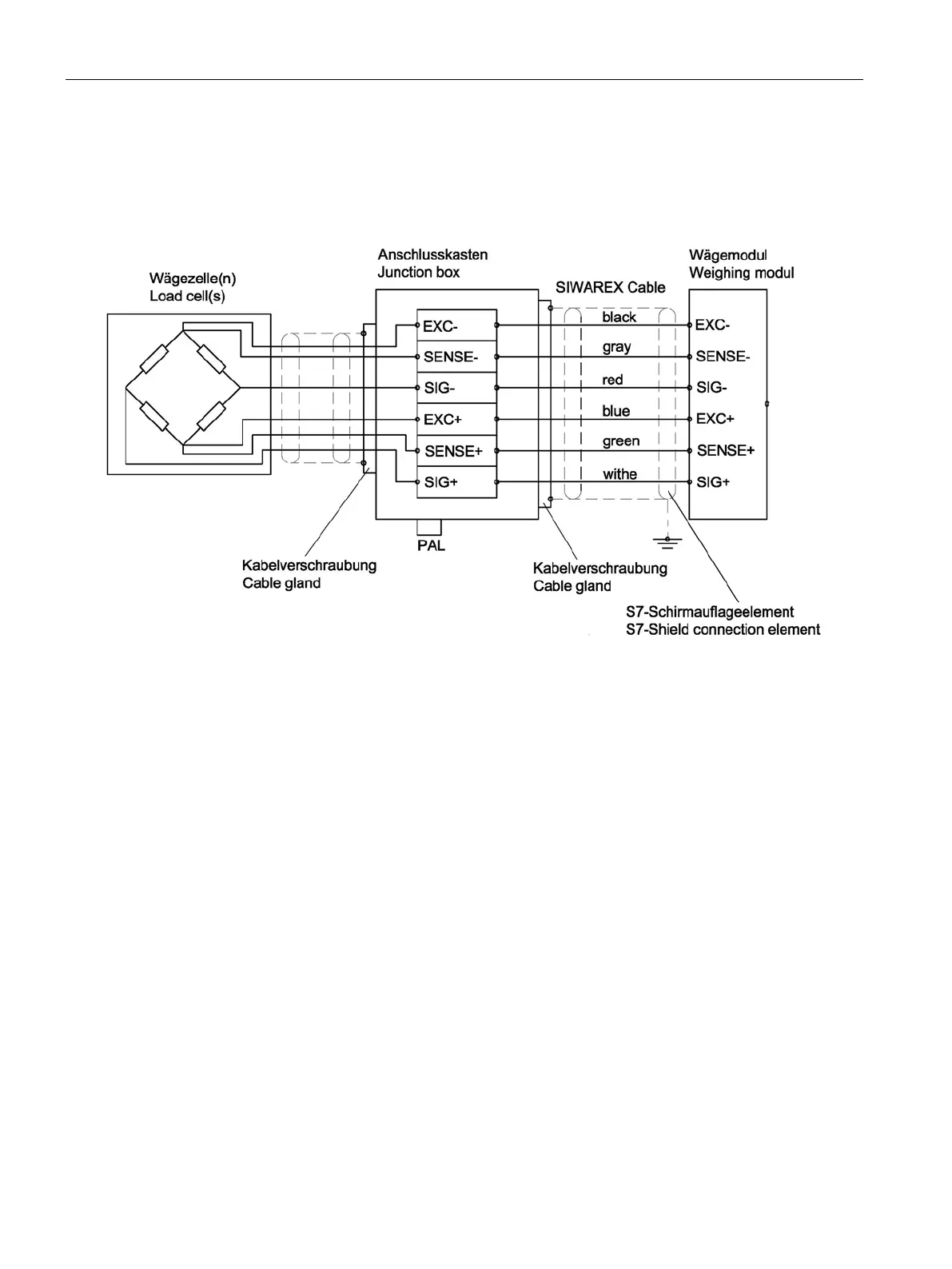

Figure 6-5 Connection of strain gauge load cell(s) with 6-wire system
