6.12 Mounting of the calibration protection plate
SIWAREX WP231
42 Manual, 07/2014, A5E31238908A-02
6.12
Mounting of the calibration protection plate
In order to operate SIWAREX WP231 with verification capability, the load cell connections
must be protected against manipulation. To achieve this, mount the calibration protection
plate included in the calibration set as shown in the following picture. Subsequently secure
the calibration protection plate using the associated terminals (see Figure 6-1 SIWAREX
WP231 connection areas (Page 29)).

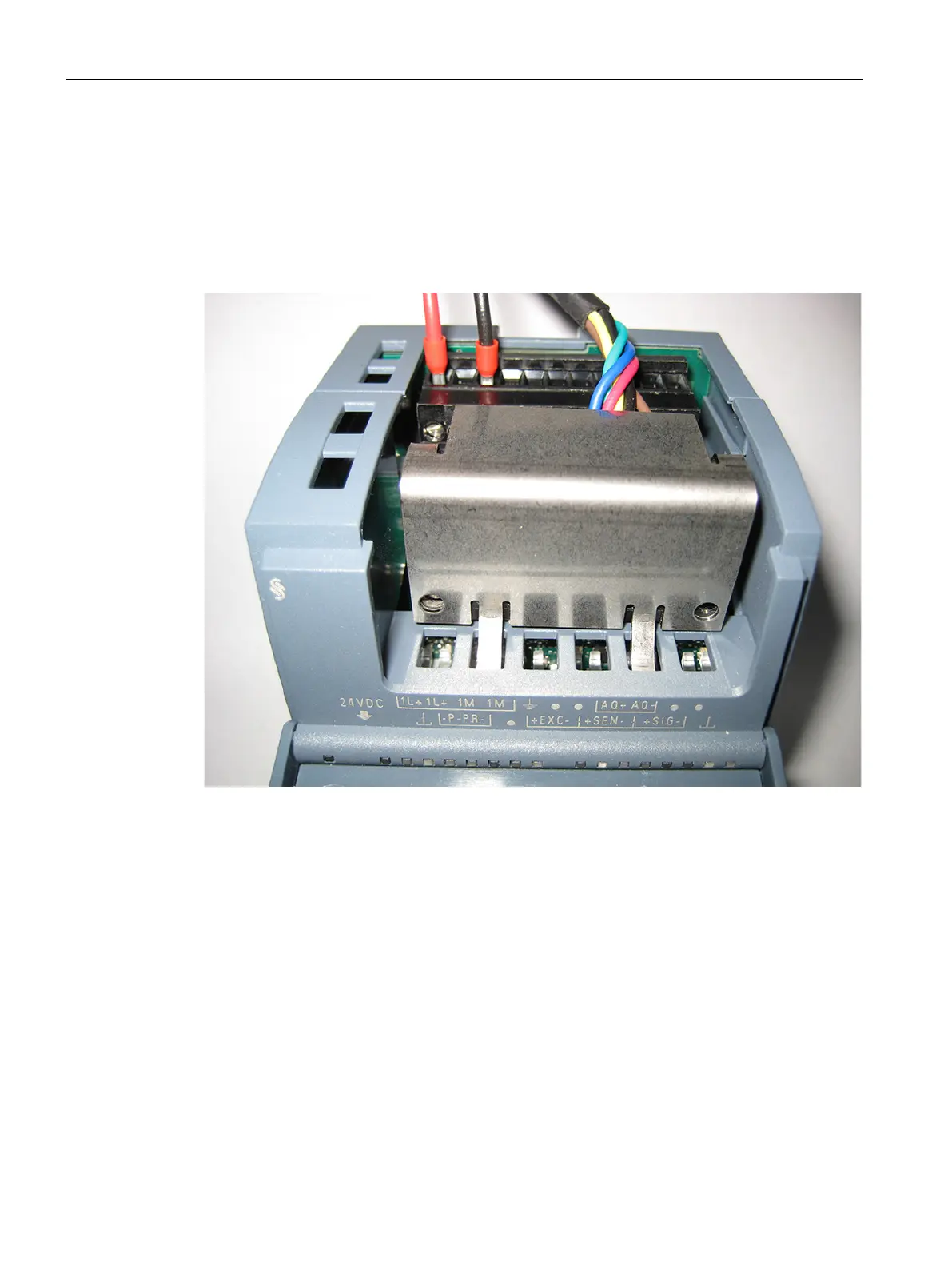

Figure 6-7 Mounting of the calibration protection plate
See also
Overview (Page 29)
