Section 04 TRANSMISSION
Sub-Section 08 (GEARBOX)
04-08-5
OIL CHANGE
Place a container under bottom pan (gearbox
side).
Unbolt gear shift linkage from fork axle. Unbolt
and remove cover by separating it from housing
and by moving it toward the front in order to re-
lease fork from sliding sprocket.
Clean cover interior.
NOTE :
It is normal to find metallic particles
stuck to dipstick magnet. If bigger pieces of
metal are found, disassemble and check all parts.
Reinstall cover as previously described during as-
sembly.
Fill housing with chaincase oil (P / N 413 8019 00).
Oil capacity is 250 mL (8.5 oz).
Check oil level with dipstick. With dipstick un-
screwed, oil level must be between MIN. and
MAX. marks.

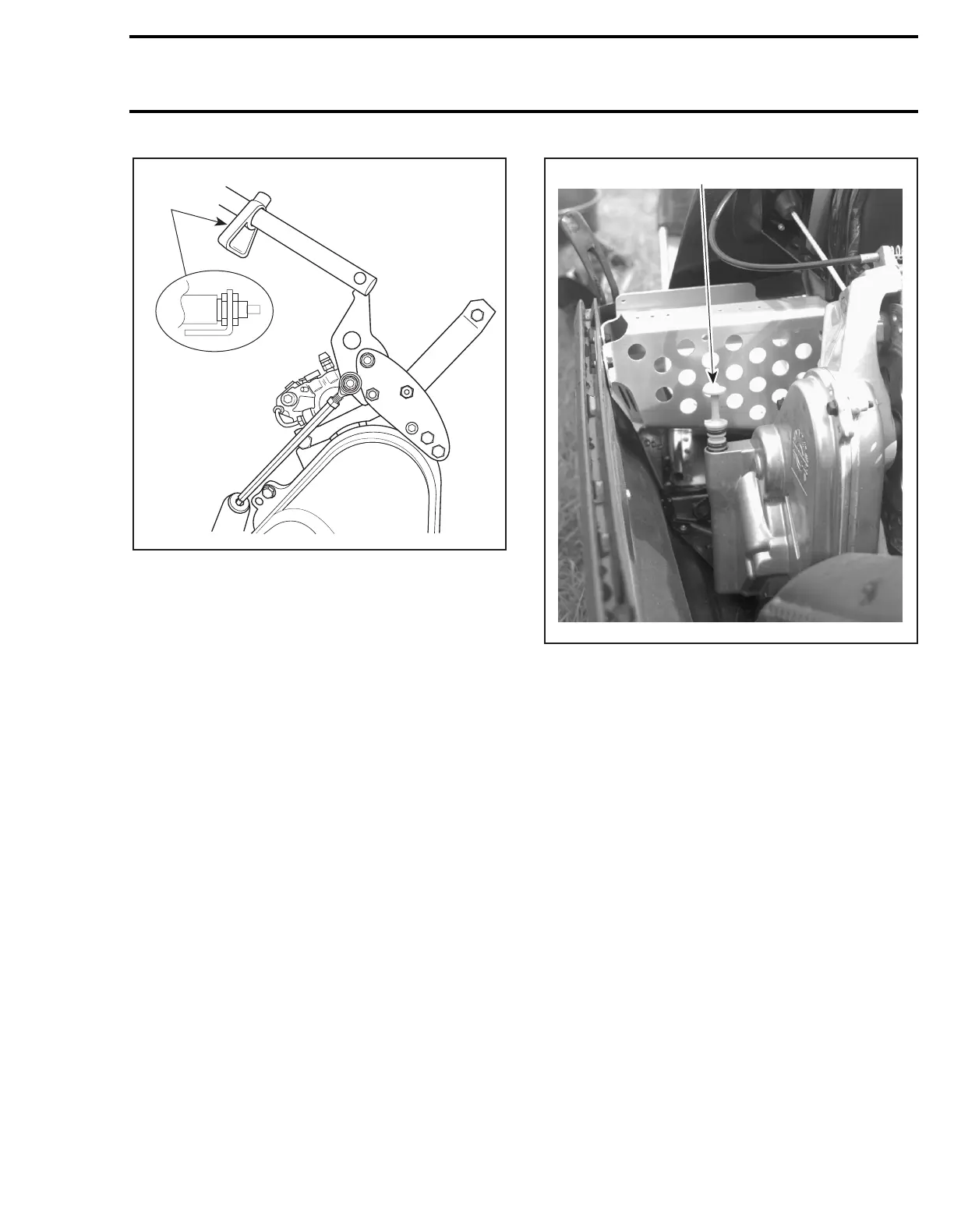

1. Dipstick
Shifter can be put in reverse position to ease re-
moval of dipstick.
A06D1QA
A03A03A
1
