Section 04 TRANSMISSION
Sub-Section 06 (BRAKE)
04-06-3

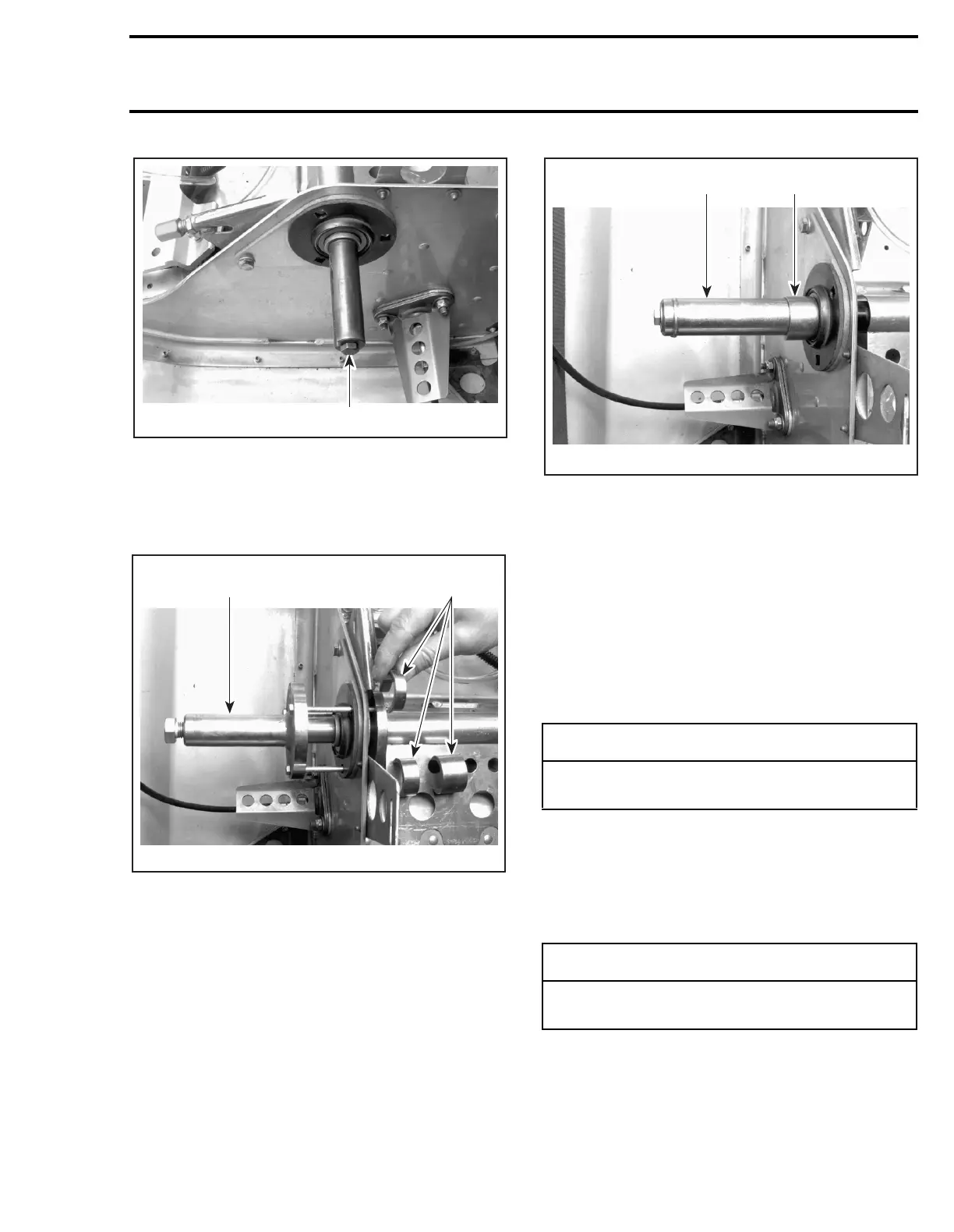

1. Screw
Pull bearing to driven pulley side out of counter-
shaft, using remover (P/N 529 0301 00). Begin
with only the remover then add a spacer of differ-
ent width as the bearing comes out.
1. Spacers
To install bearing on countershaft, use installer (P/N
529 0302 00) and spacer(s) from remover as re-
quired.
1. Spacer
DISASSEMBLY
Only brake pads are available as spare parts. If cal-
iper or master cylinder are damaged, replace each
of them as an assembly.
CLEANING
Clean all metal components in a general purpose
solvent. Thoroughly dry all components before as-
sembling.
INSPECTION
7, Brake Pad
Brake pads must be replaced when lining is 1 mm
(1/32 in) thick or less.
A03D29A
1
A03D1JA
529 0301 00 1
-
CAUTION
Do not clean brake pads in solvent. Soiled
brake pads must be replaced by new ones.
-
CAUTION
Brake pads must always be replaced in
pairs.
A03D1KA
529 0302 00 1
