Section 07 STEERING/FRONT SUSPENSION
Sub-Section 02 (STEERING SYSTEM)
07-02-6
See applicable exploded view for each model.
Adjust the steering handlebar to the desired posi-
tion.
Lock the handlebar in place by tightening the 4
nuts as specified in the illustrations.

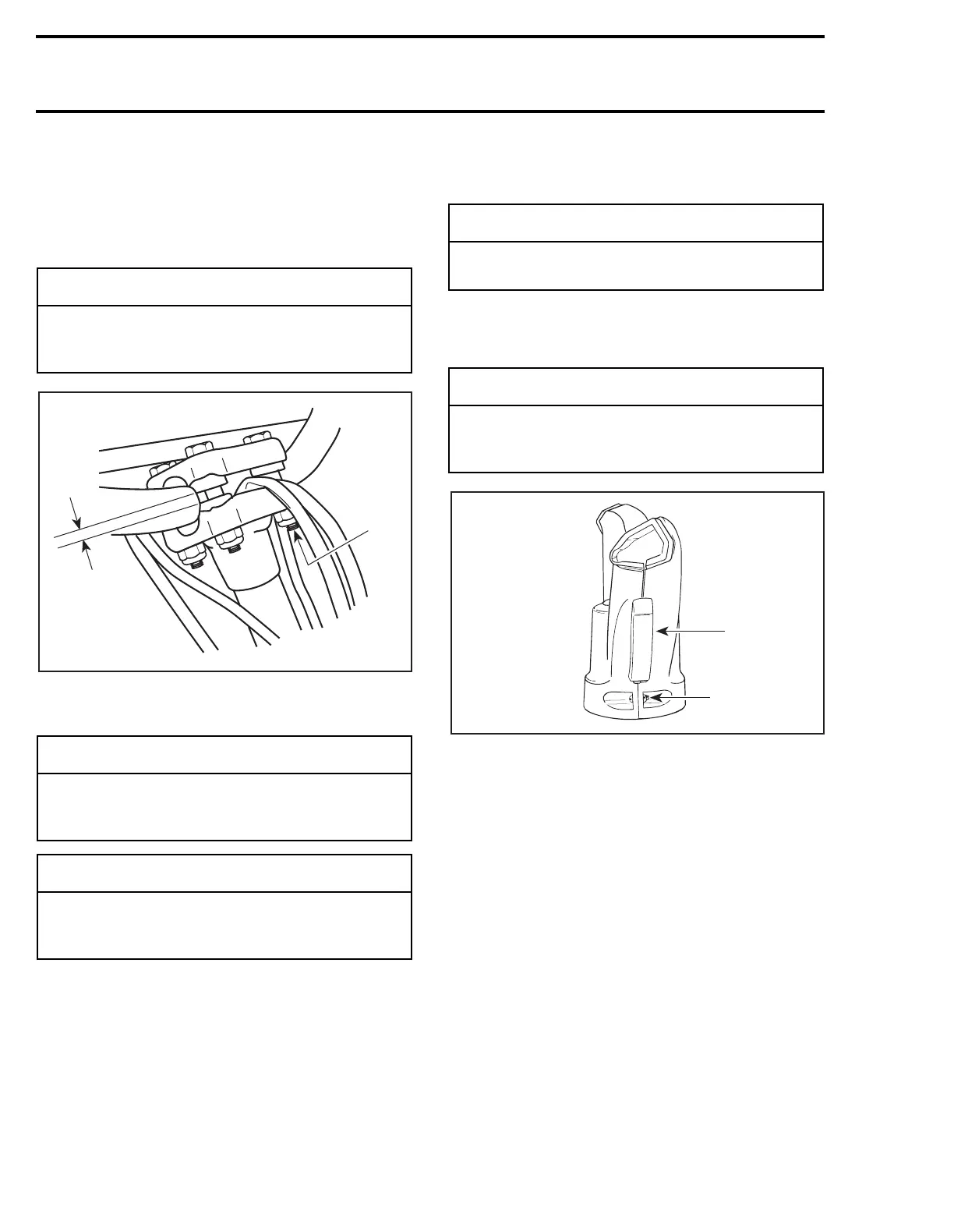

TYPICAL
1. Torque to 26 N•m (19 lbf•ft)
A. Equal gap all around
7,23,24,25, Steering Pad, Bolt, Nut and
Rubber Attachment
Properly fit the steering pad to the handlebar. As-
semble using the 2 rubber attachments, nuts and
bolts where applicable.
1. Rubber attachment
2. Nut and bolt (where applicable)
STEERING ADJUSTMENT (SKIS)
Definitions
TOE-OUT:
A difference measured between the front edge of
the skis “A” and rear edge “B” as viewed from
the top. It is adjustable.
-
CAUTION
Tighten the nuts equally in a criss-cross se-
quence and ensure there is an equal gap on
each side of the clamps.
◆
WARNING
Avoid contact between the brake handle and
the windshield by NOT adjusting the handle-
bar too high.
◆
WARNING
Make sure that the steering pad and all con-
trols are properly fixed to their normal loca-
tion on the handlebar.
A06G19A
1
A
-
CAUTION
Prior to installation, perform handlebar ad-
justment.
◆
WARNING
Make sure that the steering pad and all con-
trols are properly fixed to their normal loca-
tion on the handlebar.
A09G05A
1
2
