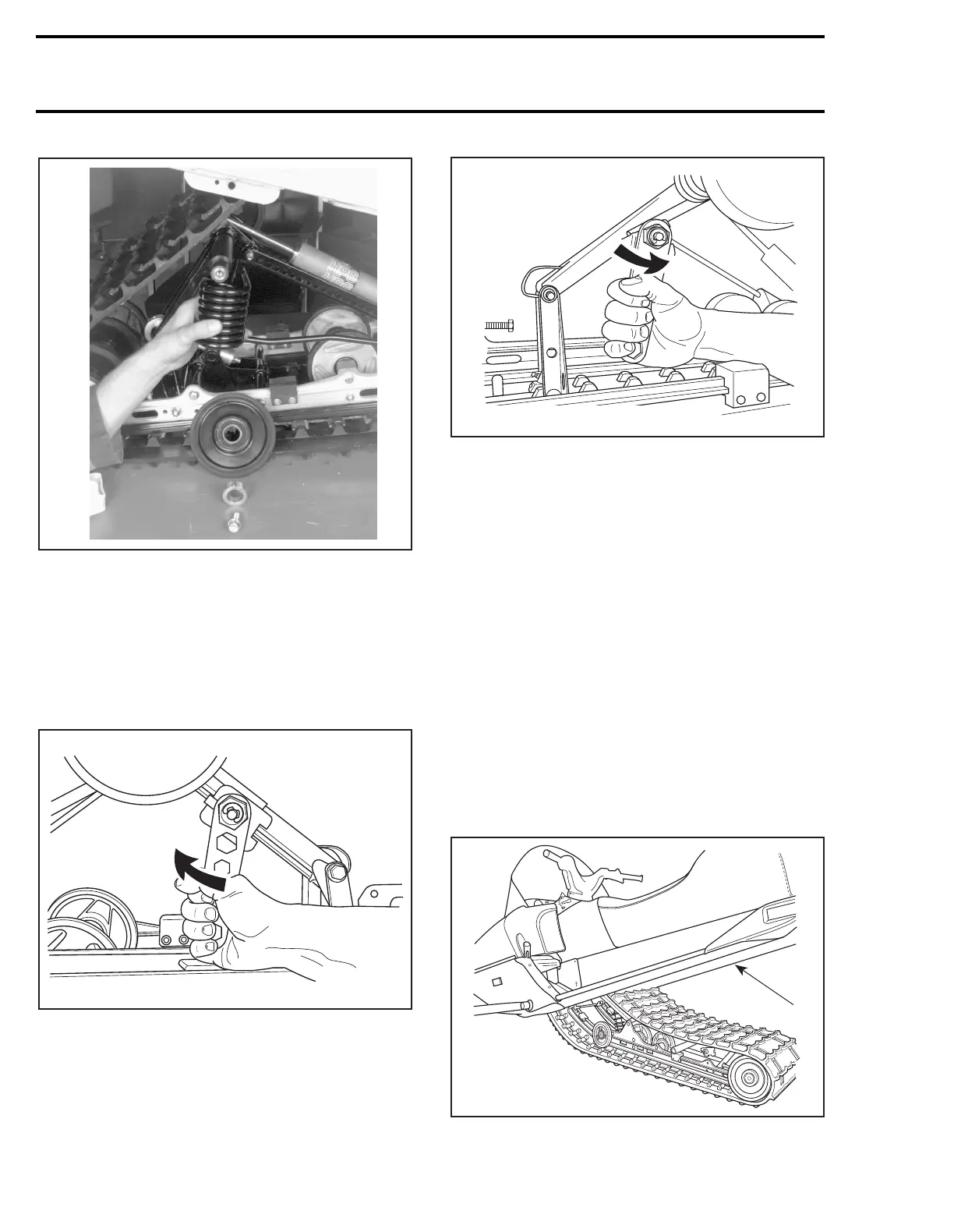

Section 06 REAR SUSPENSION
Sub-Section 02 (SC-10 SUSPENSIONS (ALL VERSIONS))
06-02-8
TYPICAL
At reassembly, wheel circlip must face outward.
REMOVAL
19, Cam
Decrease spring preload by turning LH cam clock-
wise and RH cam counterclockwise.
LH SIDE SHOWN
RH SIDE SHOWN
Lift rear of vehicle and support it off the ground.
Loosen track tension.
7, Screw
Unscrew rear arm top axle from chassis.
NOTE:
To prevent axle from turning when
unscrewing screws assembled with thread-
locker, proceed as follows:
– Knock on screw head and/or heat to break
threadlocker bond.
– Loosen one screw then retighten.
– Remove the opposite screw.
– Remove the first one.
Unscrew center idler wheel axle from tunnel then
remove.
Lift rear of vehicle at least 1 m (3 ft).
1. At least 1 m (3 ft)
A03F1QA
A03F0SA
A03F0TA
A03F0WA
1
