Section 04 TRANSMISSION
Sub-Section 03 (DRIVE PULLEY)
04-03-4
19, Spring Cover Ass’y
It is pushed by clutch spring pressure.

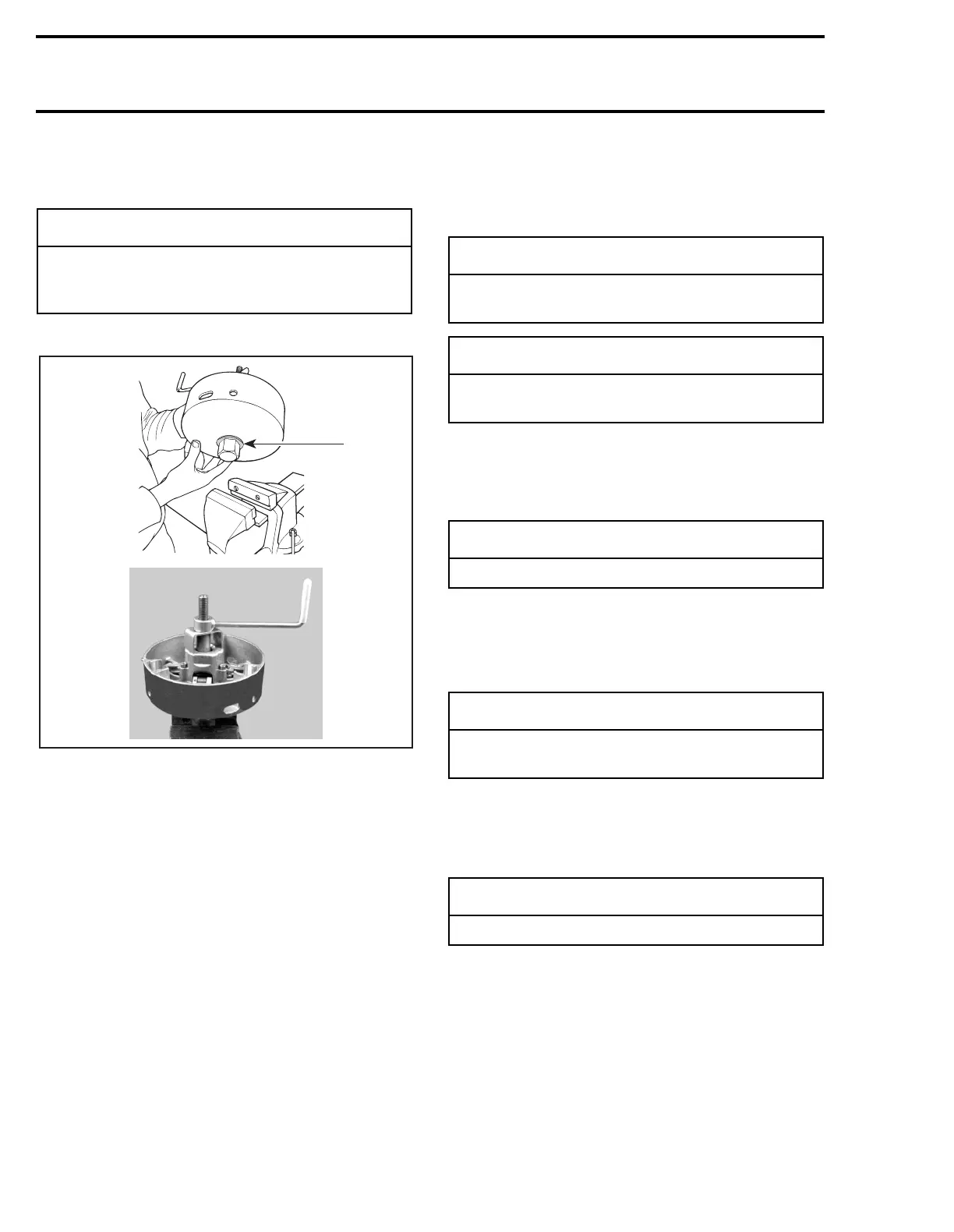

Use spring compressor (P/N 529 0151 00).
1. Washer must be here
Install tools as shown. Remove 3 Allen screws re-
taining spring cover then unscrew compressor.
CLEANING
5,6, Fixed and Sliding Half
Clean pulley faces and shaft with fine steel wool
and dry cloth.
5, Fixed Half and Crankshaft End
Parts must be at room temperature before clean-
ing.
Using a paper towel with cleaning solvent (P/N
413 7082 00), clean crankshaft tapered end and
the taper inside the fixed half of the drive pulley,
crankshaft threads and retaining screw threads.
Remove all harden oil deposits that have baked on
crankshaft and pulley tapered surfaces with
coarse or medium steel wool and/or sand paper
no. 600.
Reclean mounting surfaces with paper towel and
cleaning solvent (P/N 413 7082 00).
Wipe off the mounting surfaces with a clean, dry
paper towel.
7,20, Bushing
Only use petrol base cleaner when cleaning bush-
ings.
â—†
WARNING
Clutch spring is very strong. Never attempt
to remove spring cover without the recom-
mended tools.
A01D2SA
1
â—†
WARNING
This procedure must be performed in a well
ventilated area.
-
CAUTION
Avoid contact between cleaner and crank-
shaft seal because damage may occur.
-
CAUTION
Do not use any other type of abrasive.
-
CAUTION
Mounting surfaces must be free of any oil,
cleaner or towel residue.
-
CAUTION
Do not use acetone to clean bushing.
To Next Page
