Section 05 ELECTRICAL
Sub-Section 07 (TESTING PROCEDURE)
05-07-6
TYPICAL
6. Crank engine and observe indicator.
7. Push reset button and repeat step 6 twice.
Results:
a.
Indicator lamp lights:
Ignition module out-
put is up to specifications. The problem is a
faulty ignition coil.
b.
Indicator lamp does not light:
Proceed to
following test. If magneto output tests good,
the problem is a faulty ignition module.
MAGNETO OUTPUT
(IGNITION GENERATOR COIL)
1. Disconnect the 3-wire connector between igni-
tion module and magneto harness.
At installation, secure with new locking ties.
2. Connect tester wires then set switch and dial
as follows:
TYPICAL
3. Crank engine and observe indicator.
4. Push reset button and repeat step 3 twice.
LIGHTING GENERATOR COIL
OUTPUT
NOTE:
The lighting generator coil is not part
of the ignition system. It is a separate sys-
tem that supplies current to the lighting system
and AC-powered devices. However it can be test-
ed with the same tester.
1. Disconnect wiring harness junction block at en-
gine (the one with YELLOW wires).

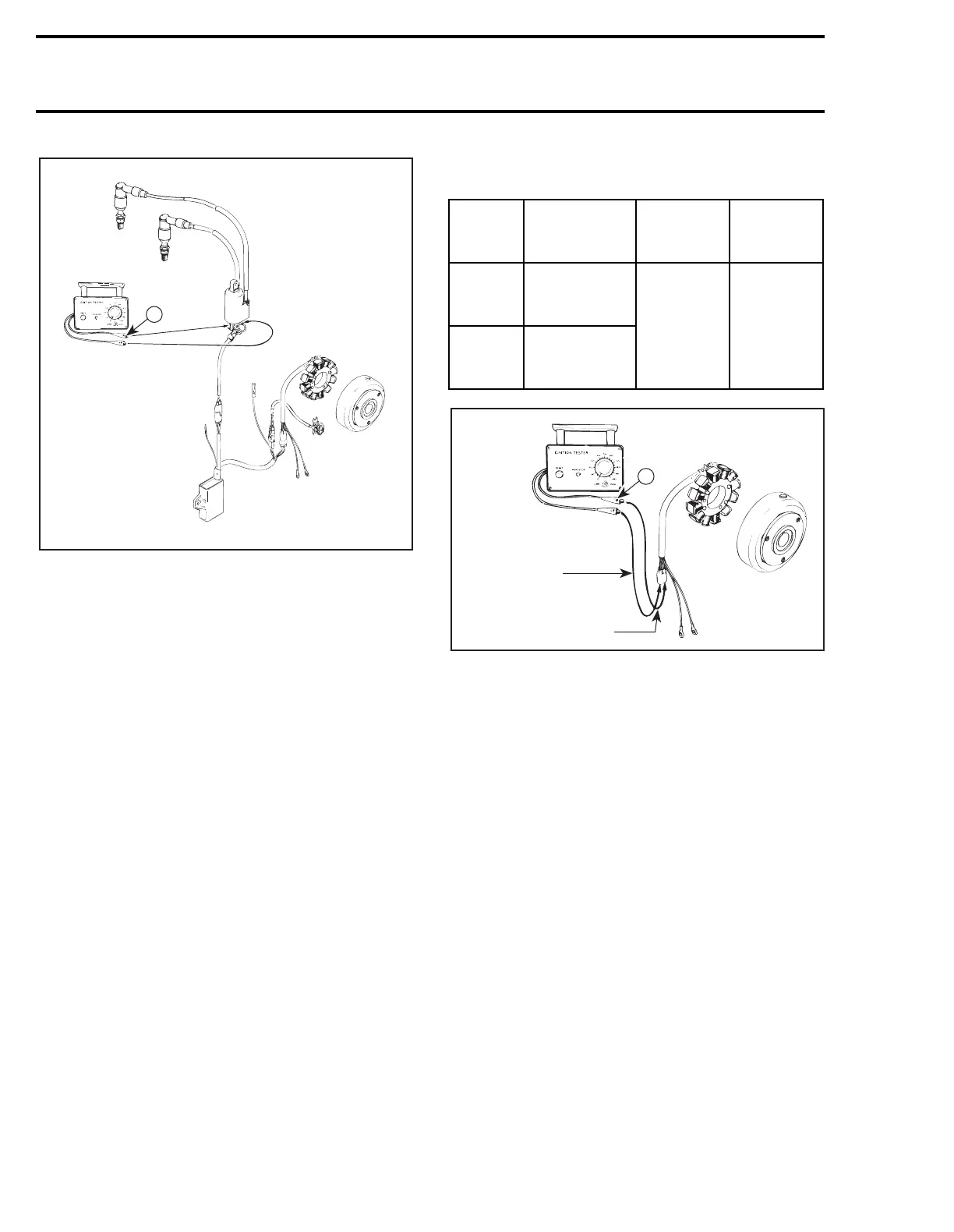

A15E0TA
N
Tester
wires
Component
wires
Tester
switch
position
Tester
dial
position
N
RED
wire of
magneto harness
LOW 85
P
BLACK/RED
wire of
magneto harness
N
A15E0UA
Red
Black/Red
'
To Next Page
