Section 05 ELECTRICAL
Sub-Section 06 (ELECTRIC STARTER)
05-06-8
TYPICAL

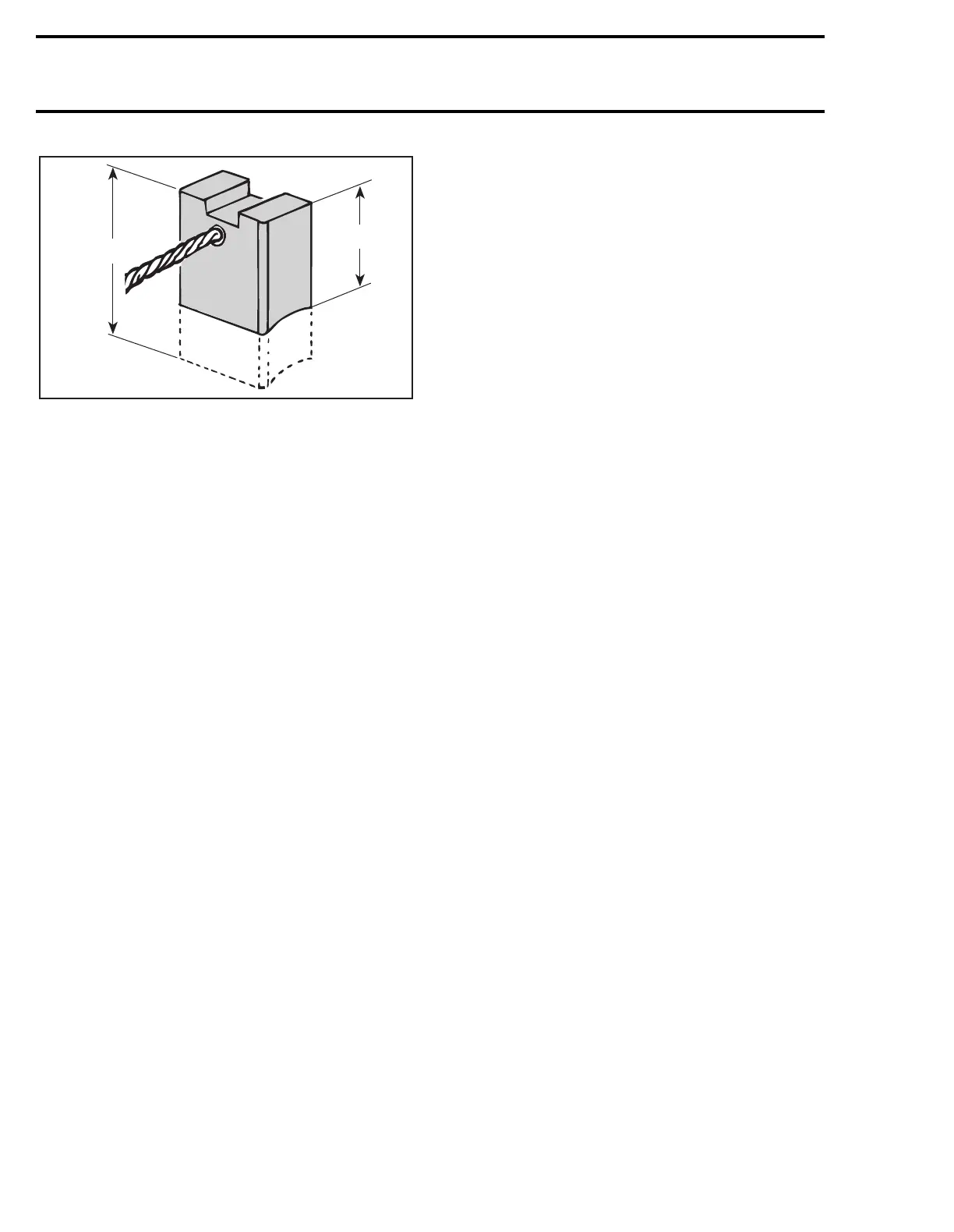

1. New
2. Wear limit
Overrunning Clutch
The pinion of the overrunning clutch should turn
smoothly in the clockwise direction, and should
not slip in a counterclockwise direction. If defec-
tive, replace.
Check the pinion teeth for wear and damage. If
defective, replace.
SOLENOID SWITCH
Inspect connections and clean as necessary. Sole-
noid switch condition can be checked with an
ohmmeter. Install test probes on
large
connec-
tors of solenoid when it is activated (+ on RED/
GREEN wire and — on solenoid body).
IMPORTANT:
No current must be present on
large cables when using ohmmeter, otherwise
meter could be damaged.
