SHOP MANUAL SUPPLEMENT
MX Zx 440 LC
PAGE 6 OF 18
Three radiators parallel cooling system.
The two main radiators
no. 1
are located in front
of the drive axle. These radiators are welded to
the frame.
The third radiator
no. 2
is located inside tunnel
and secured with rivets.
Recommended Coolant
Use a blend of 55% antifreeze with 45% water.
04 — TRANSMISSION 0
Refer to
1997 ski-doo Shop Manual
,
volume 2.
DRIVE PULLEY
Newly designed lighter TRA drive pulley is used.
Disassembly, assembly and adjustment proce-
dures are identical to MX Z 440 LC.

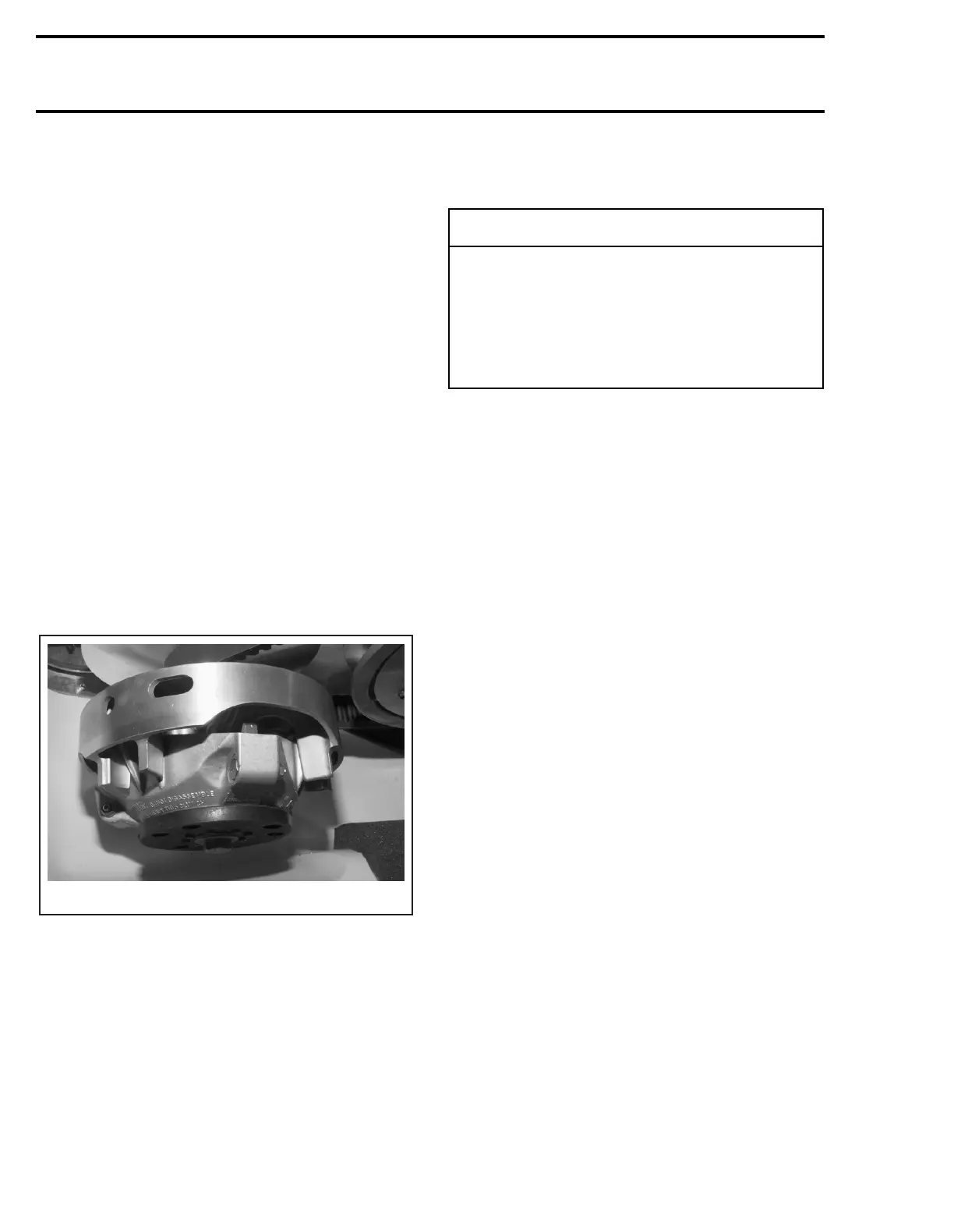

NEW DESIGNED LIGHTER TRA DRIVE PULLEY
DRIVEN PULLEY
1-position driven pulley mounted on a spline axle.
Perform fine tune alignment by adjusting engine
position.
BRAKE
Fixed
brake disc with racing type brake pad.
Brake hoses are reinforced.
-
CAUTION
To prevent rust formation or freezing condi-
tion, always fill up the system with 55% an-
tifreeze and 45% water. Pure antifreeze
without water freezes. Always use ethyl-glycol
antifreeze containing corrosion inhibitors
specially recommended for aluminum en-
gines.
A15D2XA
