Section 07 STEERING / FRONT SUSPENSION
Sub-Section 03 (SUSPENSION AND SKI SYSTEM)
07-03-2
ON-VEHICLE COMPONENT
REMOVAL
8, Shock
Lift front of vehicle and support off the ground.

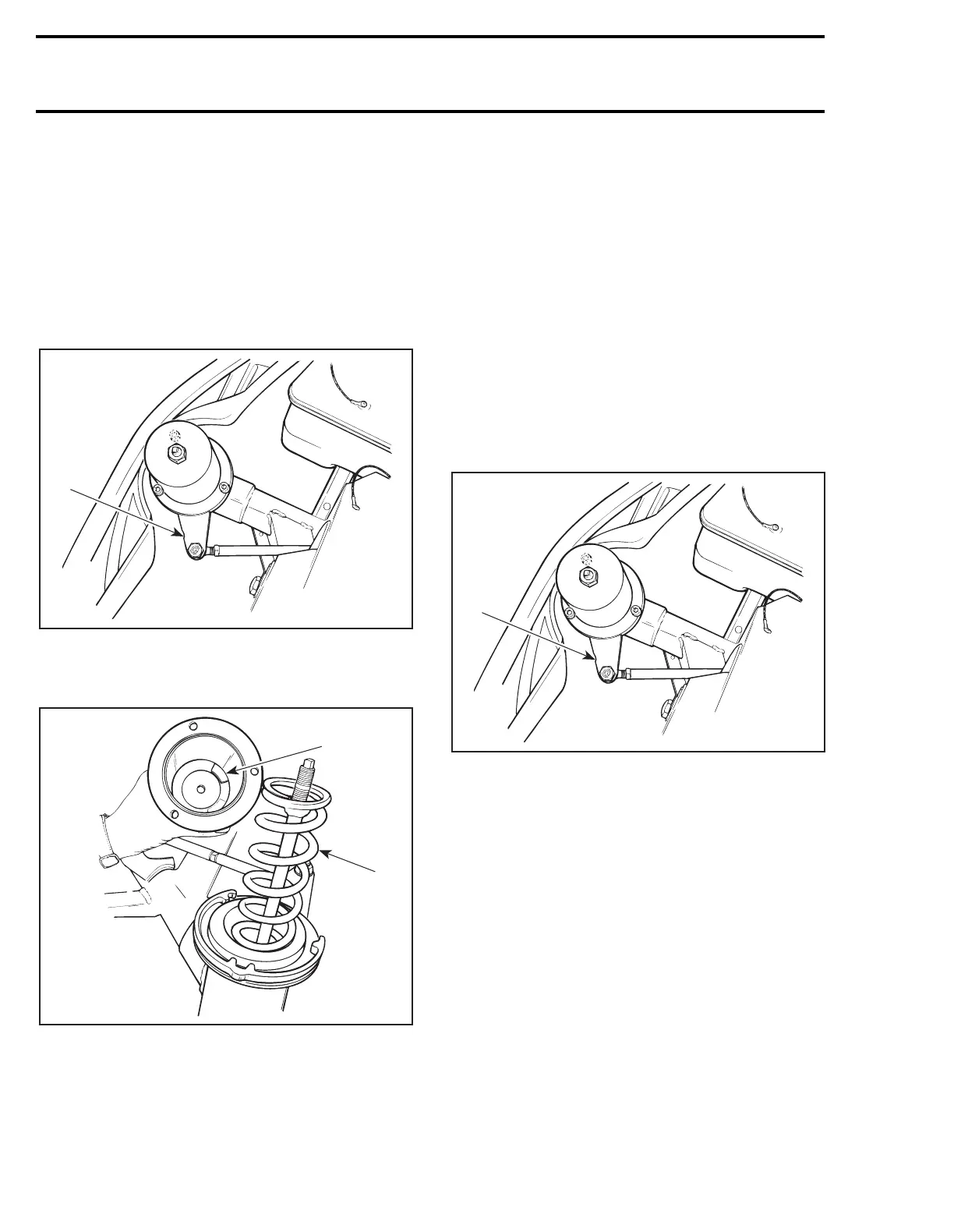

Unscrew shock piston pin nut then remove wash-
er. Unscrew 3 Allen screws retaining cover
no. 3
,
then remove stopper
no. 5
, washers
no. 6
, wash-
er
no. 7
.
1. Allen screws
NOTE :
These washers and stopper can be
wedged in cover.
1. Washers and stopper wedged in cover
2. Spring
Pull out spring then check shock as described be-
low in
inspection
.
Suspension Free Operation
Remove cover and check for free movement of
ski leg by lifting end of ski.
DISASSEMBLY
Lift front of vehicle and support off the ground.
1,2,3,5,6,7,9,11,12, Bolt, Lock Washer,
Cover, Stopper, Bushing and Nut
Remove ski bolt, nut, bushings and ski.
Unscrew shock piston pin nut then remove wash-
er. Shock with spring will fall off the ski leg.
Unscrew 3 Allen screws retaining cover, then re-
move stopper and washers.
1. Allen screws
NOTE :
These washers and stopper can be
wedged in cover.
A05G0CB
1
'
A05G0DA
2
1
A05G0CB
1
'
