Section 07 STEERING/FRONT SUSPENSION
Sub-Section 02 (STEERING SYSTEM)
07-02-3
To install, stick the heating element to the handle-
bar making sure the wires do not interfere with
operation of the accelerator or brake handle.
Heat the grip with a heater gun or a spot light to
ease installation. Insert new grip with a rubber
mallet.
INSPECTION
24, Heating Grip Element
Refer to TESTING PROCEDURE 05-06.
10,16, Ball Joint
(Left Hand and Right Hand Threads)
Inspect ball joint ends for wear or looseness, if ex-
cessive, replace them.

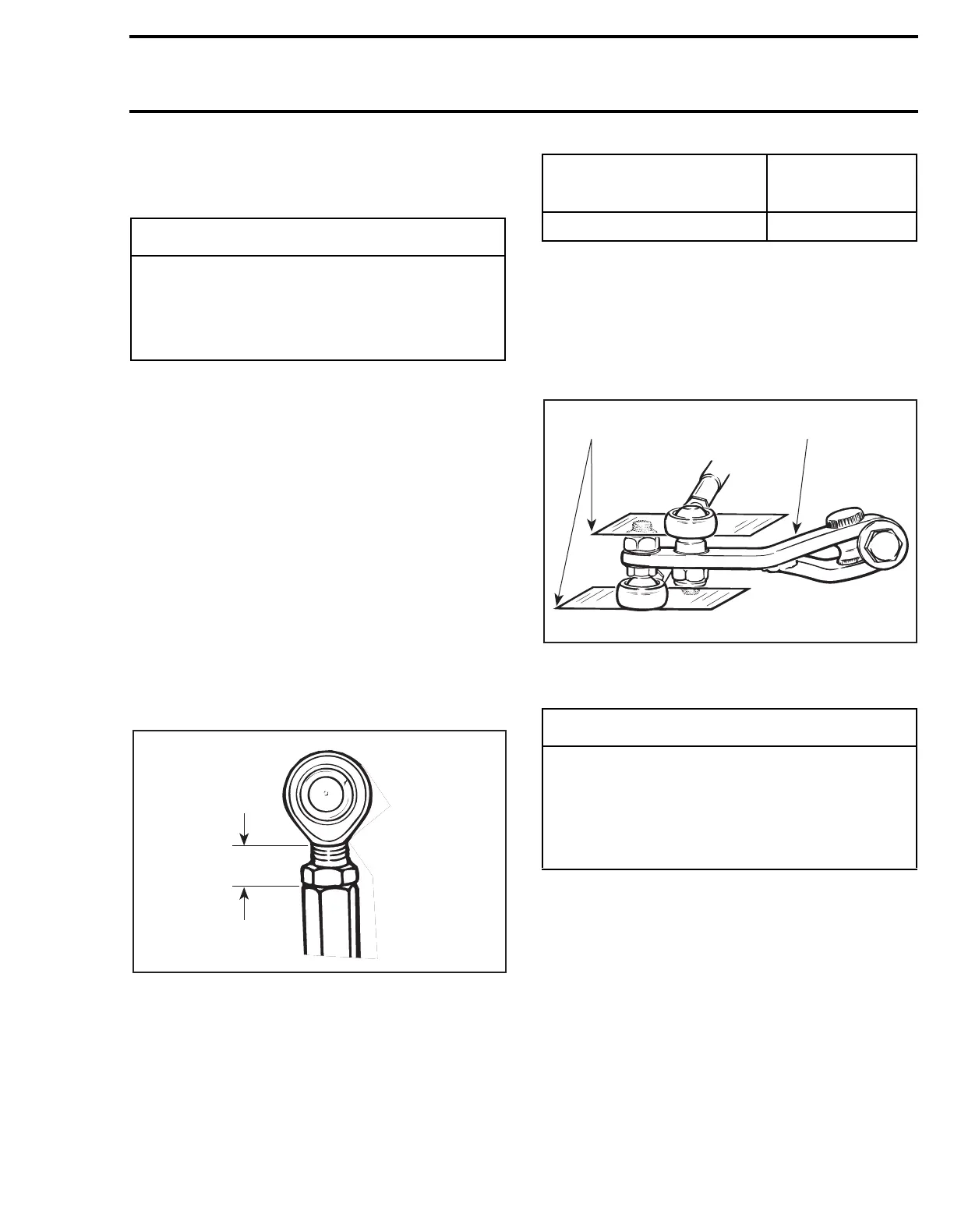

Screw threaded end of the ball joint into the tie
rod. The maximum external threaded length not
engaged in the tie rod must not exceed the value
L
in the following thread length chart:
TYPICAL
The ball joint should be restrained when tighten-
ing the tie rod end lock nut. Align it so the tie rod
end is parallel to the steering arm when assem-
bled on the vehicle, refer to the following illustra-
tion.
For proper torque specifications refer to the spe-
cific exploded view for the vehicle being serviced.
TYPICAL
1. Parallel with steering arm
2. Steering arm
â—†
WARNING
Never use lubricants (e.g. soap, only grease,
etc.) to install the handlebar grip, use a mix
of soap and water. Mix 40 parts of water with
one part of dish washing soap (recom-
mended: Ultra Joy, Sunlight or Palmolive).
A17G0SA
L
MODEL
L
mm (in)
All 20 (25/32)
â—†
WARNING
The cut off section of the ball joint must run
parallel with the steering arm. When tighten-
ing lock nuts, restrain ball joint with appro-
priate size wrench. Ensure not too many
threads are kept outside of the tie rod ac-
cording to the thread length chart.
A02G0IA
12
