Section 07 STEERING / FRONT SUSPENSION
Sub-Section 03 (SUSPENSION AND SKI SYSTEM)
07-03-3
4,13,14,16,17, O-ring, Ski Leg, Bushing
and Seal

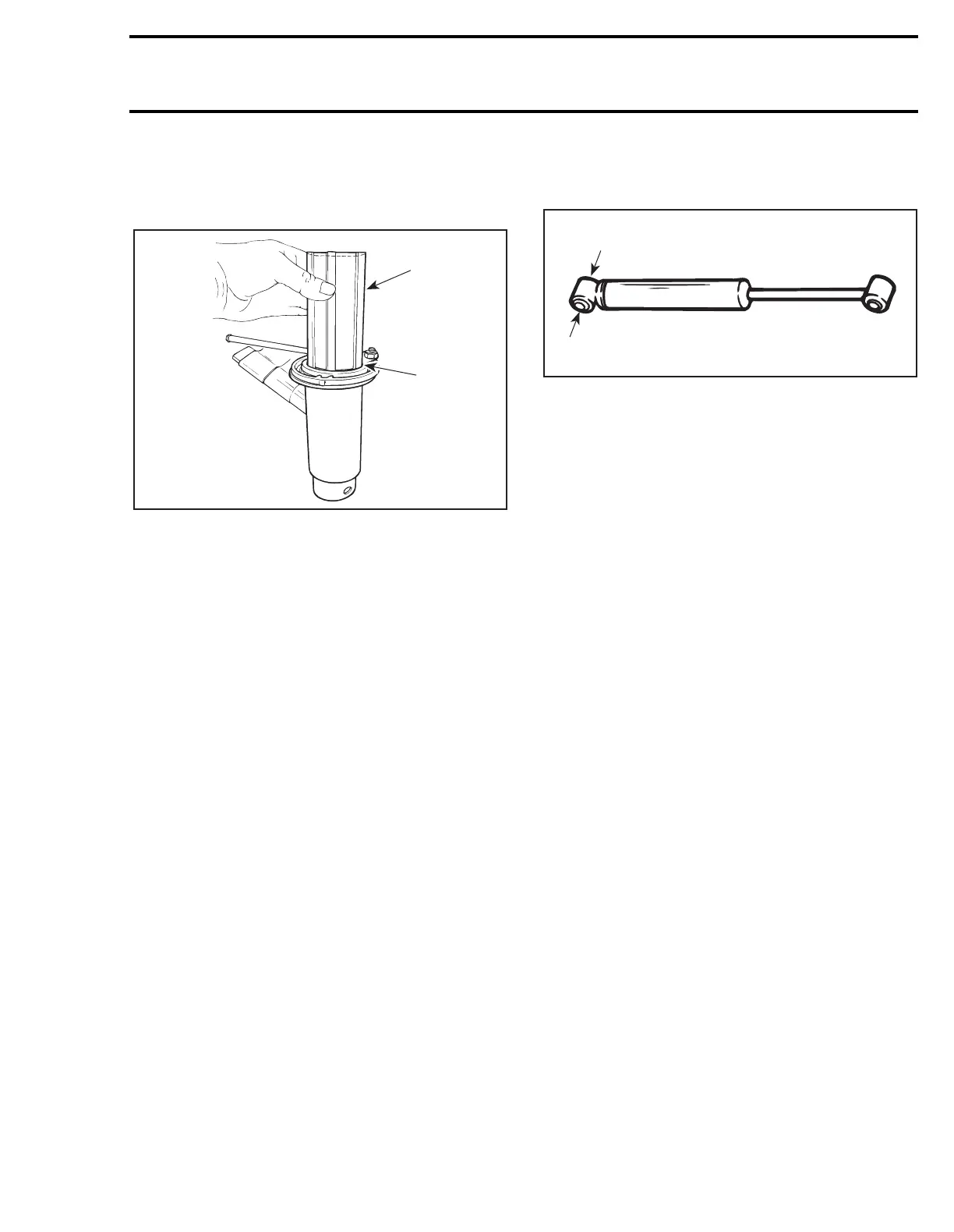

Pull up ski leg. Steering arm will not interfere.
1. Pull up ski leg
2. Steering arm in place
Remove seal and O-rings. Drive out bushing if
worn out.
INSPECTION
13, Ski Leg
Check straightness of ski leg. Check for scored or
scratched surface. Replace as required.
5, Stopper
Check condition of stopper. Replace it when dete-
riorated.
Grease Fitting
Ensure that grease fittings are not clogged.
10, Stopper
Check stopper for crack or deterioration. Replace
as required.
13, Ski Leg
Check that splines on ski leg and steering arm in-
terlock properly with no excessive free play. Re-
new as necessary.
8, Shock Absorber
Secure the shock body end in a vise.
1. Clamp
CAUTION : Do not clamp directly on
shock body.
Examine each shock for leaks. Extend and com-
press the piston several times over its entire
stroke checking that it moves smoothly and with
uniform resistance.
Pay attention to the following conditions that will
denote a defective shock :
– A skip or a hang back when reversing stroke at
mid travel.
– Seizing or binding condition except at extreme
end of either stroke.
– Oil leakage.
– A gurgling noise, after completing one full com-
pression and extension stroke.
Renew if any faults are present.
INSTALLATION
For assembly, reverse the disassembly proce-
dure. However, pay attention to the following.
Apply low temperature grease (P / N 413 7061
00) as illustrated in exploded view above.
Tighten nuts and screws to proper torque as men-
tioned in exploded view.
A05G0EA
2
1
A14F0BA
1
