Section 04 TRANSMISSION
Sub-Section 03 (DRIVE PULLEY)
04-03-3
To Remove Drive Pulley Ass’y:
Retain drive pulley with clutch holder.
Install puller in pulley shaft then tighten.
DISASSEMBLY
1,2, Screw and Ring Gear
5,6, Fixed and Sliding Half

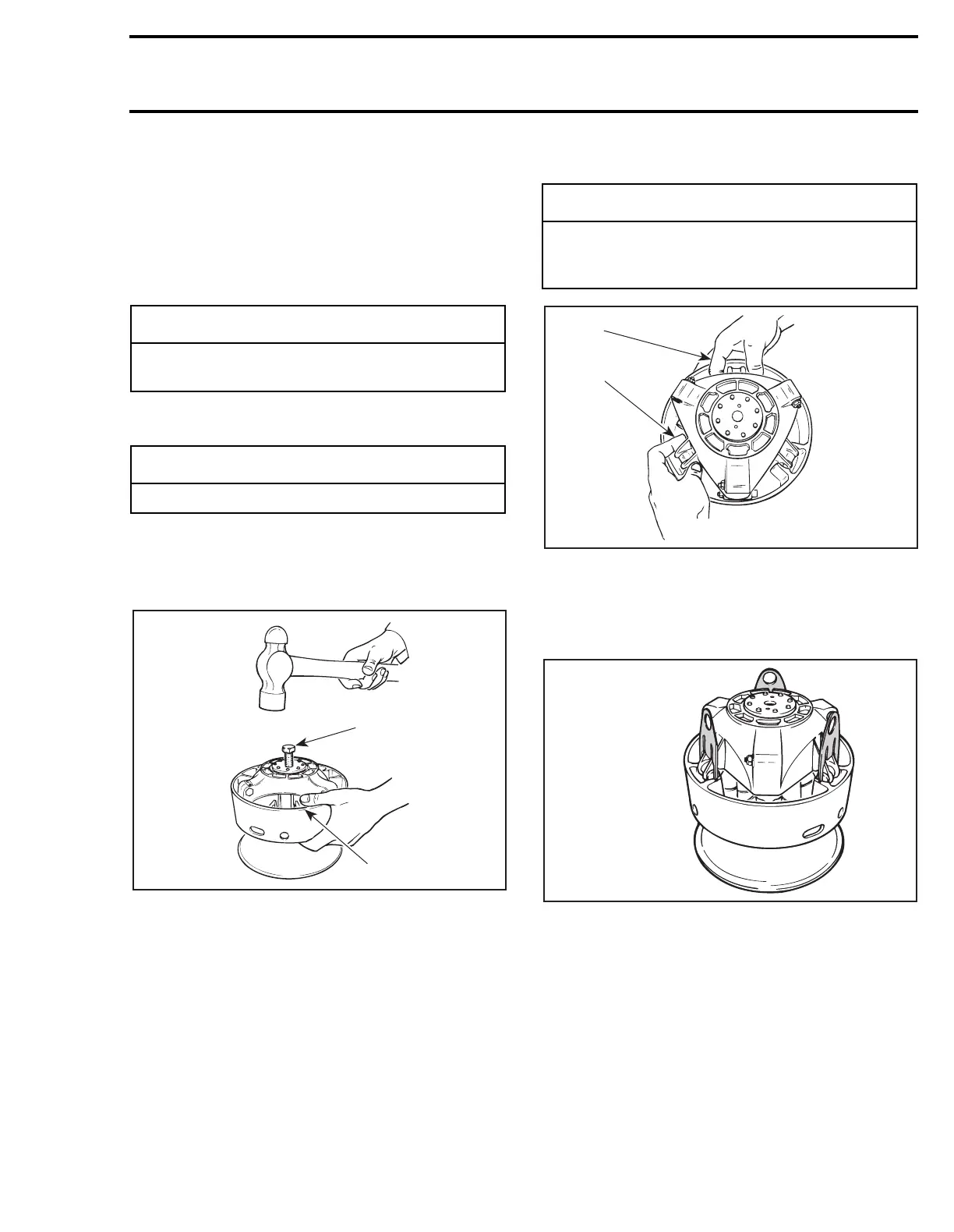

Screw puller into fixed half shaft about 13 mm (1/2
in). Raise drive pulley and hold it by the sliding half
while knocking on puller head to disengage fixed
half.
1. Puller
2. Holding sliding half
NOTE:
No components marking is required
before disassembling this drive pulley since
it has factory mark and arrows as indexing refer-
ence.
25,29, Slider Shoe and Governor Cup
Carefully lift governor cup until slider shoes come
at their highest position into guides.
Hold a slider shoe set then carefully lift its housing
and remove them. Proceed the same way for other
housings lifting one at a time.
32, Cushion Drive
1. Hold slider shoes
2. Lift one housing at a time
NOTE:
To ease disassembly, forks (P/N 529
0055 00) should be used to hold slider shoes
prior to removing governor cup.
-
CAUTION
Retaining screws must be heated before dis-
assembly.
-
CAUTION
Do not tap on governor cup.
A16D01A
1
2
-
CAUTION
Do not disassemble cushion drive. Governor
cup and cushion drive are factory balanced
as an assembly.
A16D02A
1
2
A16B02A
529 0055 00
To Next Page
