Section 06 REAR SUSPENSION
Sub-Section 02 (SC-10 SUSPENSION (HP VERSION))
06-02-6

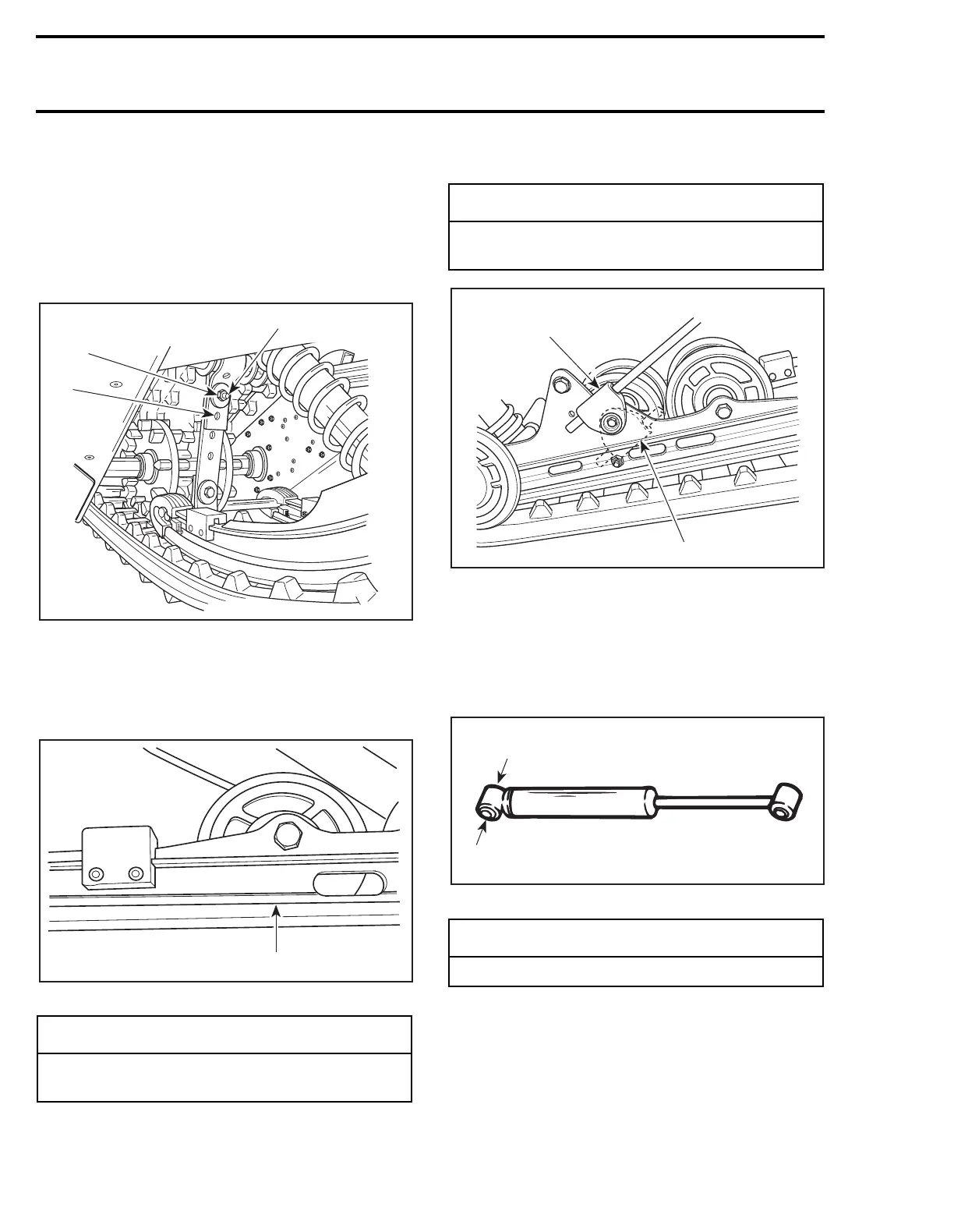

20, Stopper Strap
Inspect strap for wear or cracks, bolt and nut for
tightness. If loose, inspect hole for deformation.
Replace as required. Make sure it is attached
through proper hole from the end. Refer to TECH-
NICAL DATA 09-03. Torque nut to 11 N•m (97
lbf•
in
).
1. 1
st
hole
2. 2
nd
hole
A. 11 N•m (97 lbf•in)
17, Slider Shoe
Replace slider shoes when it is worn to the line.
1. Wear limit line
18, Spring Support
RIGHT SIDE SHOWN
1. Right position: upward
2. Wrong position
SHOCK ABSORBER INSPECTION
Secure the shock body end in a vise with its rod
upward.
1. Clamp
NOTE:
Gas pressurized shocks are light gray
painted.
Gas shock can be inspected as follows:
Because of gas pressure, strong resistance is felt
when compressing shock. When released, the
shock will extend unassisted. Renew as required.
-
CAUTION
Slider shoes must always be replaced in
pairs.
A03F0QA
A
1
2
A03F0YA
1
-
CAUTION
To avoid track damage, spring supports
must be mounted upward.
-
CAUTION
Do not clamp directly on shock body.
A03F0VA
1
2
A14F0BA
1
