Section 03 ENGINE
Sub-Section 05 (CDI SYSTEM)
03-05-4

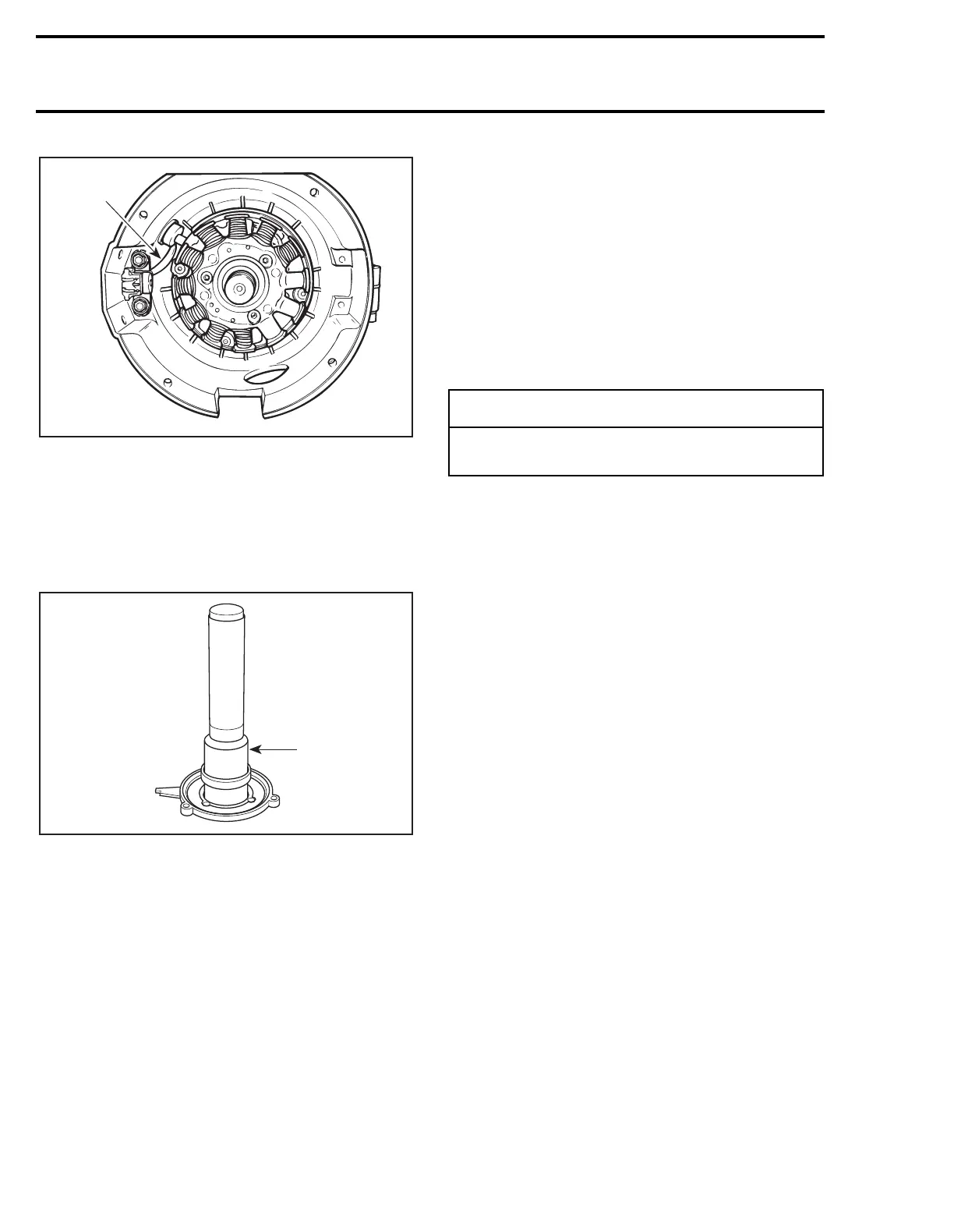

1. Trigger coil harness
ASSEMBLY
3, Oil Seal
Use pusher (P/N 420 8765 14) to install oil seal
into stator.
2,5, Magneto Flywheel and Nut
Clean crankshaft extension (taper) and apply Loc-
tite 242 (blue) on taper, then position Woodruff
key, flywheel and lock washer on crankshaft.
Clean nut threads and apply Loctite 242 (blue)
then tighten nut 125 N•m (92 lbf•ft) for 454, 494
and 670 engines. Tighten nut to 105 N•m (77
lbf•ft) for 583 engine.
At reassembly coat all electric connections with
silicone dielectric grease (P/N 413 7017 00) to pre-
vent corrosion or moisture penetration.
Ignition Timing
Check as described in IGNITION TIMING 05-03.
A15E0OA
1
A06C1BA
420 8765 14
-
CAUTION
Do not use silicone “sealant”, this product
will corrode contacts.
