Section 06 REAR SUSPENSION
Sub-Section 04 (DRIVE AXLE)
06-04-3
1. Pipe
Tundra II LT
TYPICAL
1. Chaincase side
S-Series
A. 155.4 mm (6-1/8 in)
B. 278.4 mm (10-31/32 in)
All Models

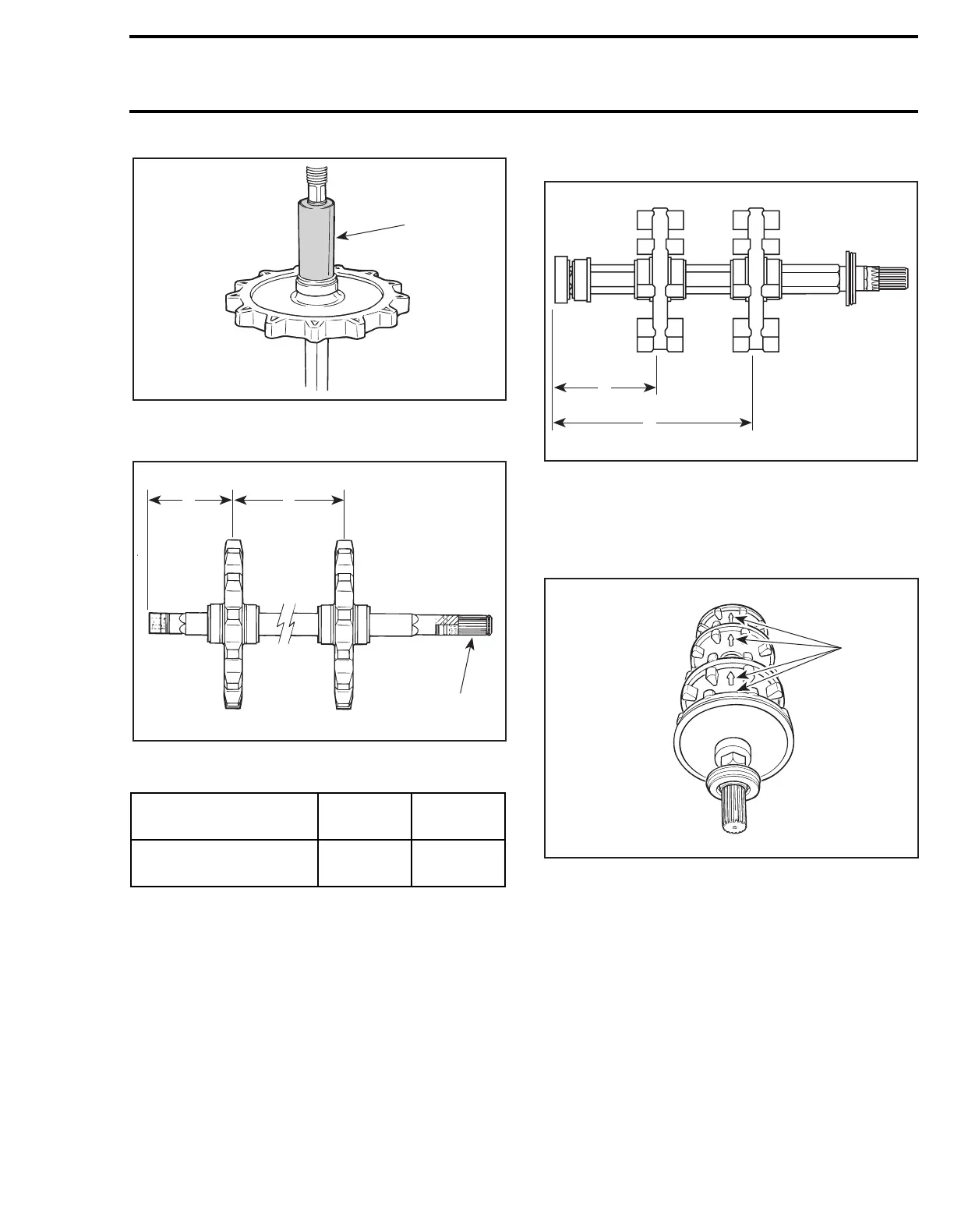

Ensure to align indexing marks of each sprocket
when assembling.
TYPICAL
1. Indexing marks aligned
The maximum desynchronization for the sprock-
ets is 1.5 mm (1/16 in).
To check this tolerance, place axle assembly on a
plane surface and measure the gap between
sprocket tooth and surface.
APPLICABLE MODEL
A
mm (in)
B
mm (in)
Tundra II LT
83
(3-17/64)
242
(9-17/32)
A00F07A
1
A00F08A
B
1
A
B
A
A03F1DA
A
BB
A
A24D05A
1
