Section 07 STEERING / FRONT SUSPENSION
Sub-Section 02 (STEERING SYSTEM)
07-02-6
CAMBER:
A specific inward or outward tilt angle of ski leg
compared to a vertical line when viewing vehicle
from front.
This angle is not adjustable on these
models.
Adjustments
TOE-OUT
Tundra II LT
Adjustments should be performed following this
sequence:
– Pivot arm centering/horizontal handlebar.
– Set toe-out.

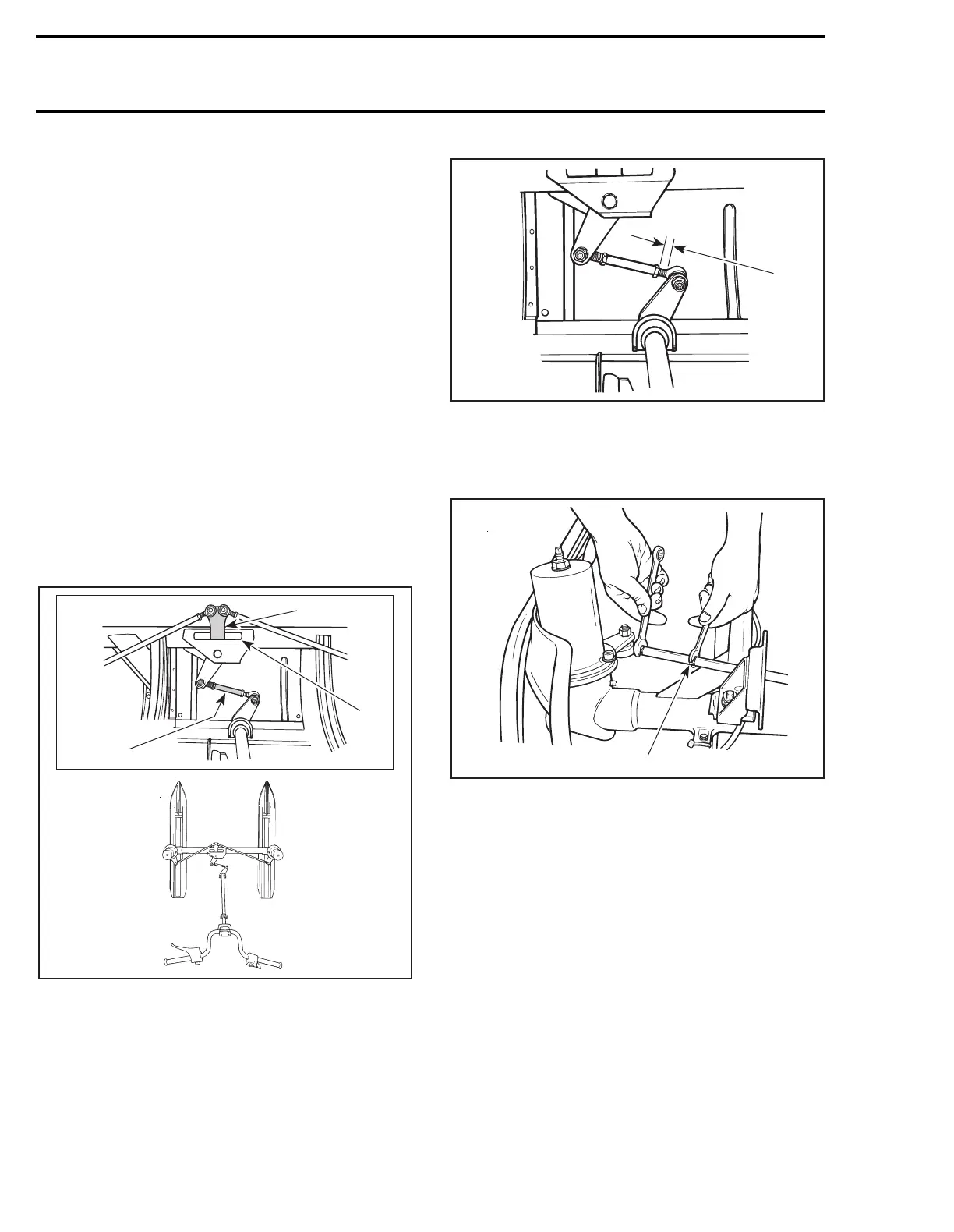

PIVOT ARM CENTERING/HORIZONTAL
HANDLEBAR
Turn handlebar until pivot arm is well centered in
slot of its bracket.
Check if handlebar is horizontal. To adjust, loosen
lock nuts of short tie rod and turn it accordingly.
1. Pivot arm centered in slot
2. Slot
3. Turn to adjust
WARNING : Maximum ball joint external
threaded length not engaged in the tie rod
end must not exceed 15 mm (19/32 in). Torque
lock nut to 20 N•m (15 lbf•ft).
A. 15 mm (19/32 in) max.
Restrain tie rod while firmly retighten nuts so that
ball joint sockets run parallel with steering arm
and pivot arm.
LONG TIE ROD SHOWN
1. Restrain tie rod to tighten lock nuts
WARNING : Ball joint sockets must run
parallel with steering arm and pivot arm.
Tie rod must be restrained when tightening
lock nuts.
3
A05G0KA
1
2
;
A05G07A
A
A05G08A
1
;
