Section 06 REAR SUSPENSION
Sub-Section 04 (DRIVE AXLE)
06-04-4
9,13, Sprocket and Half-Sprocket

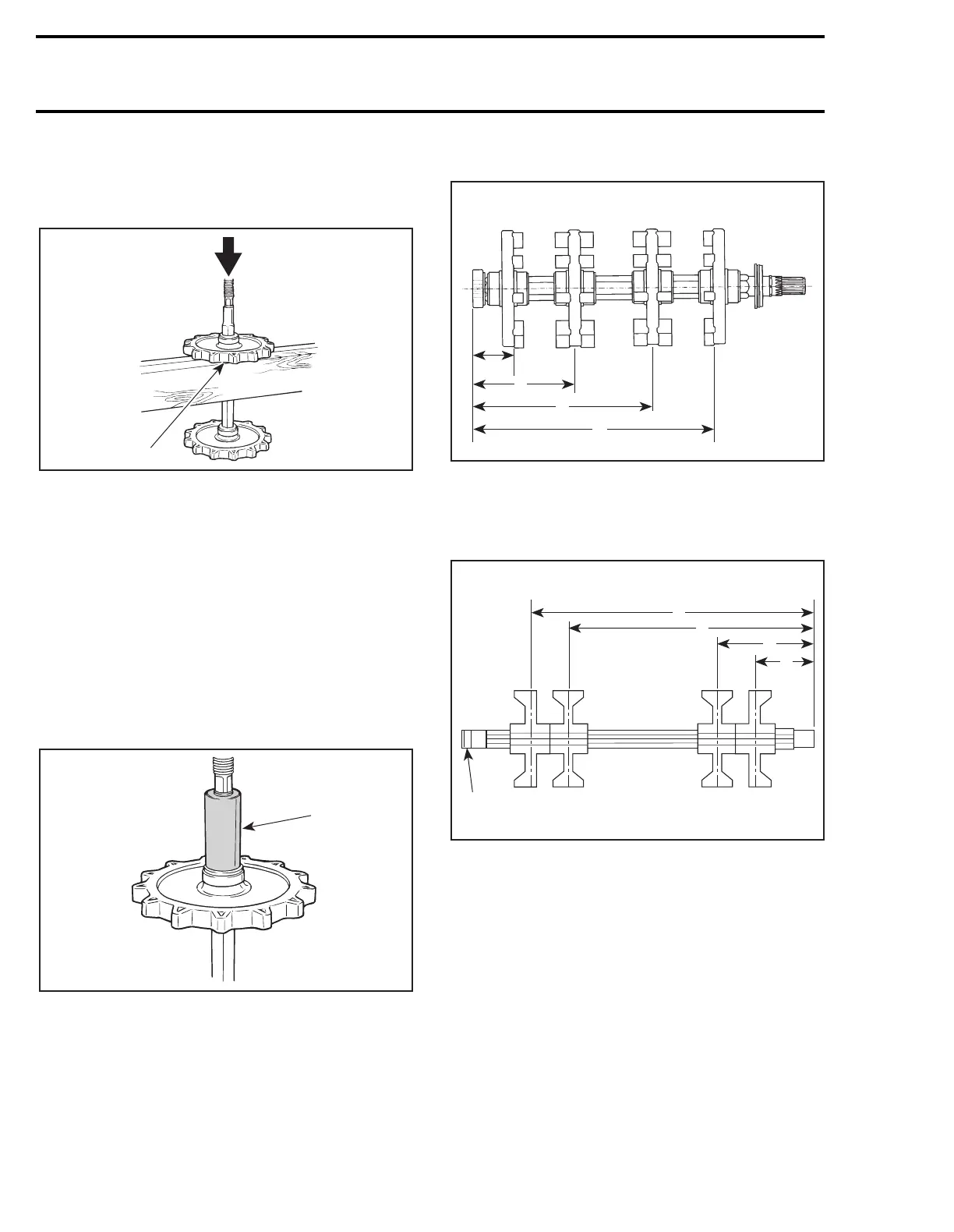

To remove press fit sprockets, use a press and a
suitable support as illustrated.
TYPICAL
1. Support sprocket near hub
NOTE:
Two different types of sprocket
press fit can be found. Ensure to replace ring
reinforced sprockets with the same type.
ASSEMBLY
8,9,13, Drive Axle and Sprocket
To assemble press fit sprockets, use a press and
a suitable pipe as illustrated. Sprockets must be
assembled according to the following dimen-
sions.
1. Pipe
S-Series
A. 65.8 mm (2-19/32 in)
B. 159.3 mm (6-17/64 in)
C. 282.3 mm (11-7/64 in)
D. 375.8 mm (14-51/64 in)
Skandic WT/SWT/WT LC
1. Gearbox side
A. 93 mm (3-21/32 in)
B. 156.5 mm (6-5/32 in)
C. 398.5 mm (15-11/16 in)
D. 462 mm (18-3/16 in)
All Models
Ensure to align indexing marks of each sprocket
when assembling.
A00F06A
1
'
A00F07A
1
A06D1XA
A
BB
C
D
A22D18A
B
C
D
1
A
