CONNECTION OF REMOTE I/O
Two 9-pin “D” type connectors are mounted on the rear panel that provides REMOTE-
INPUT-OUTPUT control and information. These connectors mate with standard 9 pin
D-sub-miniature connector provided by the user. The output mates to a male (plug)
connector while the input mates to a female (receptacle) connector. For best
performance, a shielded cable should be used. To avoid ground loops the shield should
not be grounded at both ends of the cable. Suggested AMP part numbers for
interconnecting to the Remote I/O are shown below:
205204-4 PLUG SHELL WITH GROUND INDENTS
205203-3 RECEPTACLE SHELL
745254-7 CRIMP SNAP-IN PIN CONTACT (for plug)
745253-7 CRIMP SNAP-IN SOCKET CONTACT (for receptacle)
745171-1 SHIELDED CABLE CLAMP (for either plug or receptacle)
747784-3 JACKSCREW SET (2)
Remote Interface Rear Panel

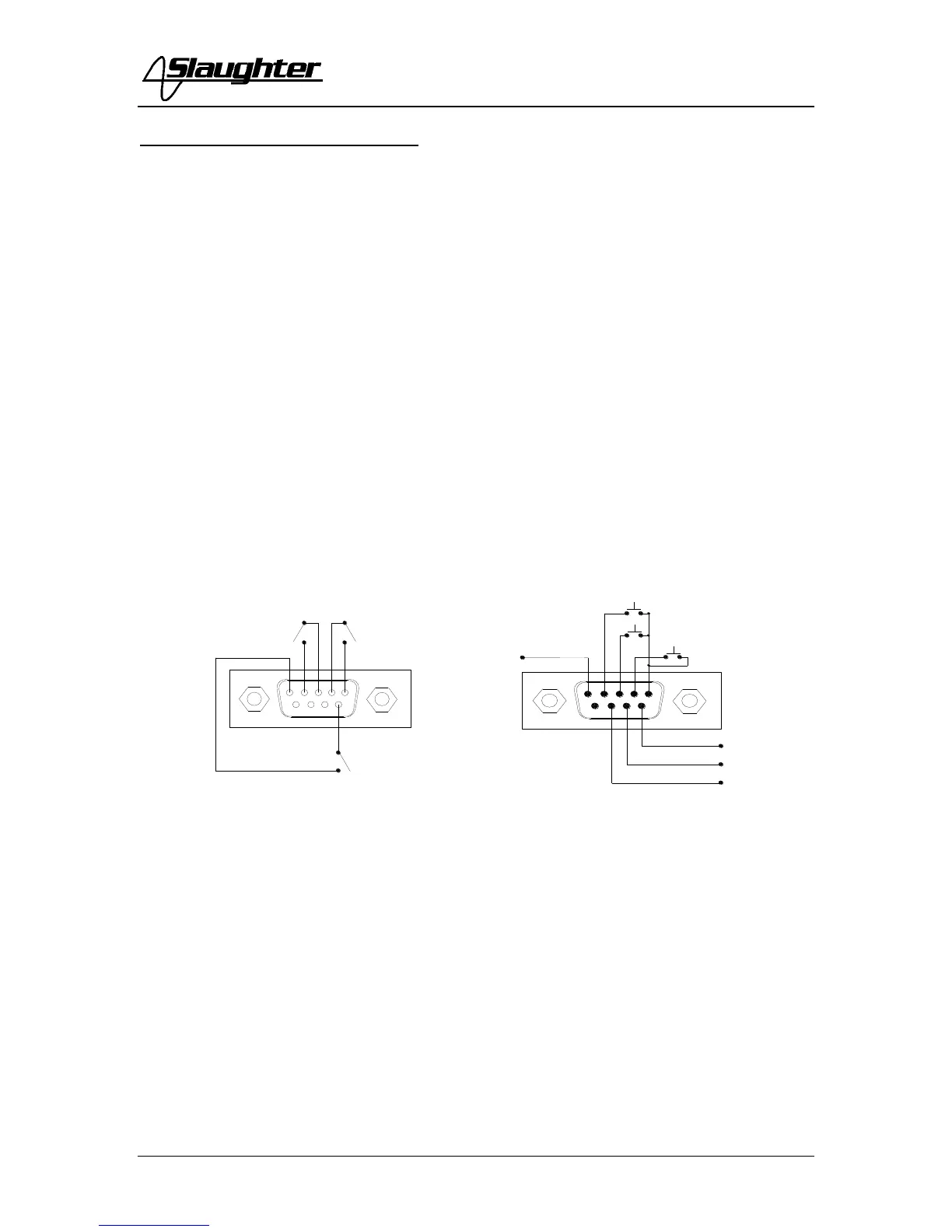

SIGNAL OUTPUTS ON REMOTE I/O
The rear panel connector provides output signals to remotely monitor PASS, FAIL, and
PROCESSING conditions. These signals are provided by three normally open internal
relays that switch on to indicate the current condition of the tester. These are normally
open free contacts and will not provide any voltage or current. The ratings of the
contacts are 1A / 250 VAC ( 0.5 ADC ). Below is a listing that indicates what conditions
activate each pin. When a terminal becomes active, the relay closes thereby allowing the
external voltage to operate an external device.
Pins 1 and 2 provide the PASS signal.
Pins 3 and 4 provide the FAIL signal.
Pins 5 and 6 provide the PROCESSING signal.
BIT 2
COMMON
BIT 1
6
9
SIGNAL INPUT
1
BIT 3
5
INTERLOCK
TEST
RESET
SIGNAL OUTPUT
PROCESSING
5
9
FAIL
1
6
PASS
