OPERATION

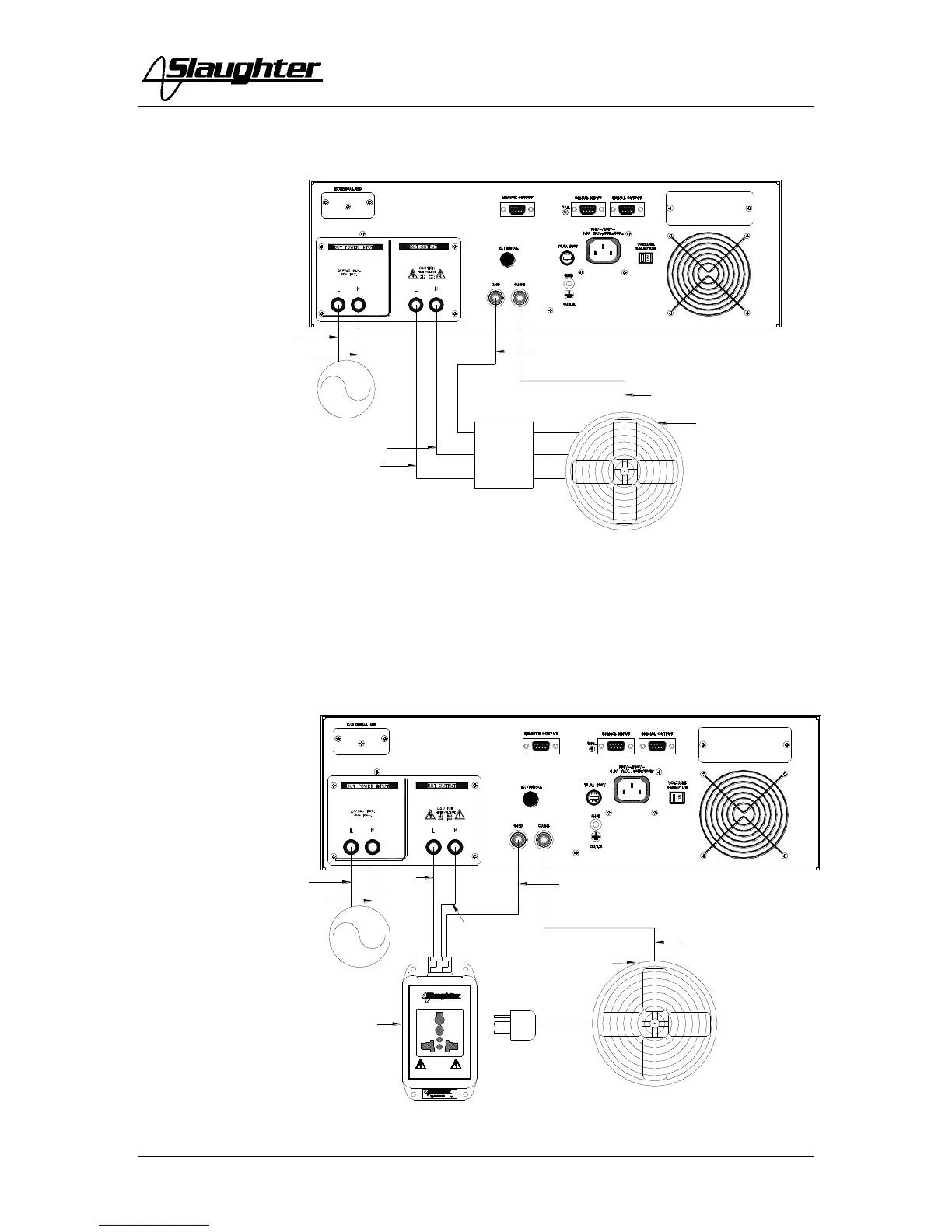

The following diagram shows how to connect the stand alone test leads to the 6330 and to
the device under test:
99-10471-01 LINE
99-10472-01 NEUTRAL
99-10468-01 EARTH GROUND
99-10457-01
LINE CONNECTIONS
DUT
CHASSIS
DUT I.E. AC FAN
99-10470-01 NEUTRAL
99-10469-01 LINE
AC SOURCE
0-277VAC
YOUR
TEST
FIXTURE
Adapter Box connections
In addition to the stand-alone test leads, the instrument also comes with an adapter box.
The adapter box allows the user an easy way to connect an item that is terminated in a
three-prong line cord. Note: the adapter box may only be connected to the rear panel of
the 6330. The following diagram shows how to connect the adapter box to the 6330 and
to the device under test.
LINE
NEUTRAL
99-10467-01
99-10457-01
LINECORD
DUT
CHASSIS
DUT I.E. AC FAN
CAUTION
HIGH VOLTAGE
5KVAC MAX.
6KVDC MAX.
20A MAX. LINE CURRENT.
NL
EARTH GROUND
99-10469-01 LINE
99-10470-01 NEUTRAL
AC SOURCE
0-277VAC
To Next Page
