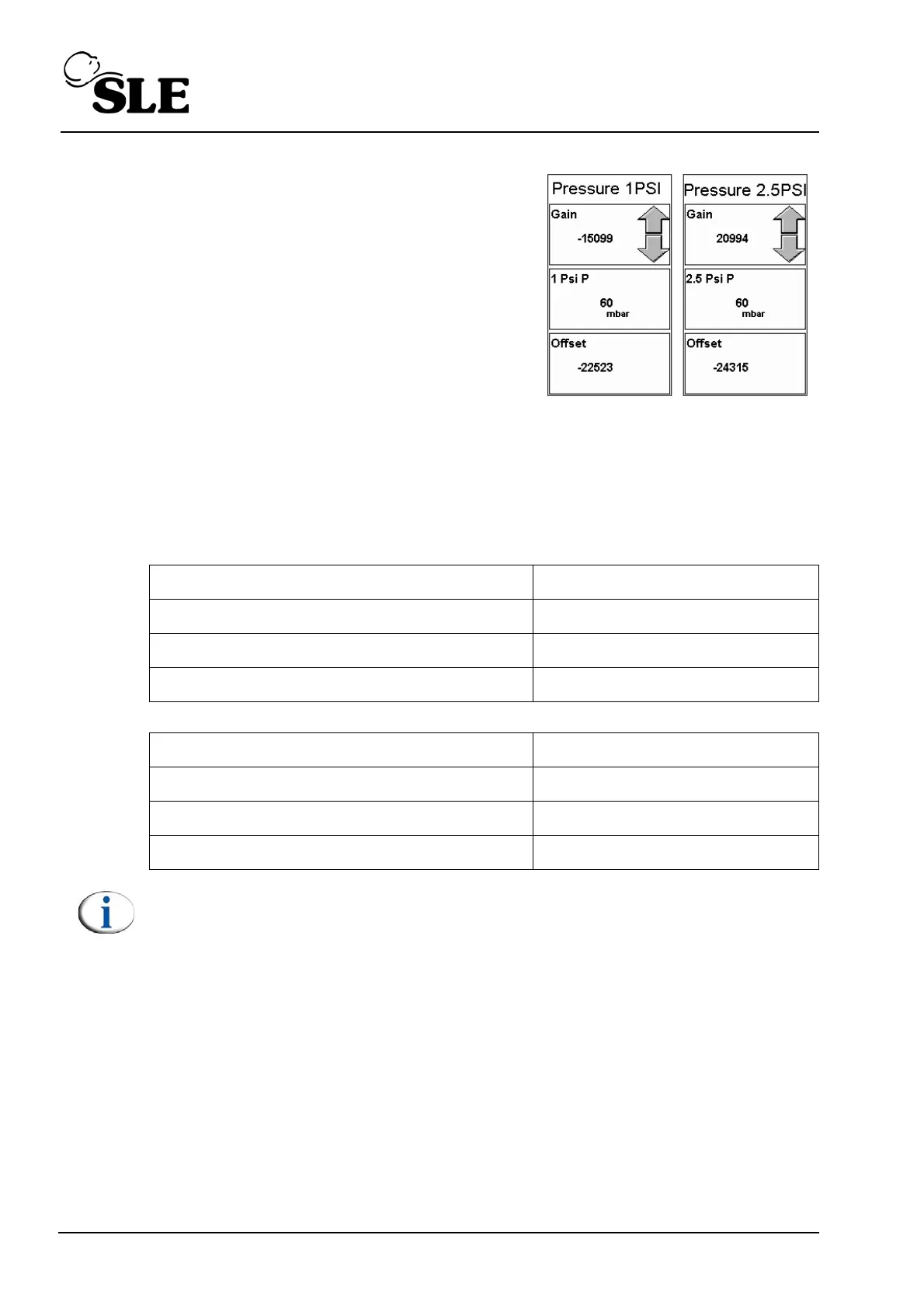

j) Enter Sensor Calibration screen and
adjust the gain of both the pressure
sensors so that the 1psi and the 2.5psi
pressure transducers agree with each other
and with the Calibration Analyser.
Acceptable tolerance: ±1mbar.
k) Go to Jet Calibration screen and set the PIP as specified in PIP Pressure
Setting column of the table below.
l) Re-enter sensor calibration screen and check that the sensor readings (at 1
and 2.5 psi) agree with Calibration Analyser within the set tolerance.
Note: The set values may not correspond with the Calibration Analyzer
Reading
PIP Pressure Setting (1 PSI sensor) Tolerance
60 ± 1 mbar
30 ± 1 mbar
10 ± 1 mbar
PIP Pressure Setting (2.5 PSI sensor) Tolerance
60 ± 1 mbar
30 ± 1 mbar
10 ± 1 mbar
