5. ENGMODE
The SLE5000 ventilator is calibrated via two calibration programs, one for the
ventilator and one for the Touch screen. The calibration programs are accessed
via the Controller Services panel in the user interface.

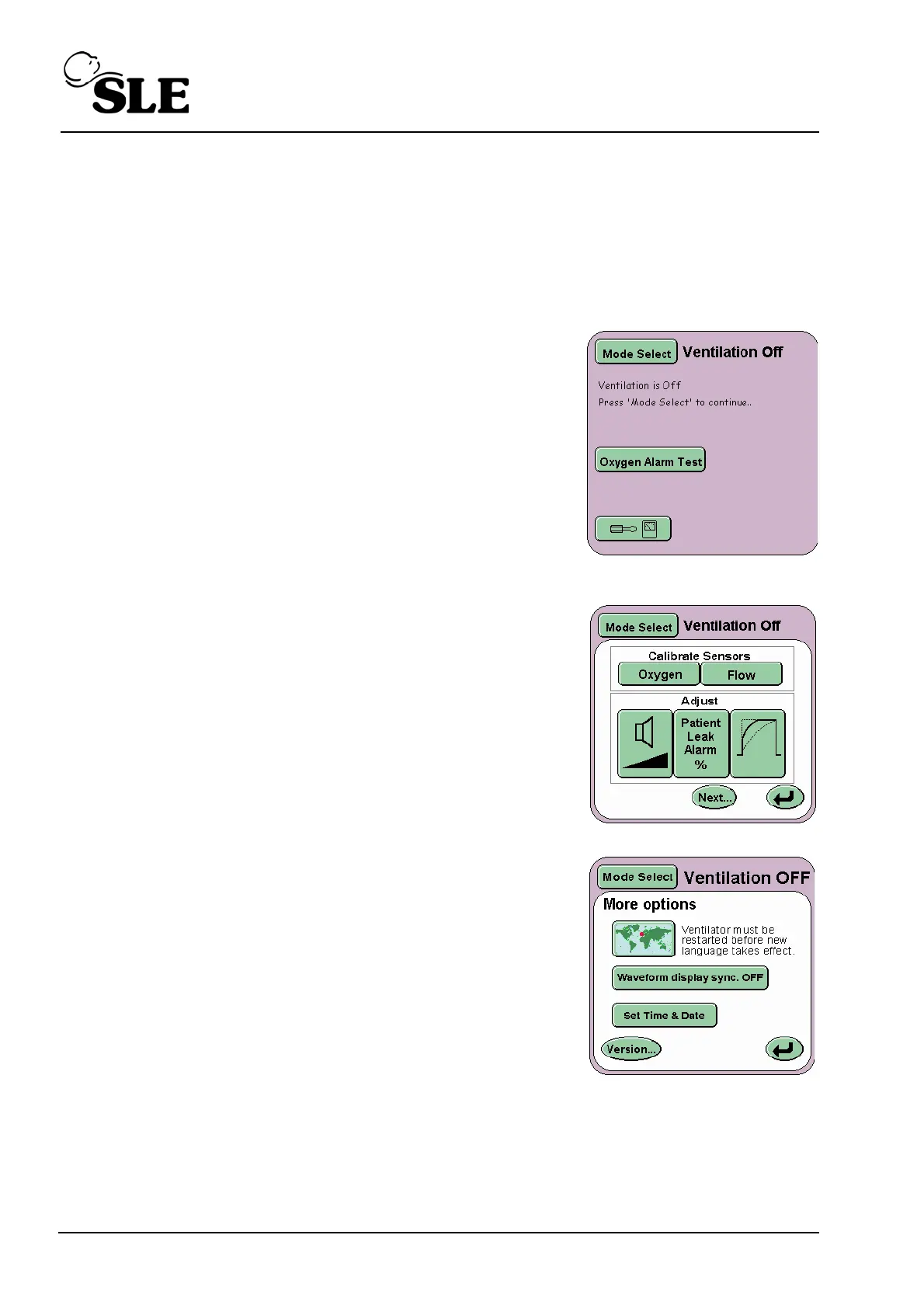

5.1 Accessing the Calibration Programs
Step 1 Press the Options and Service Data
Button.
Step 2 Press the Next button.
Step 3 Press the Version button.

