SLE SLE5000 Model J - 5.2 Ventilator Calibration Program

Page 26 (Model J)

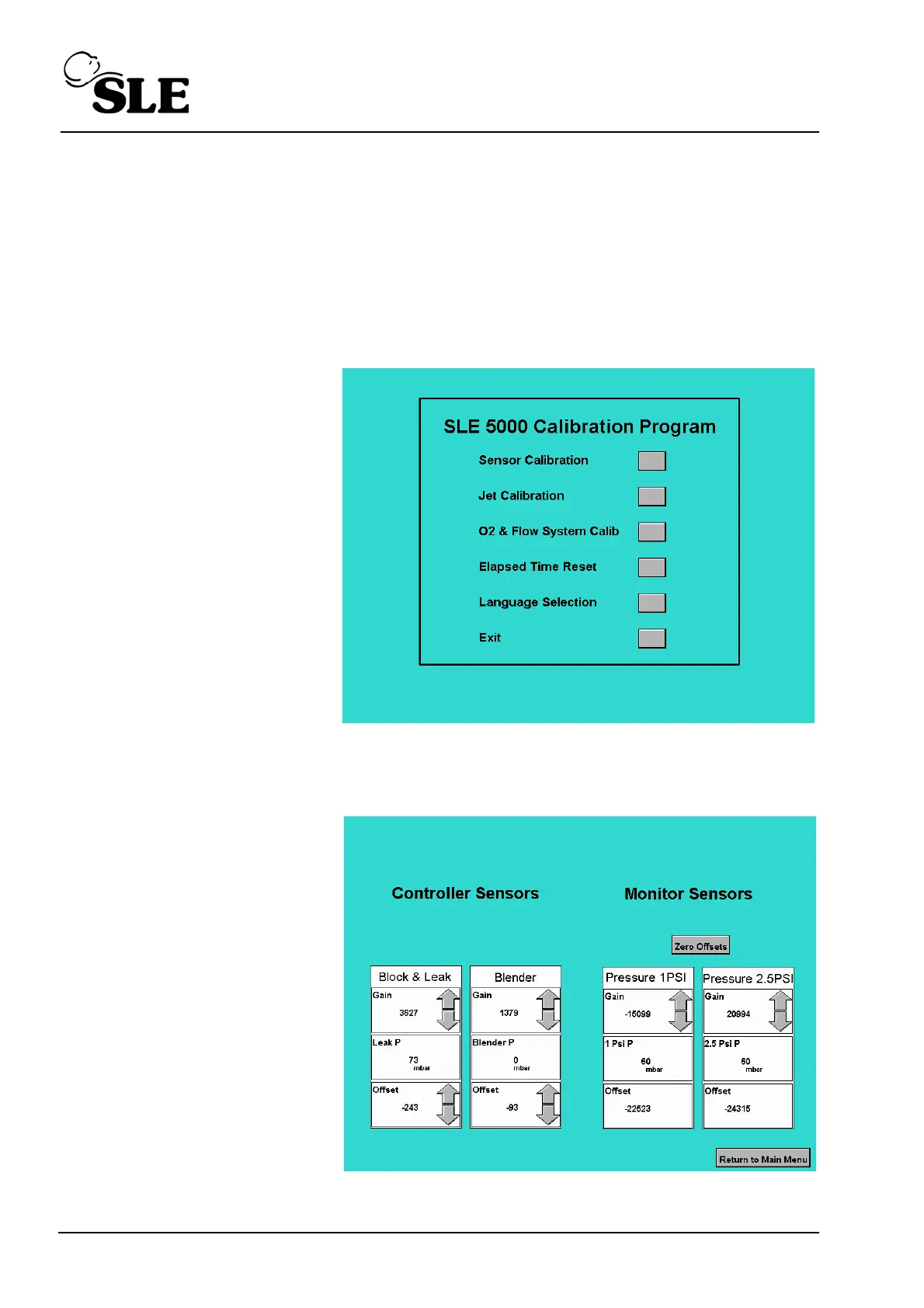

5.2 Ventilator Calibration Program
The calibration program has four main functions.
1. Sensor Calibration
2. Jet Calibration
3. O
2
& Flow System Calibration
4. Elapsed Time Reset.
5. Language Selection
6. Exit
5.2.1 Sensor Calibration
The sensor calibration panel allows the following sensors to be calibrated.
Controller
The setting of the
block and leak sensor
offset and gain.
The setting of the
blender sensor offset
and gain.
Monitor
The setting of the
blender sensor gain.
