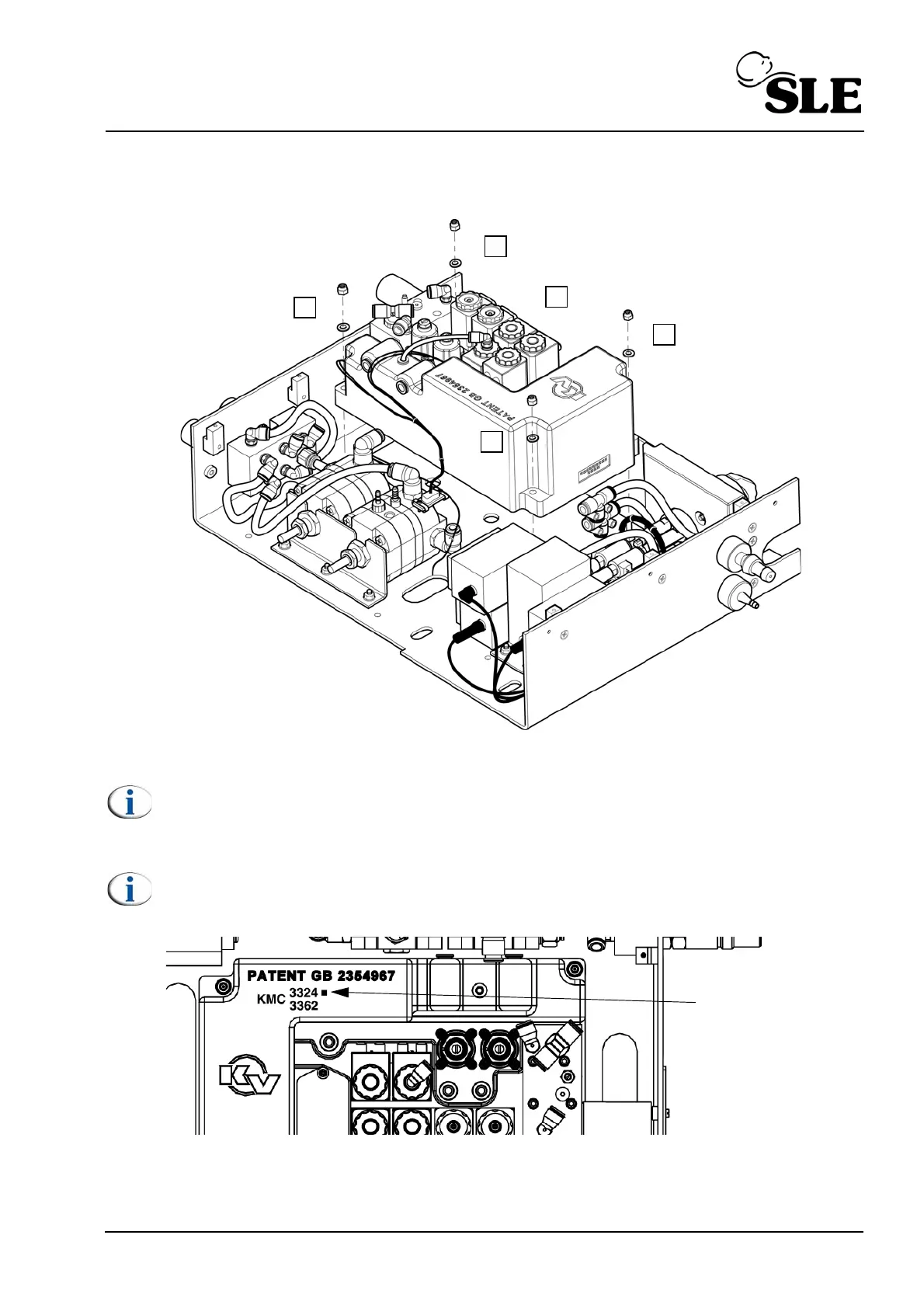

2. Remove the nuts and washers (I) to release the blender manifold assembly (J).
3. Lift the manifold assembly (J) off the four chassis studs.
Note: Leave the old oxygen cell fitted to the assembly. This is to stop any
debris entering the oxygen cell manifold.
4. Assembly is reversal of removal.
Note: Ensure that the replacement blender manifold is marked KMC3324, via
the red dot.
Setup: Pneumatic setup and full system calibration is required for this component.

I



I
I
I

J
Red dot
