SLE SLE5000 Model J - Page 53

(Model J) Page 53

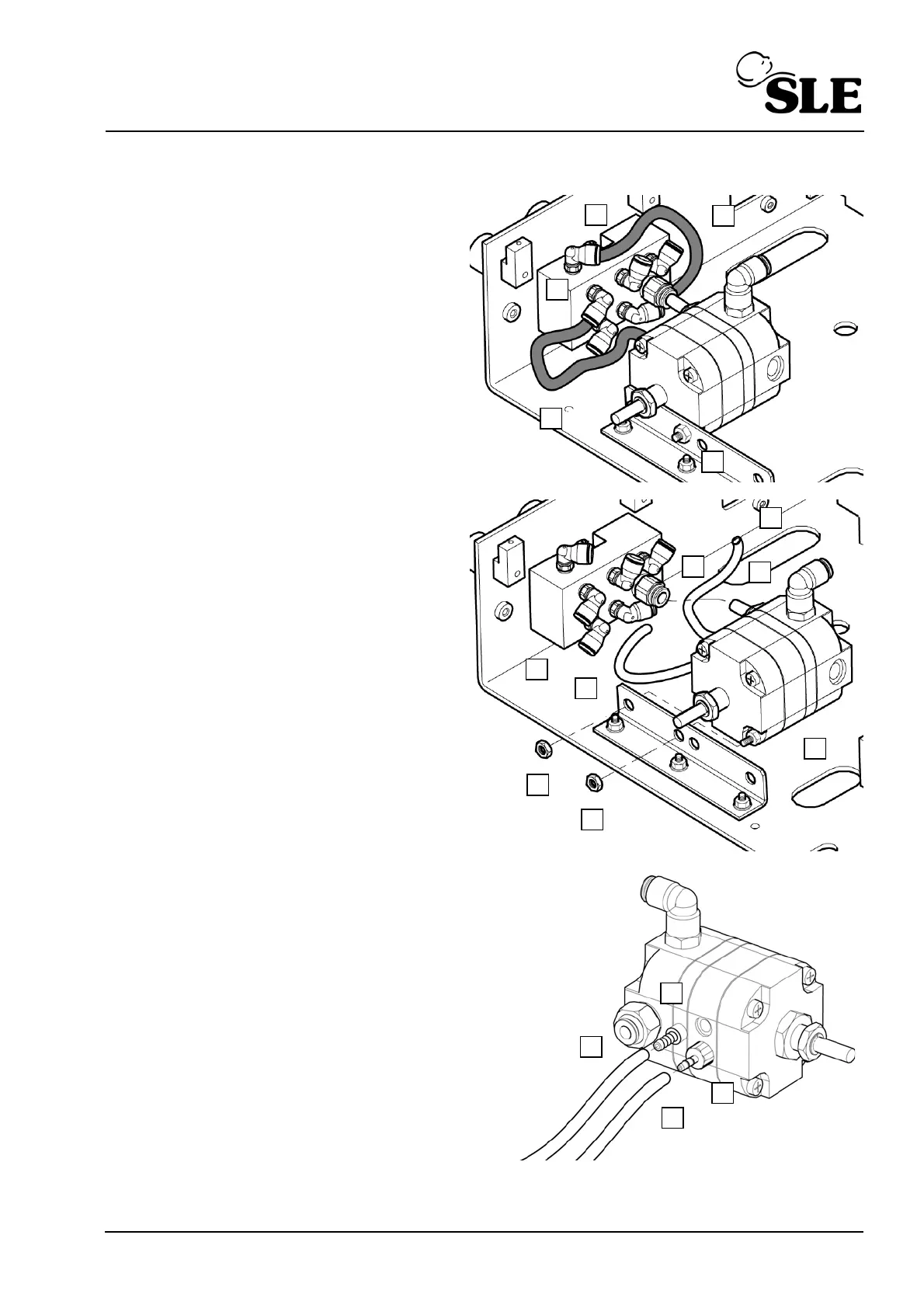

9.1.5 N0280/06 inlet oxygen pressure regulator
1. Disconnect the tube (A) from the inlet
manifold elbow (B).
2. Disconnect the tube (C) from the inlet
manifold elbow (D).
3. Remove the two fixing nuts (E).
4. Draw the regulator (F) from the exhaust
block (G) disengaging the tube (H) from
the fitting (I).
Note: the tubes (A & C) will be
discarded with the regulator.
5. Assembly is reversal of removal for the
original component.
5. For a new regulator connect new bleed
tubes (A & C) to the replacement oxygen
regulator bleed ports (J & K).
Tube length A = 210mm
Tube length C = 190mm
Note: Panel mount regulator shown.
Setup: Full system calibration is required
for this component.
B
C
A




D

E


G
F

I
E


E
H


A
C


J

C

K
A

